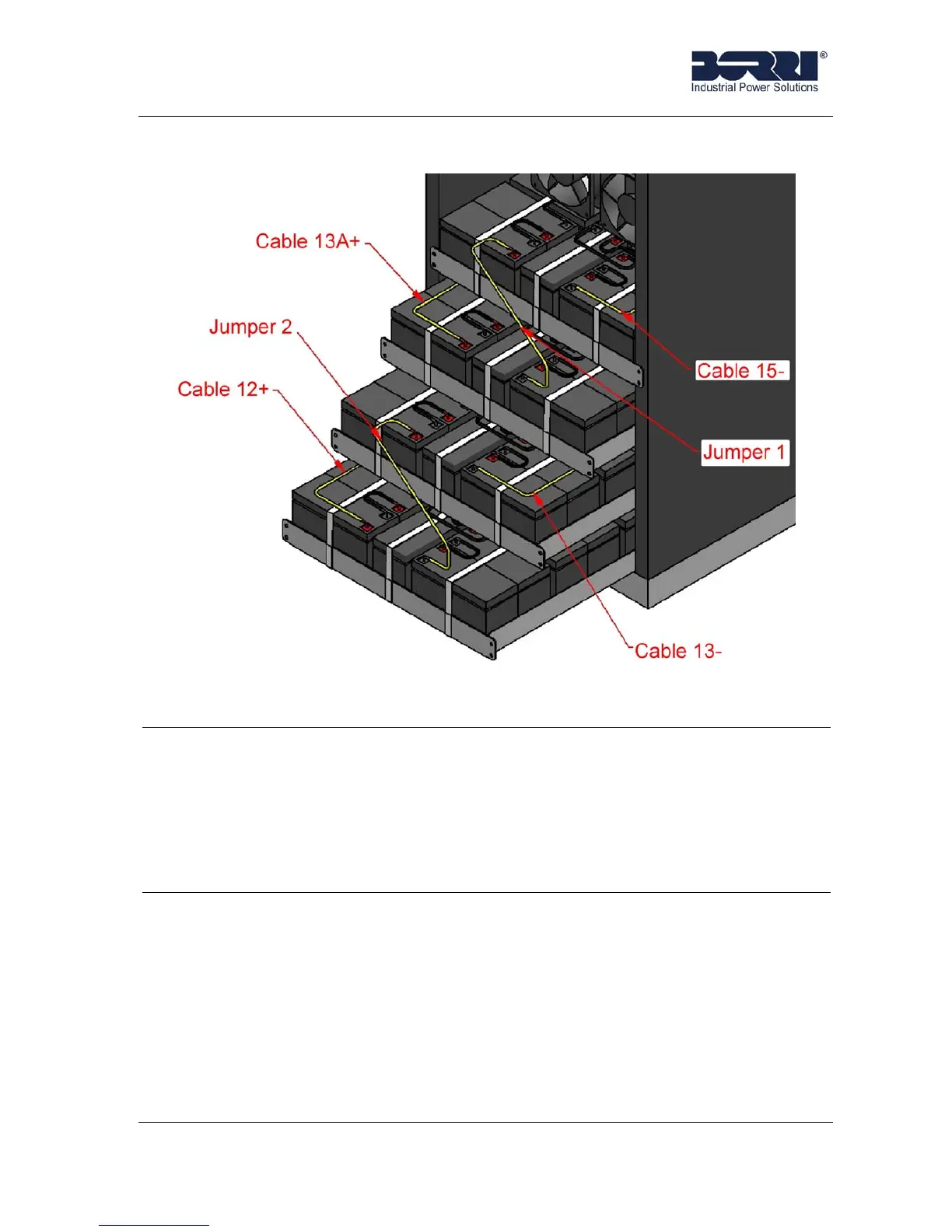

3) Connect the wires as shown on the picture 16.
Picture 16 – 7Ah/9Ah battery connection
WARNING
The cable terminations, for the connection to the battery trays, are marked with
BLACK PVC-sleeve for the connection to the negative pole and with RED PVC-sleeve
for the connection to the positive pole.
The termination of the cable 13- will be marked with BLACK PVC-sleeve and that of
the cable 13A+ with RED pvc-sleeve.
The termination of the cable 15- will be marked with BLACK PVC-sleeve and that of
the cable 12+ with RED pvc-sleeve.
