Ups general description & installation
Rev.D JSE410920 22/07/08 JUD408311
29 of 31
3.7.2 7Ah/9Ah/12Ah 12V battery connection and positioning
1) Remove the six screws to open the front cover and access the battery trays.
2) Remove the cardboard cover protection from the batteries, see picture 22.

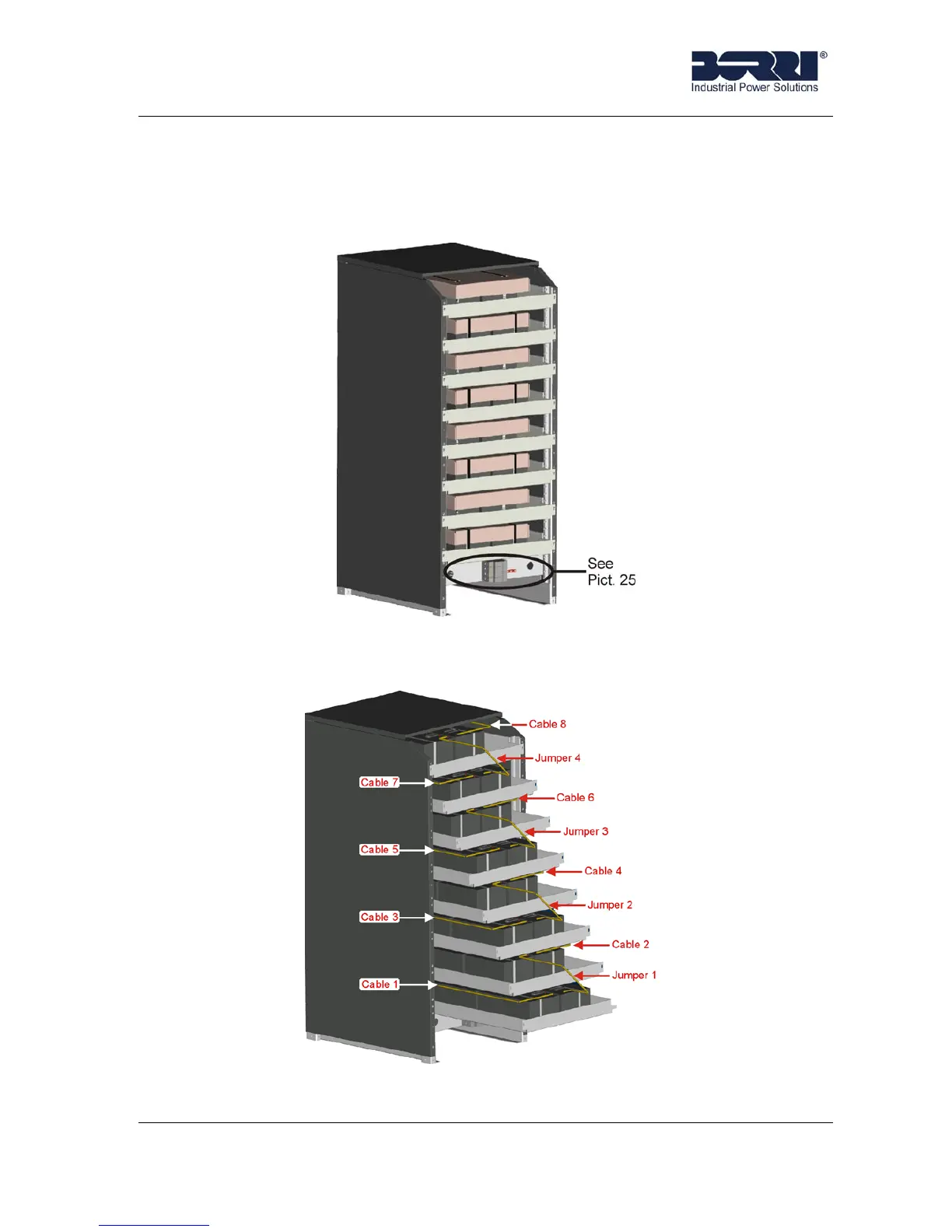

Picture 22 – Cardboard 7Ah/9Ah/12Ah battery protection
3) Connect the wires as shown on the picture 23.
Picture 23 – 7Ah/9Ah/12Ah battery connection
