Borri B8031 - UPS Menu Structure Diagram; Visualizing the UPS Menu Hierarchy

Front panel
Rev.B JSE410920 22/07/08 JUD408312
29 of 29
3.7 MENU STRUCTURE

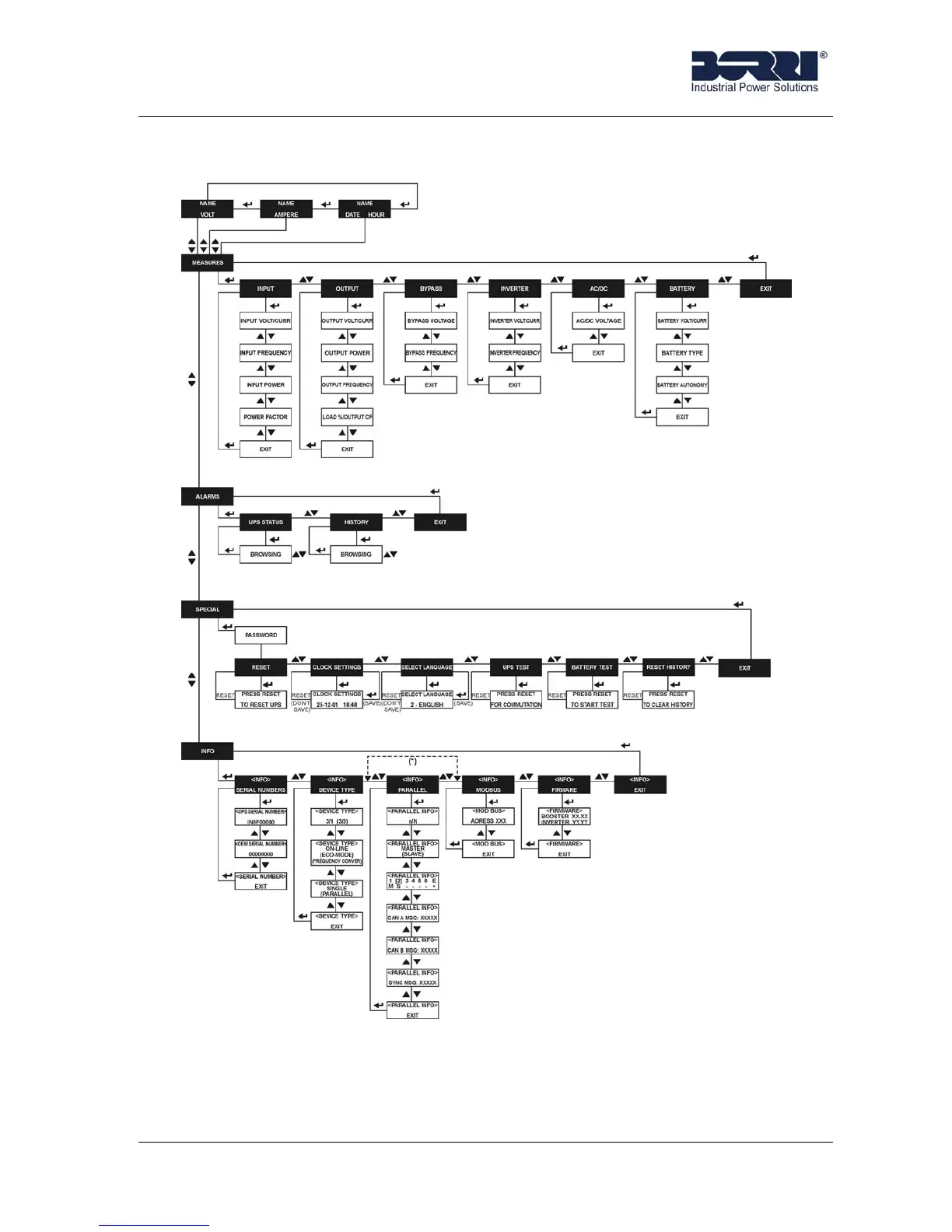

Picture 2 - Structure Menu
(*)The Parallel menu is active only of the UPS is in Parallel Configuration, otherwise
you can not see it on the LCD display.
