4.1 Installed positions and clearances
Housing: 19 in. rack module, protection category IP00 (EN 60529)
Weight: Approx. 8 kg (w/o expansion cards)
Installed pos.: Horizontal
Installation
type:
Installation premises to provide a min. of IP54 rating.

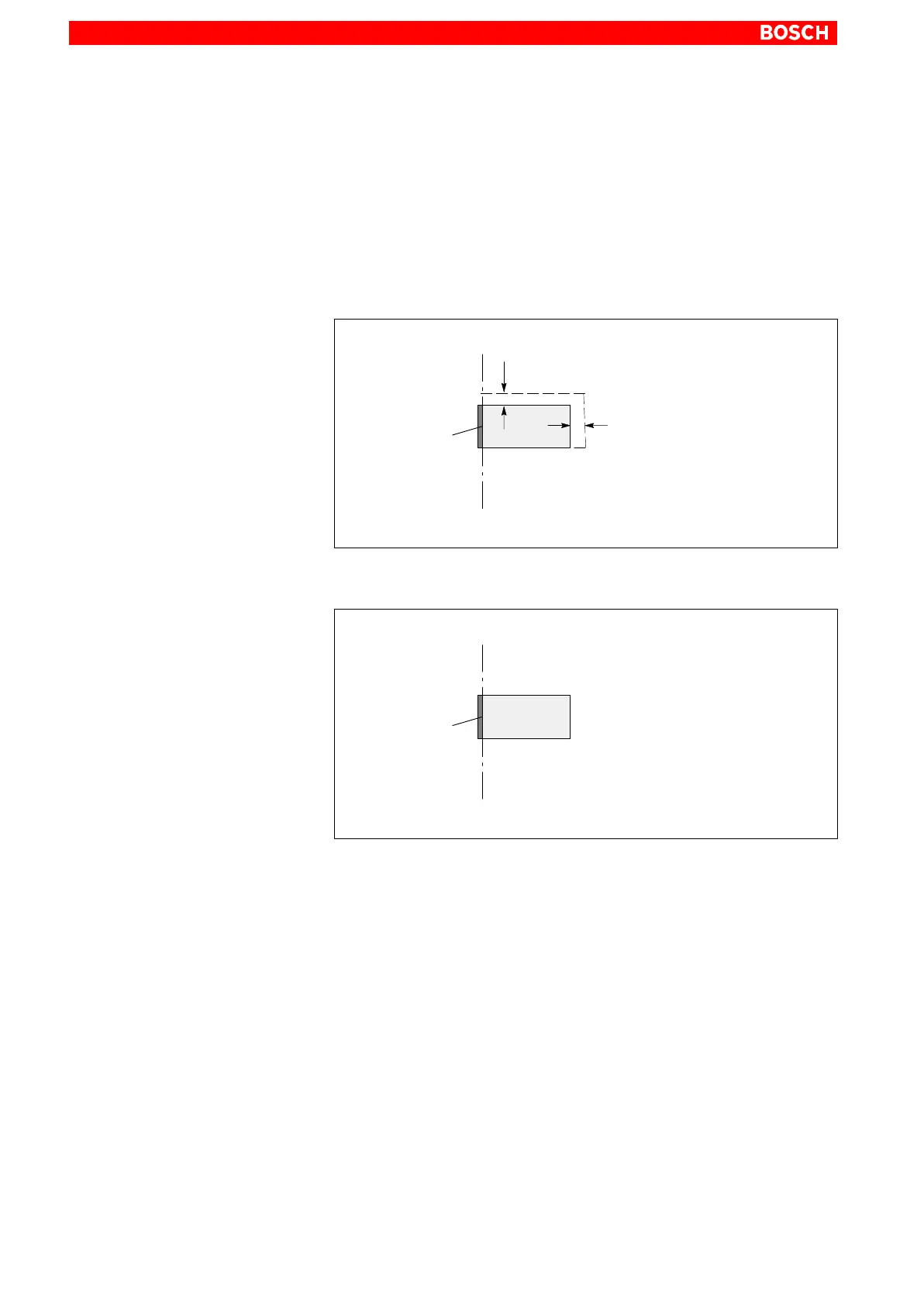

IPC installation clearances
Side clearance = 50 mm
Front =
Connection side
50 mm, Top
50 mm, Rear
IPC300 installation clearances
Side clearance = 50 mm
Front =
Connection side
. Please note that the integrated CD-ROM drive may be operated in a
horizontal position only. For this reason the IPC must be installed in a
horizontal position.
D When installing the IPC / IPC300, ensure that the connection side of the
respective unit remains easily accessible.
D Because it must be possible to verify the operating status of the unit at
any time, the LED displays must not be concealed in any way.
D Provide adequate ventilation, and ensure that cables are routed with a
minimum clearance of 50 mm (top, bottom and rear).
D Allow for connecting loops in all cable routings; provide strain relief for all
cables.
D Maintain suitably large distances from sources of interference.
