Installation
4–4
1070 073 822-104 (02.06) GB
IPC300
8.4
482.6 (= 19”)
445
465.9
37.7
57.2
132.5
Mounting hole
265.5
18.8
5 6
6.8

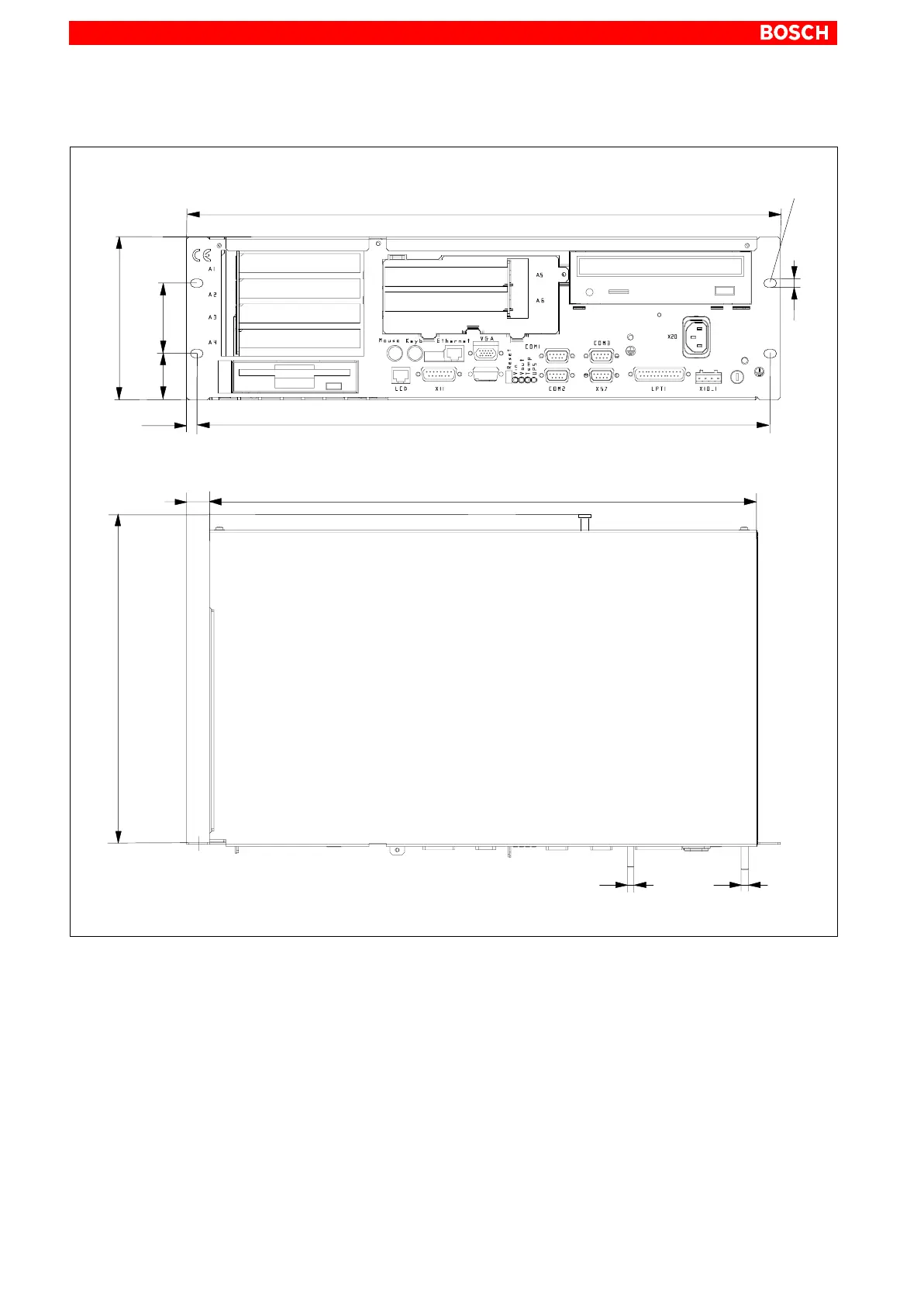

4.3 Installing IPC / IPC300 in mounting frame
L Construct a 19 in. mounting frame with fasteners for the 4 holes in the front
panel of the IPC or IPC300.
L Insert the IPC or IPC300 into the mounting frame from the front.
L Using 4 suitable mounting screws, attach the unit to the mounting frame.
