Interfaces, Ports & Connectors
6–19
1070 073 822-104 (02.06) GB

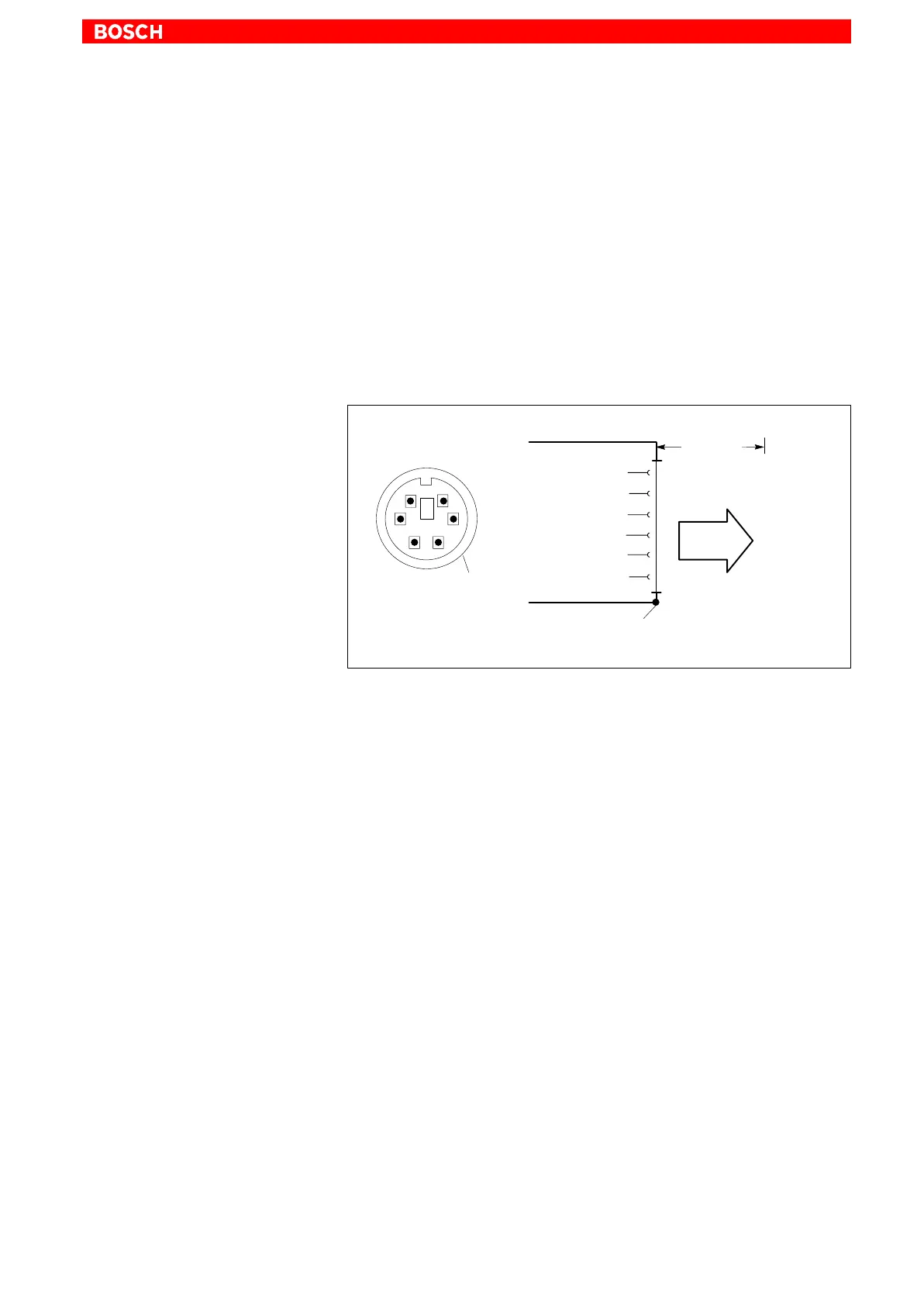

6.7 Keyboard connector
Keyb PS/2 mini DIN keyboard connector
. Use this connection only if no keyboard is connected to the “KBD” port
of the control panel. Otherwise, faulty keyboard operation may occur.
Female PS/2 mini DIN, 6-pin
Cable length: Max. 1.5 m
Cable type: Screened, min. cross-section 0.14 mm
2
BIOS preset:
(for “Keyb” or “KBD”)
System Keyboard: Present (IPC only)
1
2
3
Keyboard Clock
Keyboard Data
4
KBD
5
max. 1.5 m
Keyboard
GND
+5 V
KBD
Screen applied to metal shell of
DIN plug connector
Screen
21
4
3
6
6
5
If the system fails to recognize the keyboard, the interface in the BIOS may
have been set to “Absent”, i.e., “Not Connected”. Change the BIOS setting to
“Present” (IPC only).
Keyboard adapter
In the event that the MF2 keyboard is equipped with a standard 5-pin DIN
plug, you will require a keyboard plug adapter to a female PS/2 Mini DIN con-
nector.
A suitable adapter is approx. 20 cm in length with a DIN connector and a mini
DIN coupling on the ends. Connector assignment as per diagram below.
These premanufactured adapters are available from computer stores.
