Bosch Rexroth IPC - Application Software: Bosch PCL

Software
9–2
1070 073 822-104 (02.06) GB
9.3 Application software
The following Bosch application software options are available:
Application IPC IPC300
PCL Software PLC D D
rho4 Robot controller software D D
Typ3 osa CNC operating software D D
MADAP Systems operating and
Studio diagnostic software
D D
WinSPS PLC programming software D D
WinDP Field bus parameterization for
PROFIBUS-DP
D D
WinCan Field bus parameterization for
CAN bus
D D
TSWIN Programming interface for
operating terminals
D D
D = provided
9.3.1 Bosch PCL (software PLC)
The installation of the Bosch PCL Software PLC adds the capabilities of a
programmable logic controller to the IPC / IPC300. The Bosch PCL Software
PLC encompasses the following components:
D PCL expansion card for PCI bus
D Installation diskette with PCL application program

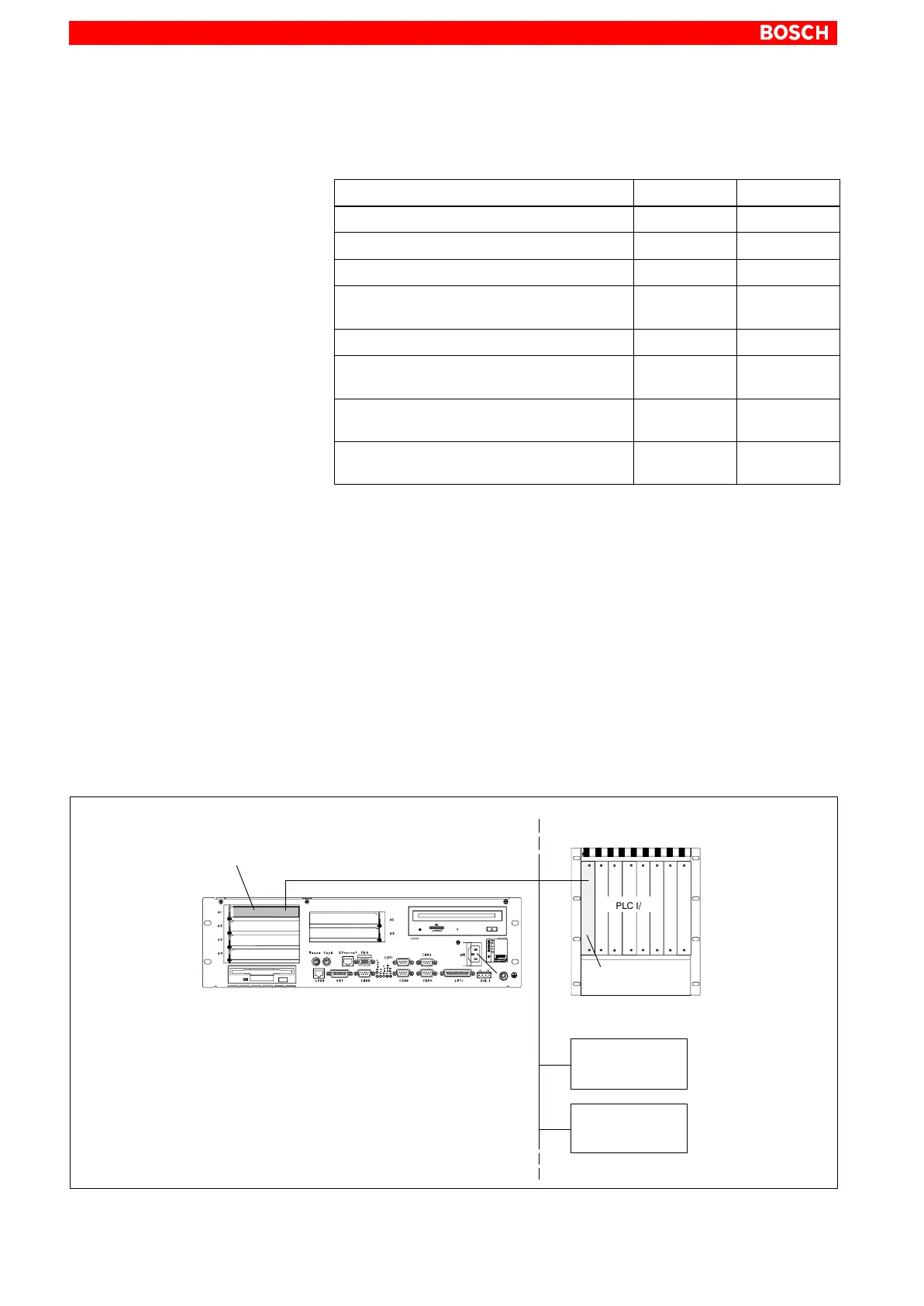

Interconnection
When connected to other PLC components (e.g., I/O rack) via a field bus
(PROFIBUS-DP, CAN, InterBus-S), the control panel/IPC becomes a full-
featured PLC controller.
ËËËËËË
PLC I/O
Profibus-DP
PCL expansion card
e.g.,
EG2/K expansion module for PLC
other PROFIBUS I/O devices:
D B ~ IO
K-DP16DO
D Decentr. I/O
RM65M-16DP
PROFIBUS-DP
RM4-DP or
RM2-DP
PROFIBUS-DP
Example:
