9.3.2 Typ3 osa (CNC operating software)
The IPC / IPC300 can be used in conjunction with Bosch BF2xxT, BF3xxT
control panels as an operating terminal computer for the Bosch Typ3 osa
controller series.
Interconnection
Communications between the operator interface and the Typ3 osa controller
utilize the TCP/IP protocol via the Ethernet connection between the IPC /
IPC300 and the osa master module of the controller.

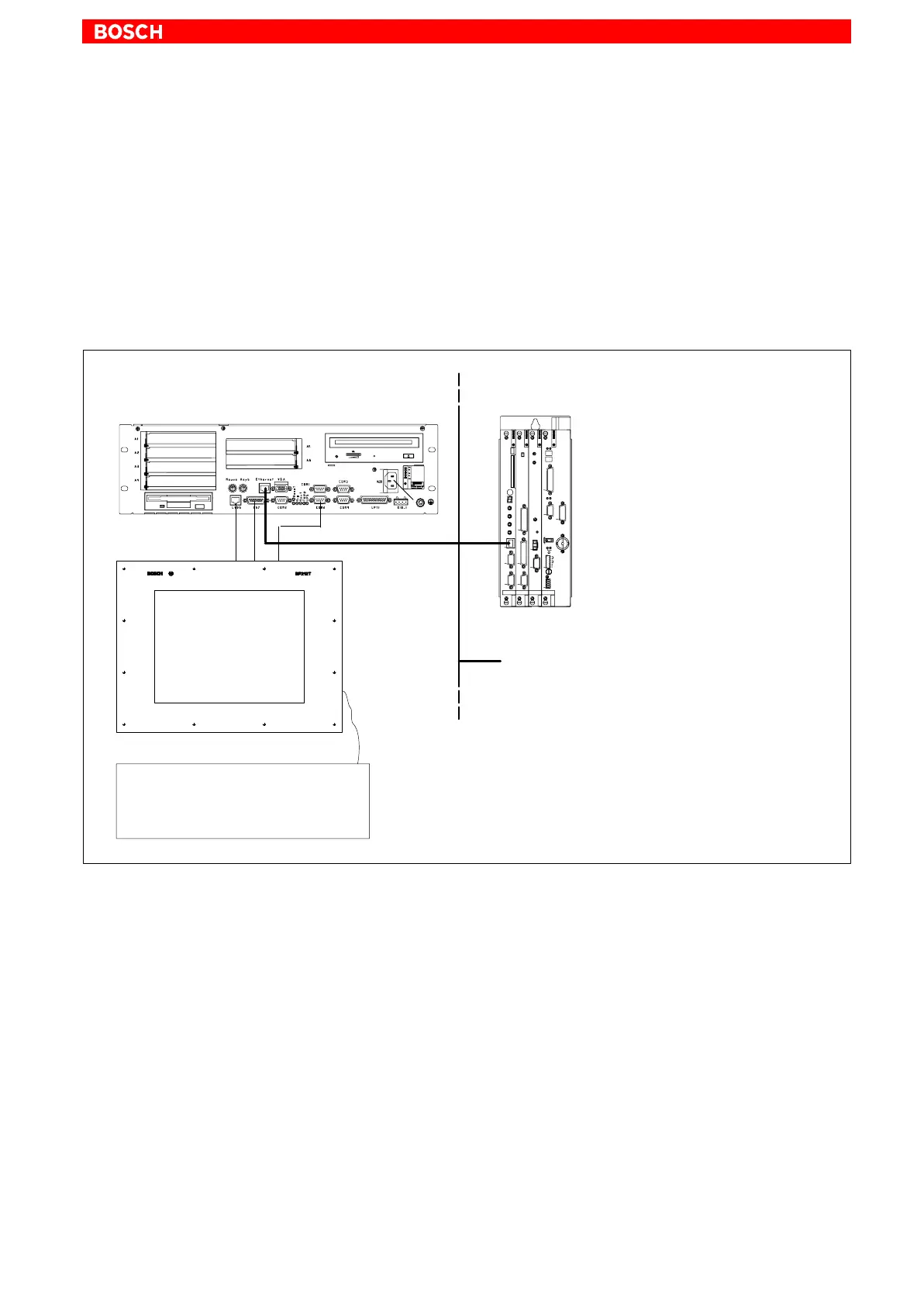

IPC / IPC300 with Typ3 osa operating
software
D
osa master L (w/ Ethernet connection)
D osa plc
D osa fms
D osa dc I/O
e.g.,
osa rack 4, containing
Ethernet
Typ3 osa controller
possibly other devices in
the Ethernet network
Ethernet
Ethernet network
BF2xxT or
BF3xxT
Keyboard
