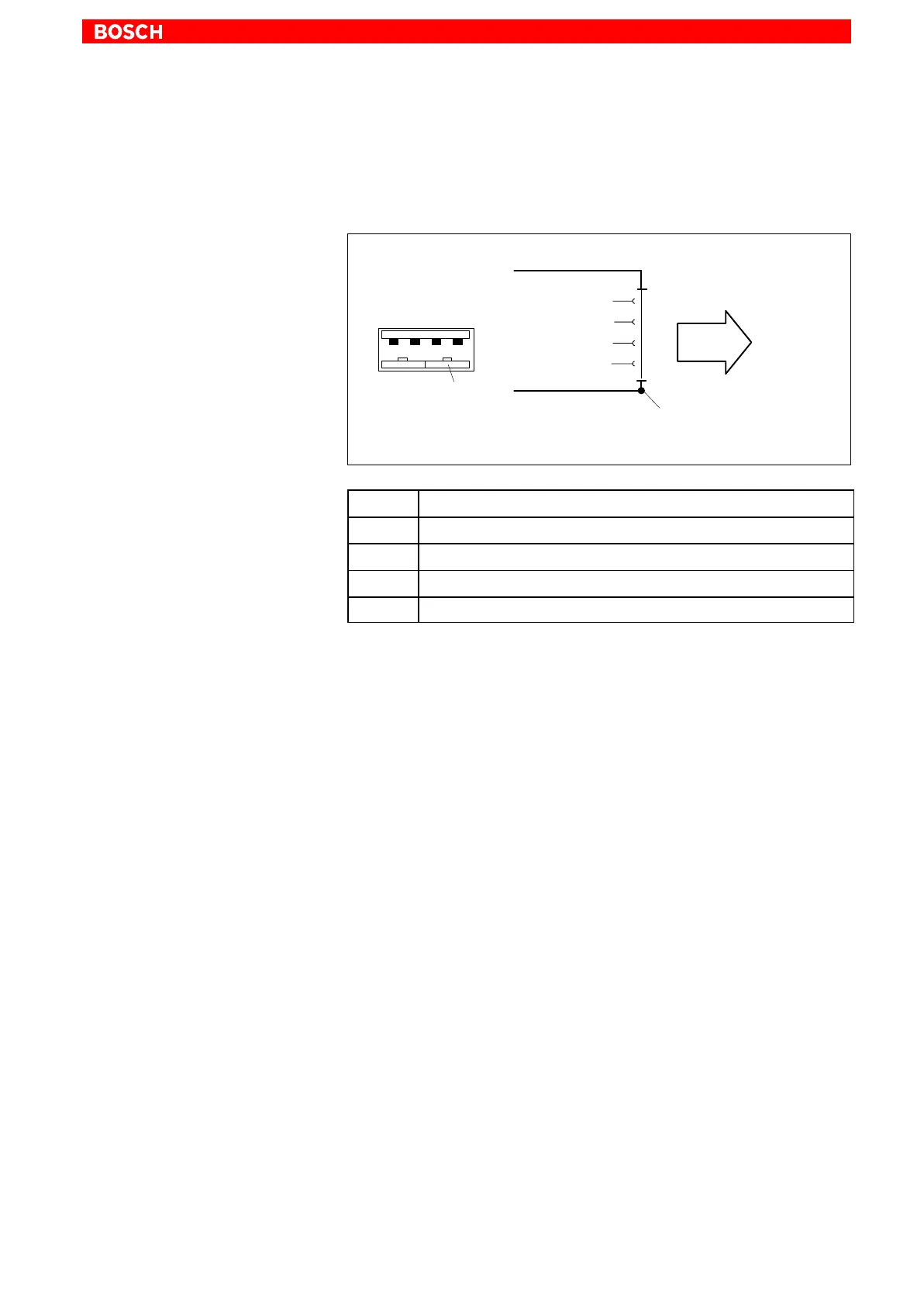

USB Serial interface (Universal Serial Bus), currently not supported
The USB interface provides for the connection of up to 128 devices equipped
with USB functions.
USB socket, 4-pin
1
2
3
USB_P
4
USB
USB device
USB2
USB_M
USB
Screen applied to
metal shell of connector
Screen
2143
USB1
PIN Signal
1 USB power supply (max. 500 mA)
2 Data –
3 Data +
4 USB Ground
