Interfaces, Ports & Connectors
6–14
1070 073 822-104 (02.06) GB

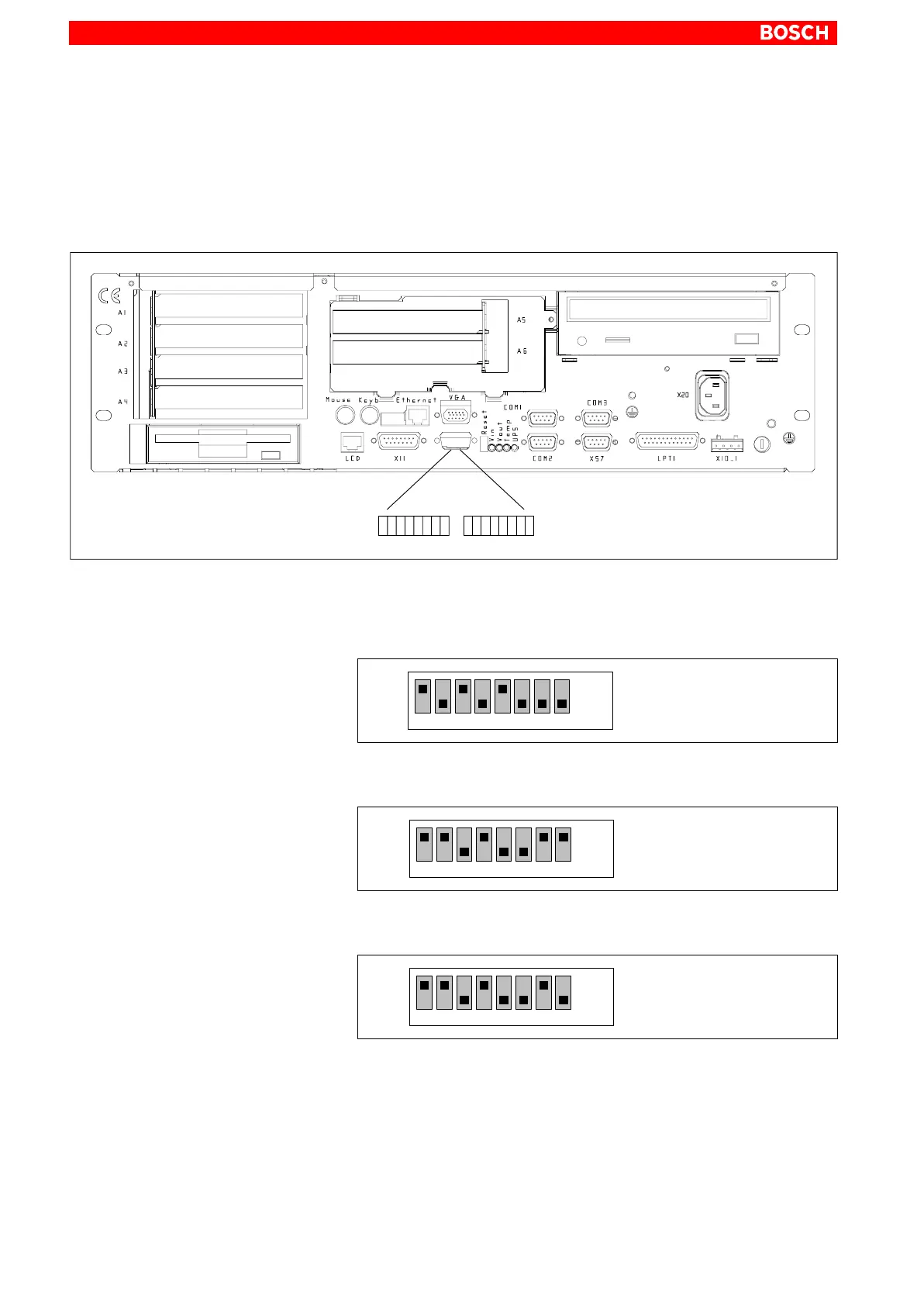

Setting screen resolution
The display resolution must be selected on the S1 DIP switch (refer to dia-
gram below):
D BF312T (12.1 in. colour display): 800 x 600 pixels
D BF315T (15 in. colour display): 1024 x 768 pixels
(factory presets)
S1 S3
Changes are made on the externally accessible switch segments 1 though 8
of the S1 DIP switch:
D 800 x 600 pixels
1 2345678
OFF
ON
S1
D 1024 x 768 pixels
(IPC300 with Pentium I / 266 MHz)
1 2345678
OFF
ON
S1
(factory setting)
D 1024 x 768 pixels
(IPC300 with Pentium III / 400 MHz)
1 2345678
OFF
ON
S1
(factory setting)
