4 Installing
4.1 Mounting the device on a mounting rail
The controller can be attached on a standard 35mm (1.377in.) mounting rail using a snap-in
mechanism. Attach the controller into the upper edge of the mounting rail [1], then push
down the device and snap it onto the rail by pushing it towards the back [2].
1 2

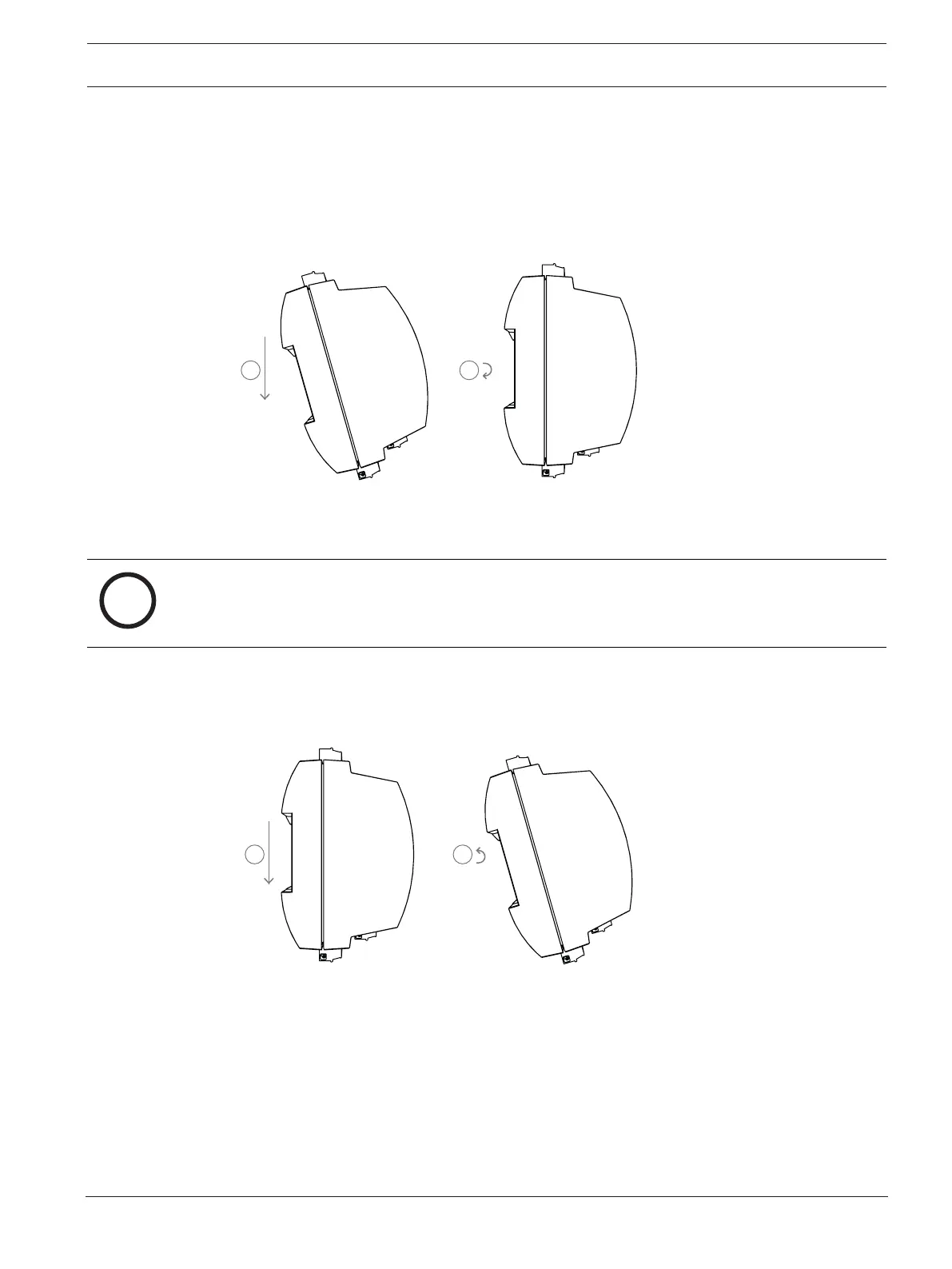

Figure4.1: Mounting the controller on a mounting rail
4.2 Unmounting the device from a mounting rail
i
Notice!
To remove the controller from a mounting rail, first remove all pluggable connectors.
Push down the controller until the lower edge snaps out of the mounting rail [1]. Pull the
lower end of the controller from the mounting rail [2].
1 2
Figure4.2: Unmounting the controller from a mounting rail
