11 Appendices
11.1 Connecting diagrams
RS485 Host
RS232
Ethernet RJ45
1 2 3 4 5 6
1
2
3
4
5
6
7
8
9
10
8 4 1

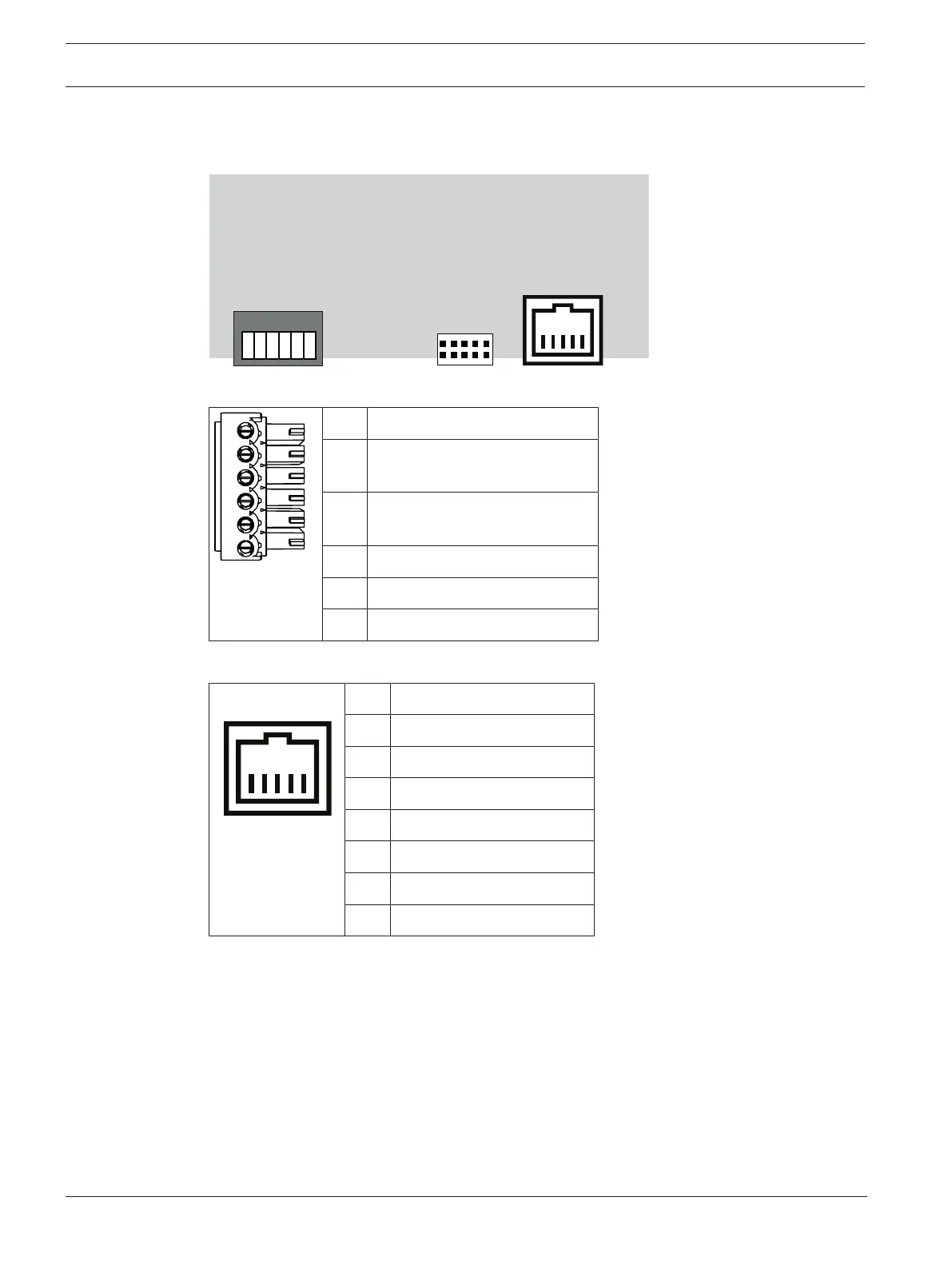

Figure11.1: Connectors on upper PCB
1 Shield
2 Data RxTx+ (2-wire)
Data Rx+ (4-wire)
3 Data RxTx- (2-wire)
Data Rx- (4-wire)
4 Ground (PAG)
5 Data Tx+ (4-wire)
6 Data Tx- (4-wire)
Tab.11.4: RS-485 host on upper PCB
8 4 1
1 TXD+
2 TXD-
3 RXD+
4 Not connected
5 Not connected
6 RXD-
7 Not connected
8 Not connected
Tab.11.5: Ethernet Network socket (RJ45)
