4.10 RS-485 for extension modules
The RS485 Extension Module Bus expands the AMC2 with additional I/O modules
(AMC2-8IOE, AMC2-16IE, AMC2-16IOE).

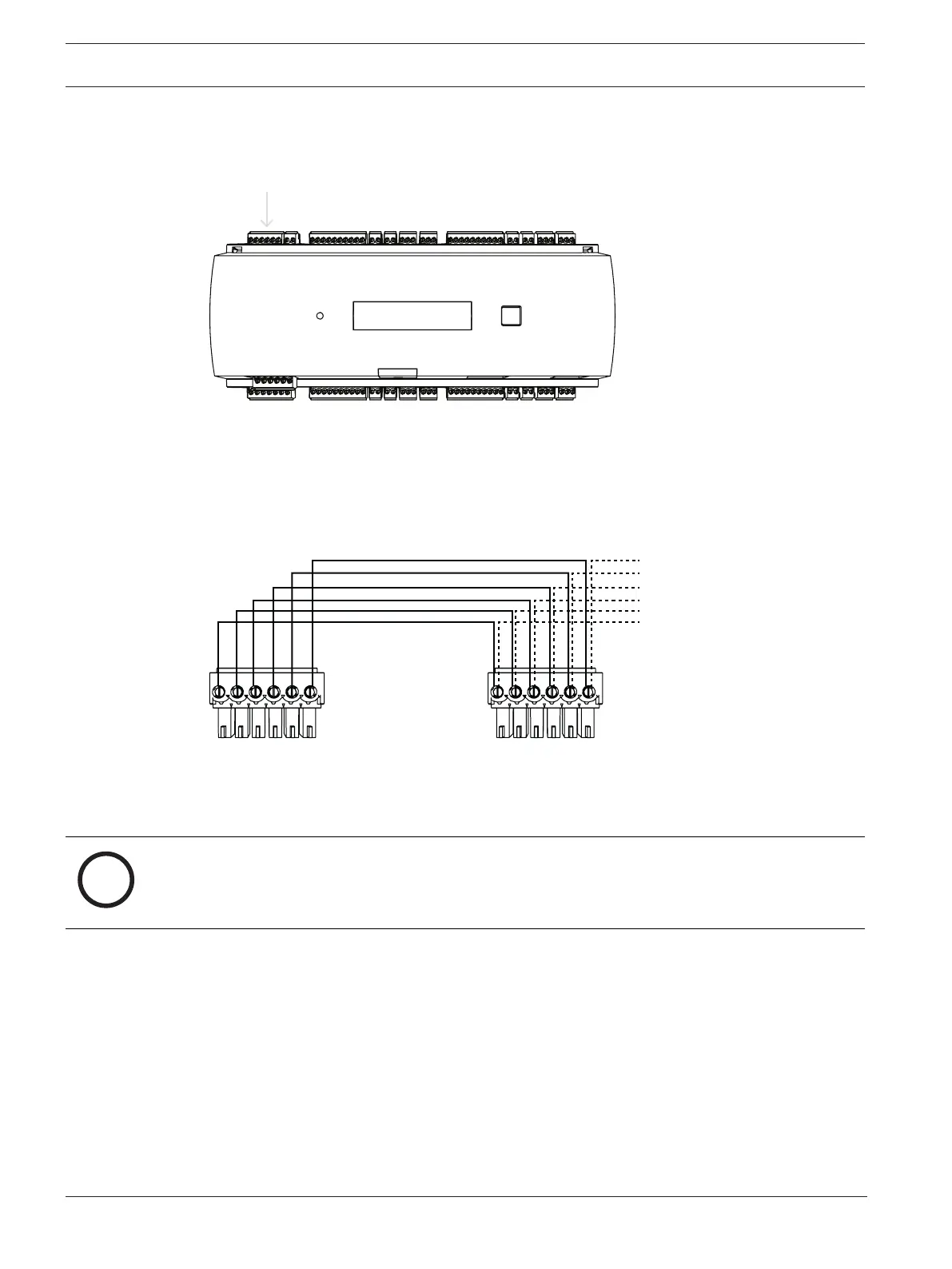

Figure4.14: Location of the RS-485 extension module bus
Up to three expansion modules can be connected to provide additional in- and outputs, for
example, for elevator control.
You can find further information about the extension boards in their installation manuals.
A complete connection diagram of the RS485 extension module bus is shown in the chapter
Connecting diagrams.
1 2 3 4 5 6 1 2 3 4 5 6
AMC2 AMC2 ...-EXT
Figure4.15: Connection of an extension module to an AMC2
i
Notice!
The address of the board is set using a switch on the board’s underside (see Equipment
Configuration).
The extension boards are assigned the addresses 1 to 3.
