Delivery status

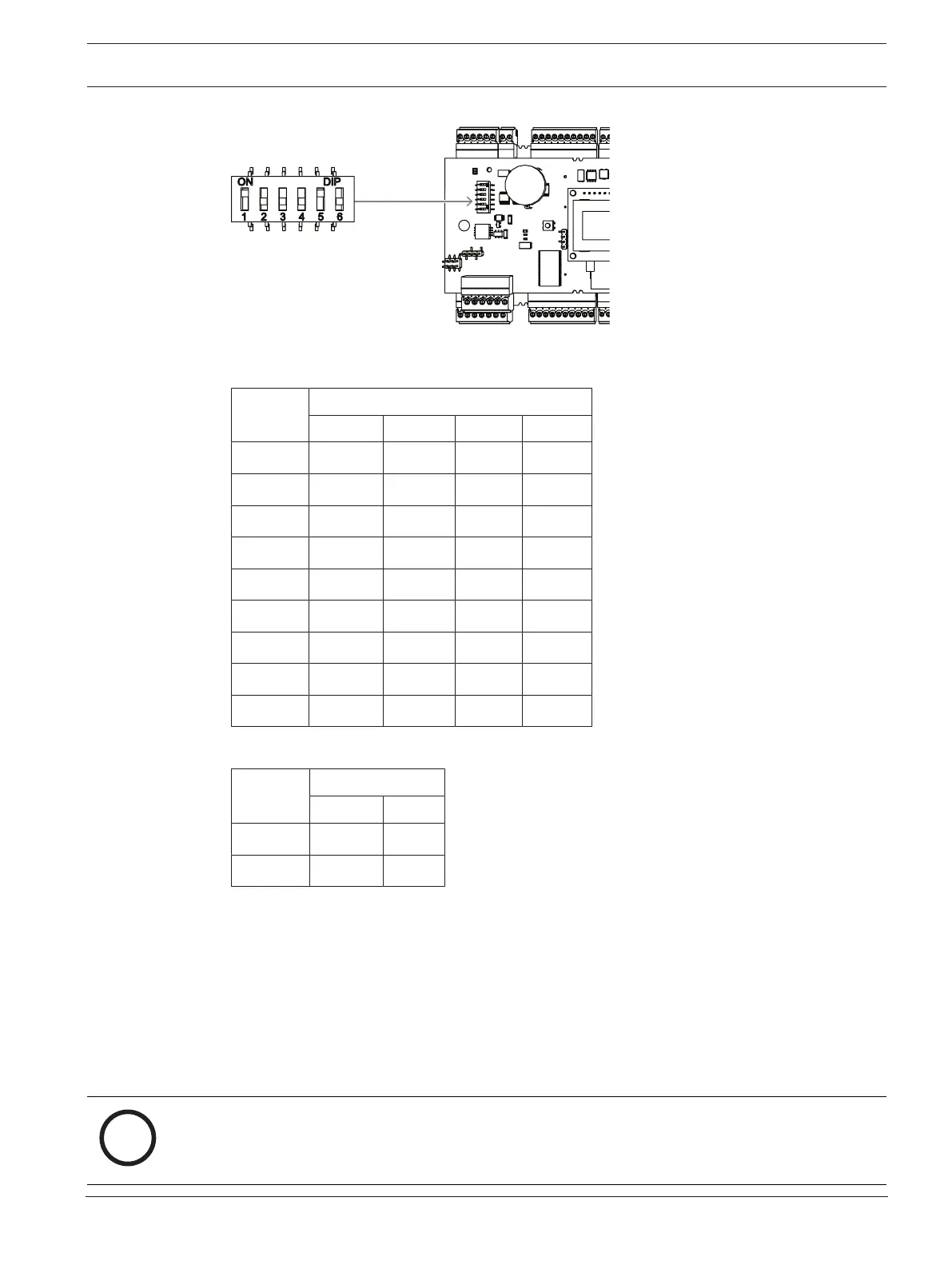

Figure4.13: Location of the selector for host settings
Address
DIP switches
1 2 3 4
none OFF OFF OFF OFF
1 ON OFF OFF OFF
2 OFF ON OFF OFF
3 ON ON OFF OFF
4 OFF OFF ON OFF
5 ON OFF ON OFF
6 OFF ON ON OFF
7 ON ON ON OFF
8 OFF OFF OFF ON
Tab.4.1: Setting the address via the DIP switch
Mode
DIP switches
5 6
ON SDEB PI
OFF BPA RS-485
Tab.4.2: Protocol and connection settings
Host settings
Instructions for DIP switch 5
Set SDEB (= DIP switch 5 to ON) in the following cases:
– Ethernet host connection
– RS-485 host connection, provided only one AMC2 is connected on the bus.
Set BPA (= DIP switch 5 to OFF) in the case of an:
4 RS-485 host connection with more than one and maximum eight AMC2s per bus.
i
Notice!
Changing the type of the host connection requires a reset of the AMC2 - see Resetting the
software, page 40 .
