Description of the AMC-4W Access Controller AMC-4W
16 Installation Guide Bosch Security Systems | V.3.1/2006-09

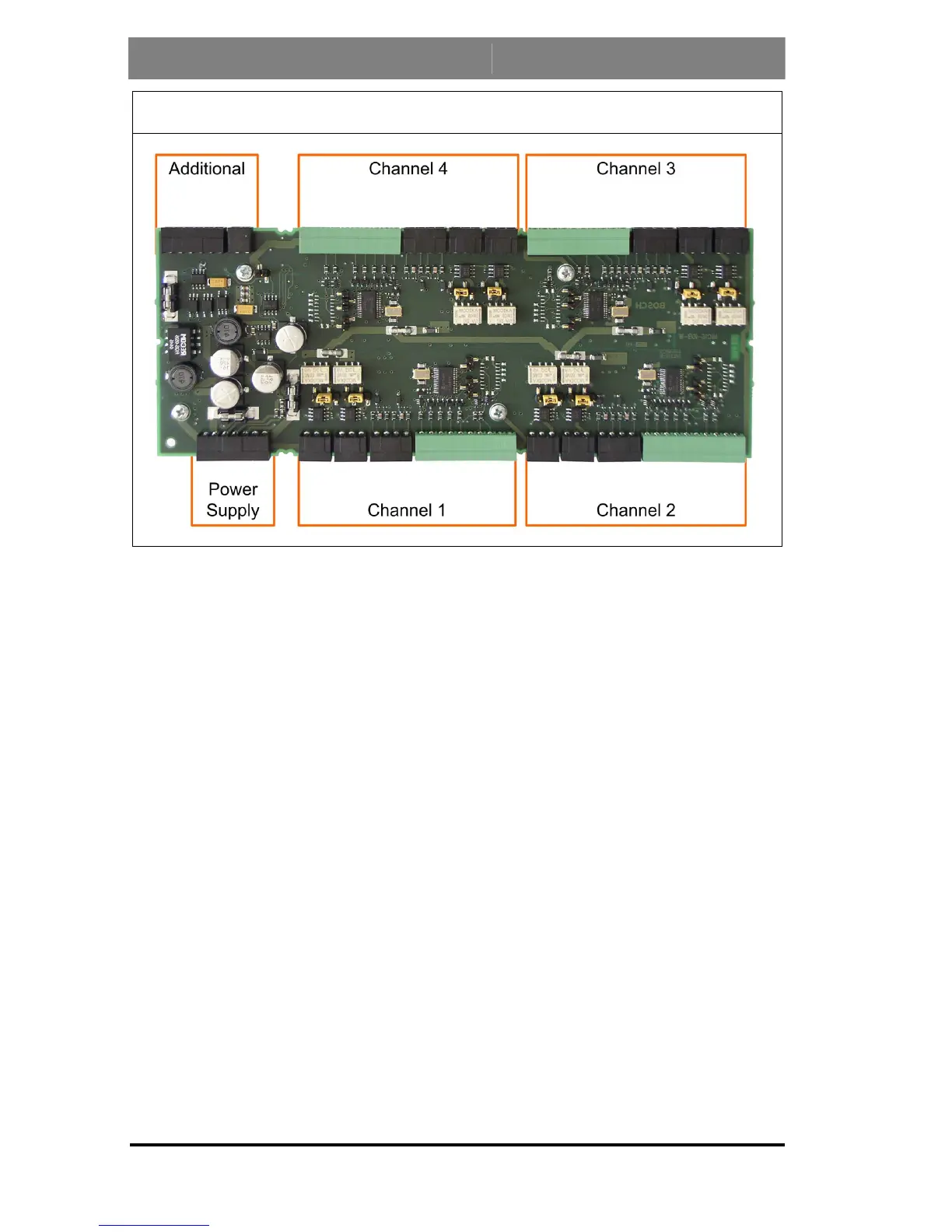

Figure 5: Lower circuit board connections (bottom side)
3.2. Performance Characteristics
- Host address selectable via DIL sliding switch
- Four possible configurable host interfaces:
- RS485 2-wire
- RS485 4-wire
- RS232
- Ethernet 10/100 Mbit/s
- Four peripheral input devices via Wiegand interface
- Eight relay outputs
- potential-free or
- with internal power supply
- Eight analog inputs with internal power supply
- Battery buffered SRAM and real time clock (RTC)
- Pluggable Compact Flash from 64 MB to 1024 MB
- Connector for LC Display
- Transfer rate host interface RS485: 38,4 kBit/s
- Wiegand interface
- Self controlling transfer-receive-switching
