1 695 655 779 2010-11-9| Robert Bosch GmbH
26 | WBE 4140 | WBE 4140en
2. WBE 4140
651046-01_Mi
3
4
5
6
8
7
10
9
11
2
12
14
13
15

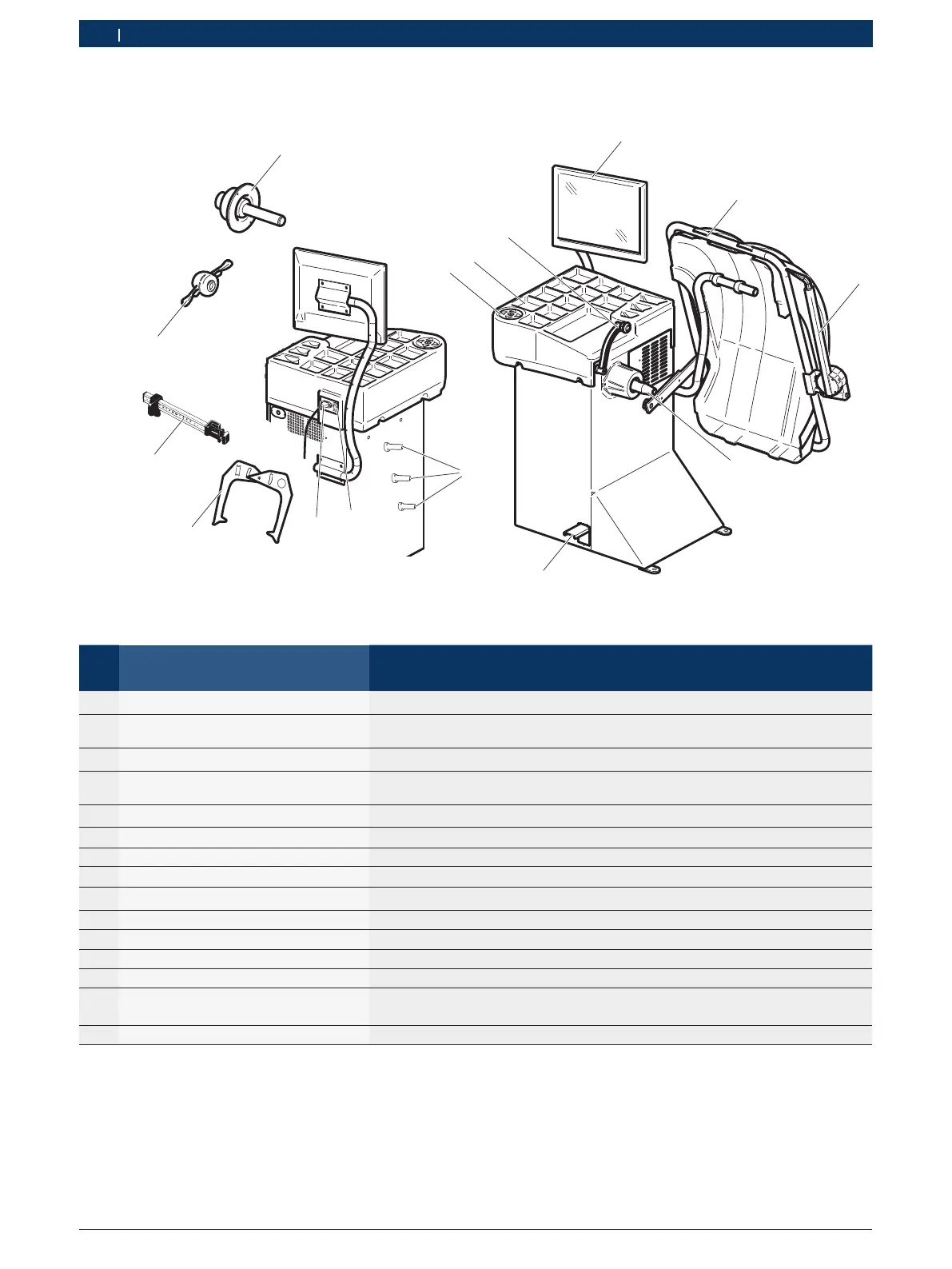

Fig. 1: WBE 4140
Item Designation Function/purpose
1 TFT monitor Software display (measured values and operating instructions)
2 Wheel guard
R Protection of operator against flying particles (e. g. dirt, water).
R Starting and stopping measurement, refer to Section 8.3.3.
3 Gauge arm (accessory) Determination of rim width
4 Vernier caliper (electronic) R Recording of rim distance and rim diameter.
R Determination of positions for attachment of adhesive weights.
5 Cone of drive shaft Flange mounting.
6 Pedal Locking of shaft / wheel.
7 Control panel Operation of WBE 4140, refer to Section 7.3
8 Tray For storing balance weights and accessories.
9 Mains socket Connection for power cord.
10 On/off switch Switching WBE 4140 on and off.
11 Centering flange Wheel attachment.
12 Quick-action clamping nut Centering and attachment of wheel on cone.
13 Manual vernier caliper Can be used as substitute if the electronic vernier caliper is defective.
14 Measuring compasses Can be used as substitute if the rim width and rim diameter cannot be recorded
electronically.
15 Clamping tool holders For storing accessories.
