Bose PANARAY System

36

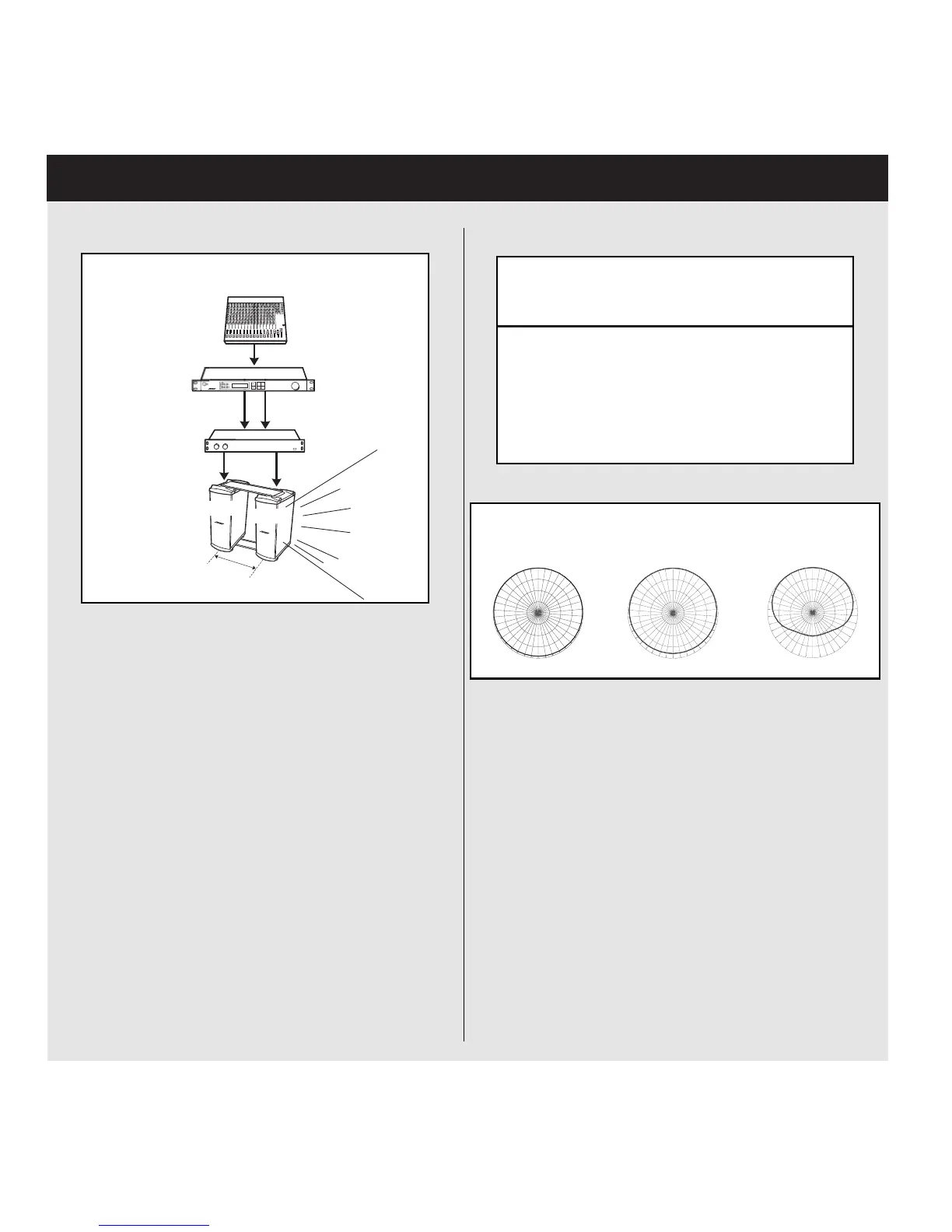

12.1 Bass Array Setup and Connections
Stereo Bank
802 Full Range
PANARAY D I
G
ITAL
S
Y
S
TEM
CO
NTR
O
LLER
PRESET
LIMIT
UTILITY
DELAY
Bose
®
Components:
1PANARAY
®
system digital controller
1 Bose 1800-VI power amplifier
2 2x endfire bass array brackets (top and bottom)
2 MB4 modular bass loudspeakers
Spacing:
In order to effectively create the MB4 2x endfire
bass array, each unit must be spaced 23" (58.4 cm)
on center from each other). This is shown in the
illustration above. IF THE UNITS ARE NOT
SPACED PROPERLY THE BASS ARRAY WILL
NOT WORK.
Note: All EQ and delay settings are already set in
the PANARAY system digital controller. In order for
the bass array to work, you must connect the MB4
units to the appropriate outputs on the controller
and apply the proper spacing. The output assign-
ments are listed to the right.
MB4 2x Endfire Bass Array
Out 1
Out 2
MB4 1
MB4 2
0
90
180
270
40Hz
0
90
180
270
63Hz
0
90
180
270
125Hz
MB4 2x Endfire Horizontal Octave-Band Polar Data
23"
(58.4 cm)
This array fires from the end of the second MB4
speaker to provide the dispersion shown above.
)zH081dnazH082(yarrassaberifdnex44BM
YARANAP

tuptuorellortnoclatigidmetsys
1HC)1(4BM
2HC)2(4BM
3HC)3(4BM
4HC)4(4BM
