Boss BR-1600CD - Front Panel

34
Panel Descriptions

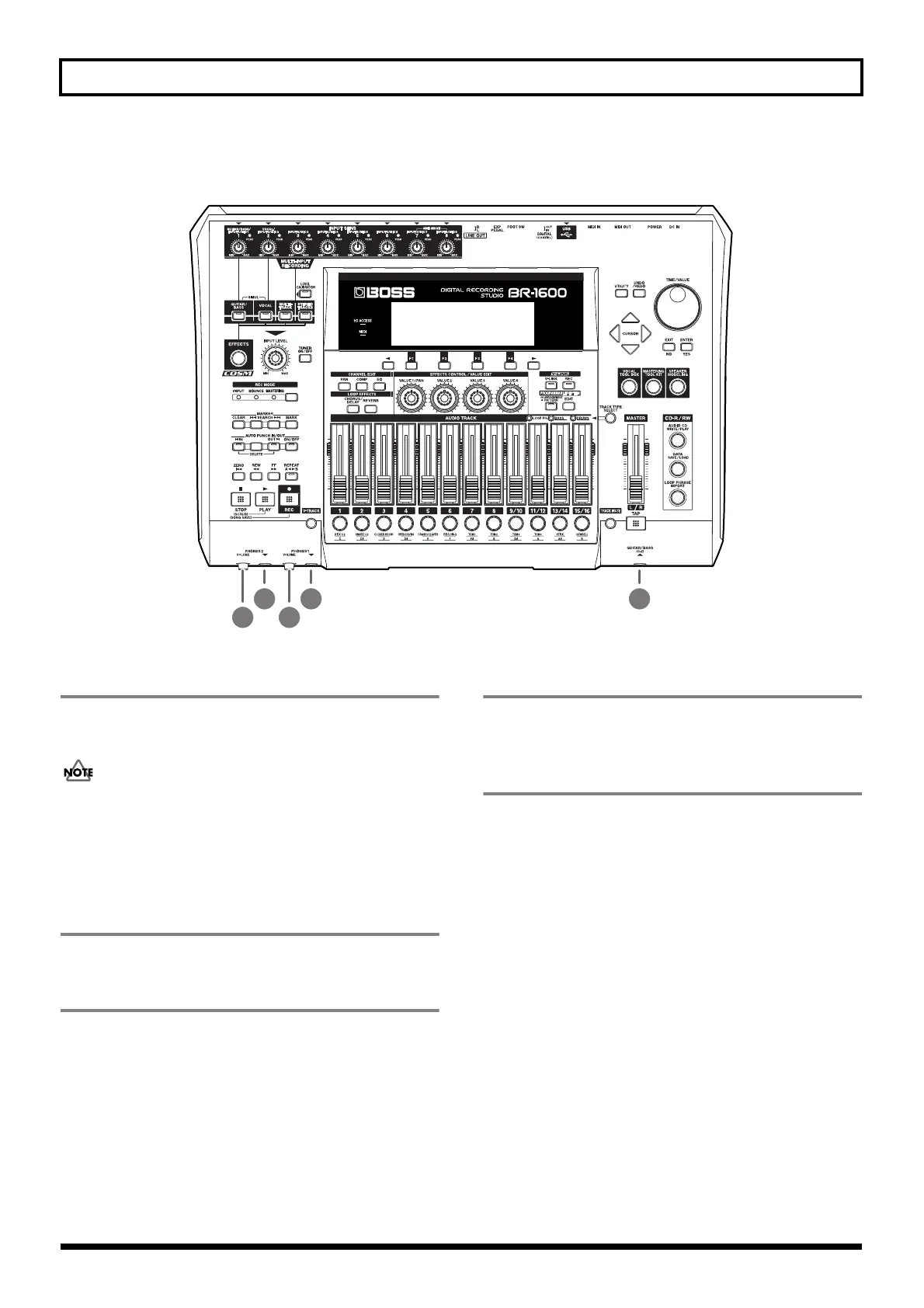

Front Panel
fig.05-05
1. GUITAR/BASS jack
This high-impedance input jack is used to directly connect
guitar or bass.
The INPUT 1/MIC 1 jack (or XLR connector) and the
GUITAR/BASS jack share the same internal circuitry,
and when a connection has been made to both of these
input jacks, the GUITAR/BASS jack will be selected
automatically.
2. PHONES 1 jack
Use this jack to connect separately sold headphones.
3. PHONES 1 VOLUME knob
Adjusts the volume for headphones connected to the
PHONES 1 jack.
4. PHONES 2 jack
Use this jack to connect a second set of separately sold
headphones.
5. PHONES 2 VOLUME knob
Adjusts the volume for headphones connected to the
PHONES 2 jack.
12
3
4
5
