Implanting the DBS System
Surgical Implant Manual
92495783-02 Page 29 of 1157
3. Hold the OR Cable and DBS Lead as shown in Figure 12. Press down on the button to open
the OR Cable Connector. Keep the button depressed.
4. With the Lead Stylet in place, slide the OR Cable Connector onto the proximal end of the DBS
Lead (Figure 12). Make sure that the DBS Lead is fully inserted. The OR Cable Connector will
stop when the DBS Lead is fully inserted.

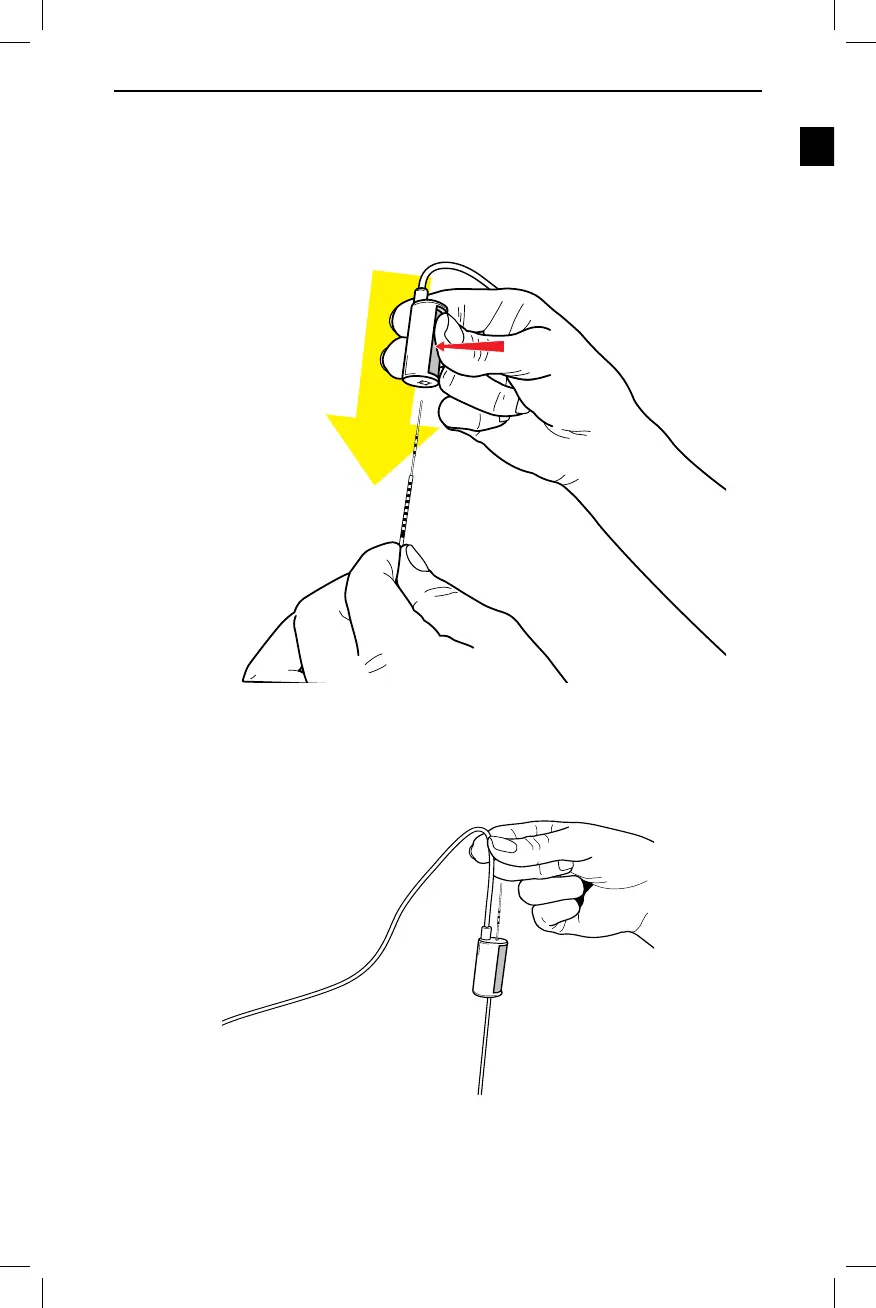

Figure 12. Depress Button on the OR Cable Connector to Connect OR Cable to DBS Lead
Note: The Lead Stylet will extend through the back hole of the OR Cable Connector when the
DBS Lead is fully inserted as shown in Figure 13.
Figure 13. OR Cable Connected to DBS Lead
