Implanting the DBS System
Surgical Implant Manual
92495783-02 Page 49 of 1157
en
2. Connect the right hemisphere Extension to Port R2.
a. For bifurcated Lead Extension (DB-3128): Connect the tail with no marker band to the port
labeled R2 (Figure 40).
R2

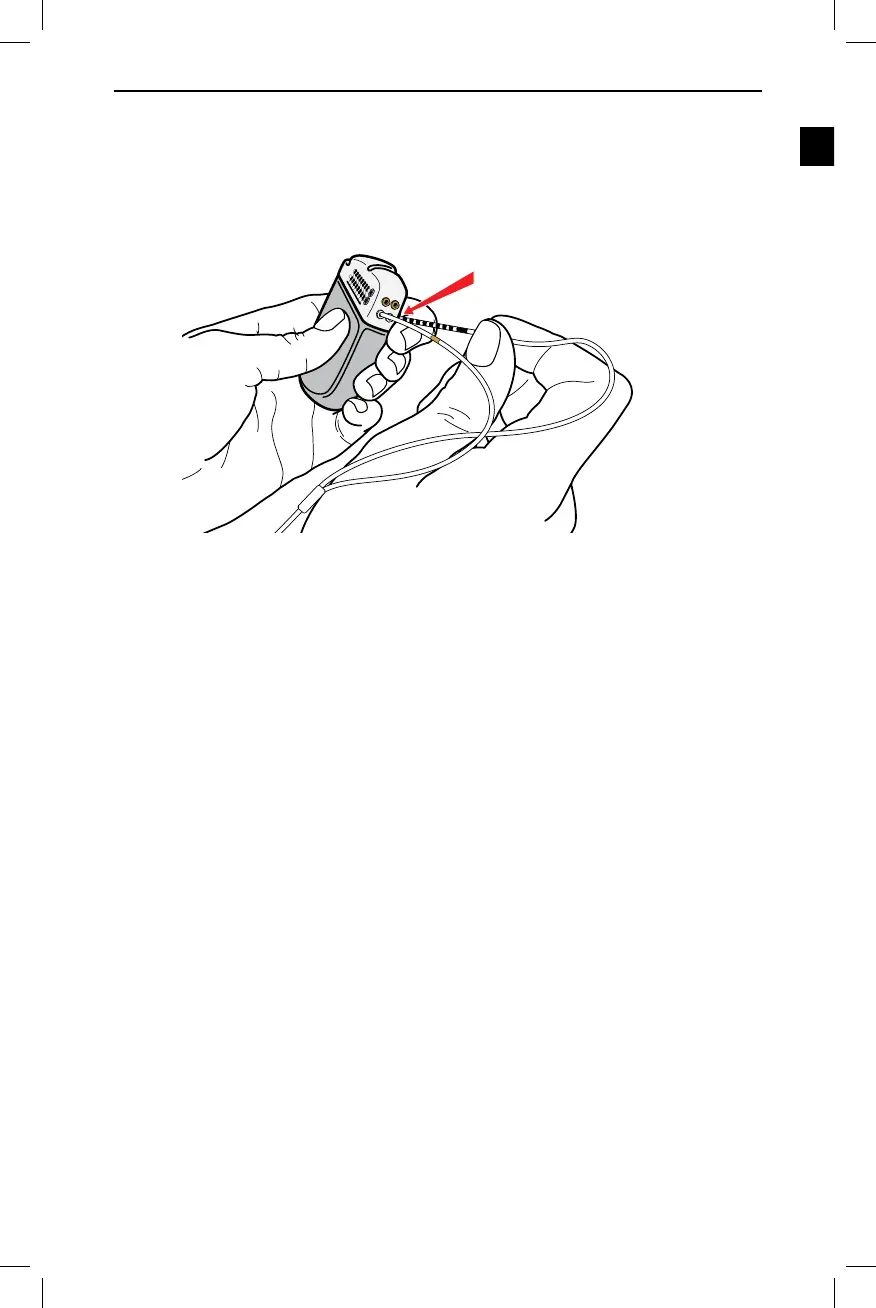

Figure 40. Connection to IPG Port R2
