Flight control system user manual 󾗕Agriculture

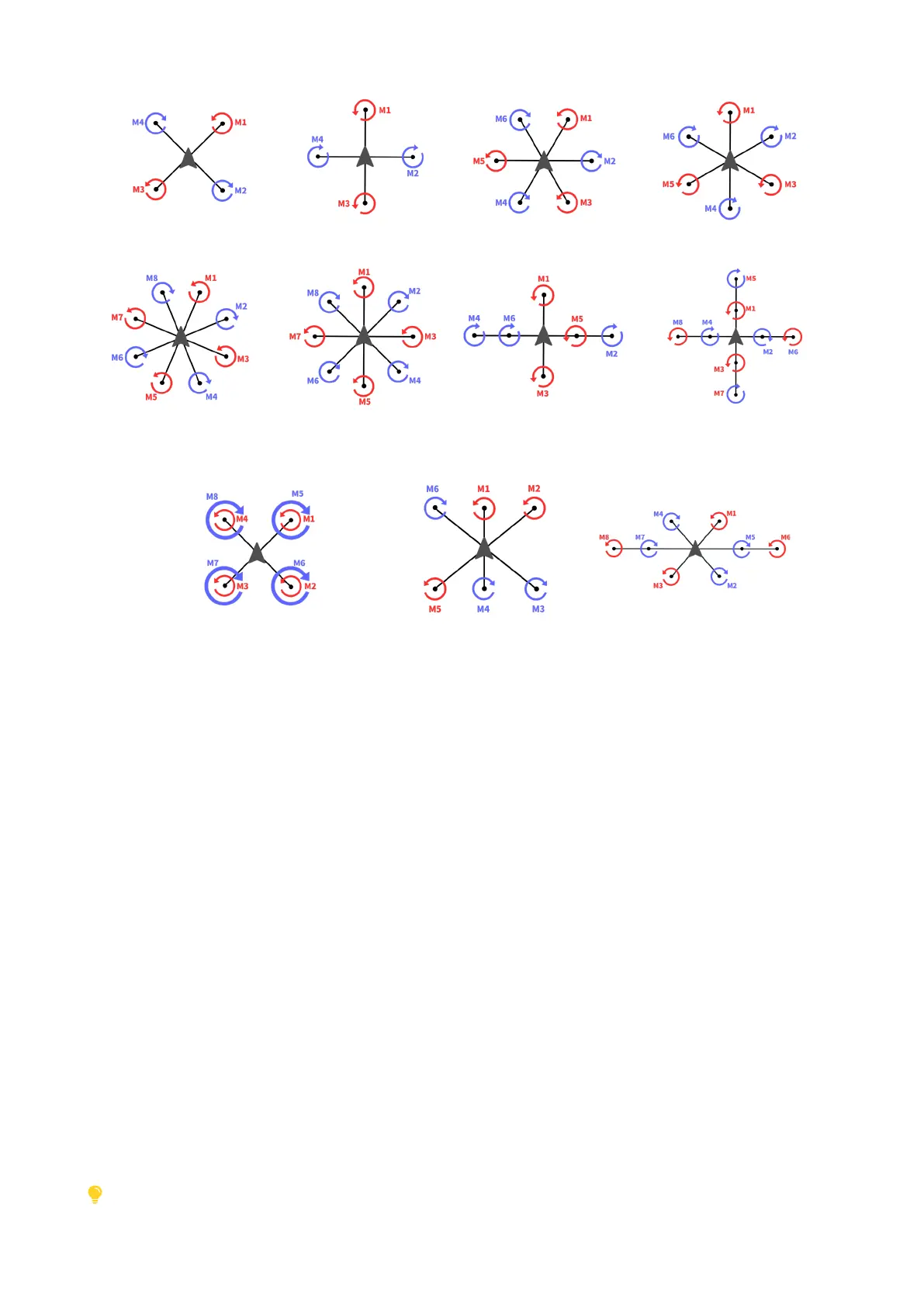

X type 8 motor + type 8 motor Isomeric 4+2 motor + type 8 motor

X type 4 coaxial 8 motor

1-4 on top, 5-8 on bottom

Isomeric 3+3 motor Isomeric 4+4 motor

Enter the installation settings options in Settings—Rack Type:

1. Flight control installation direction: The installation direction of the main control, the nose of the

aircraft is based on the direction of the satellite navigation module;

2. Maximum attitude angle: limits the maximum attitude angle of the aircraft during 󽗊ight;

Since the satellite navigation module has a built-in compass, you need to pay attention to the following

di󽗈erences between the two installation methods during installation:

1. Standard installation: The pointing of the satellite navigation module should be consistent with the

direction of the 󽗊ight control; the satellite navigation module should be installed away from strong

interference sources (such as high-power ESCs, high-current splitters, etc.); the satellite navigation

module should be installed away from microwave radars ;

2. Non-standard installation: When the 󽗊ight control installation orientation is 90 ° clockwise or 90 °

counterclockwise, the satellite navigation module still points to the nose of the aircraft when it is

rotated 90 ° to the right or 90 ° to the left; the motor wiring sequence is consistent with the 󽗊ight

control standard Installation is consistent.

3. Course correction: When there is a certain deviation in the course angle during 󽗊ight, you can use this

function to correct it. The method is: correct the course angle according to the expected input of the

aircraft and restart the 󽗊ight control.

4. Installation position correction: The new version provides position correction function for GPS,

main control and RTK antenna installation. The unit is m, the accuracy is 0.01, the range is -1-1m,

the positive direction is the direction of the nose and the right side of the fuselage, related setting

parameters Need to open advanced settings.

5. RTK antenna installation angle: The default angle is 90 ° , that is, the two antennas are placed

horizontally, and the user can change it according to actual installation needs.

For details on the correction of the main control, GPS, and RTK installation positions, please refer to the rack settings in the

ground station manual.

Installation con󽗉guration

X type 4 motor + type 4 motor X type 6 motor + type 6 motor
