Flight control system user manual 󾗕Agriculture

After the remote controller and power are installed or replaced on the aircraft for the first time, the

remote controller needs to be calibrated to ensure that the stroke amount of each channel of the remote

controller is accurate. During the calibration process, calibrate each joystick and channel in turn. If the

user needs to change the left and right hand throttle, he can directly switch the mode option (left hand -

American hand, right hand - Japanese hand)

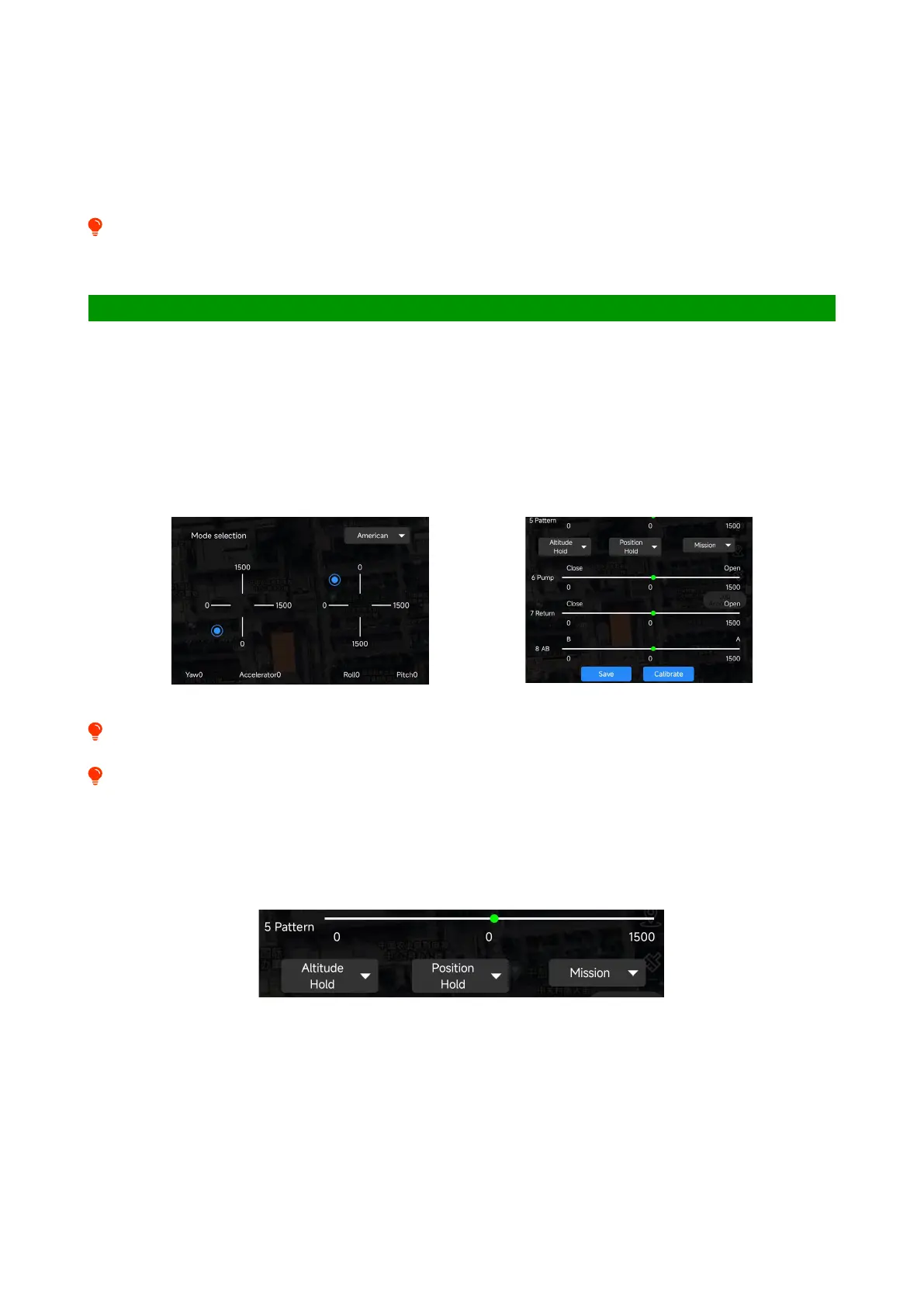

Remote control calibration

Never install the propeller when calibrating the remote control

Changing the left and right hand throttle requires opening the advanced settings of the ground station and the remote control

needs to support this function.

Connect the flight controller and ground station, enter the calibration settings-remote controller

calibration interface, set di󽗈erent 󽗊ight modes in the three gears of the 5-channel, and save the mode

after the settings are completed.

Low gear Middle gear High gear

Calibration settings

The motor test function is used to test whether the connection of the ESC signal line and the motor

steering are correct. A motor test must be performed before takeo󽗈 to ensure that the motor steering and

the connection sequence of the ESC signal line and the main control are correct.

Motor test

The motor test function is very important and is strongly recommended after initial installation or replacement of the 󽗊ight

control. The idle speed of di󽗈erent motors is inconsistent. Pay attention to the initial throttle amount during the test and avoid

setting it too high.

The purpose of electrical calibration is to match the PWM value output by the 󽗊ight control with the range

of PWM values that can be received by the electrical calibration. The conventional electrical calibration

method is as follows:

1. Power on the remote control and push the throttle to the highest position; The flight control is

Electrical calibration
