ASSEMBLY
1. Place the output planet carrier (16) on workbench with
splined coupling side down. Insert two bearings (19)
and a bearing spacer (20) into a gear (17) with the
spacer between the bearings. Place a thrust washer
(21) on each side of the gear and position in a carrier
opening. Slide the shaft (18) through the carrier, thrust
washer, bearing-gear sub-assembly and remaining
thrust washer. Be careful to avoid damaging thrust
washers when installing planet shafts.
2. Carefully align the pin hole in the carrier with the hole
in the planet gear shaft and drive the spirol pin (15)
into place. Always use NEW spirol pins. When prop-
erly positioned, 50% of the spirol pin will engage the
planet gear shaft and 50% will remain in the planet
carrier.

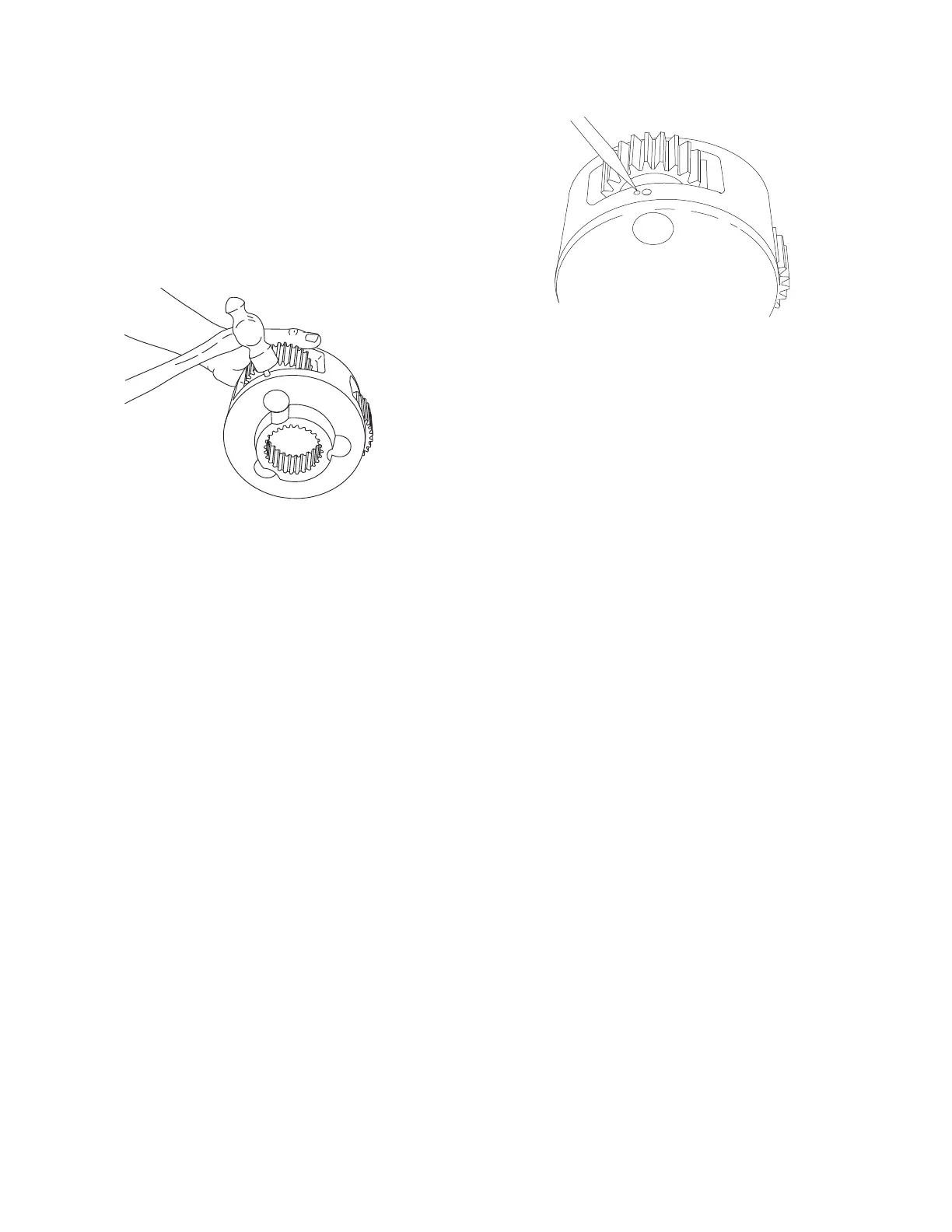

3. Note that the spirol pin is slightly recessed in the carri-
er when properly installed. With a center punch, stake
the carrier next to the pin hole as shown. This will dis-
tort the hole so the pin will not back out. Repeat these
steps for each of the three planet gears.
