SERIES 70 ELECTRIC ACTUATOR
Installation, Operation, and Maintenance Manual
30 of 48
© 2022 BRAY INTERNATIONAL, INC. ALL RIGHTS RESERVED. BRAY.COM
The Information contained herein shall not be copied, transferred, conveyed, or displayed in any manner
that would violate its proprietary nature without the express written permission of Bray International, Inc.

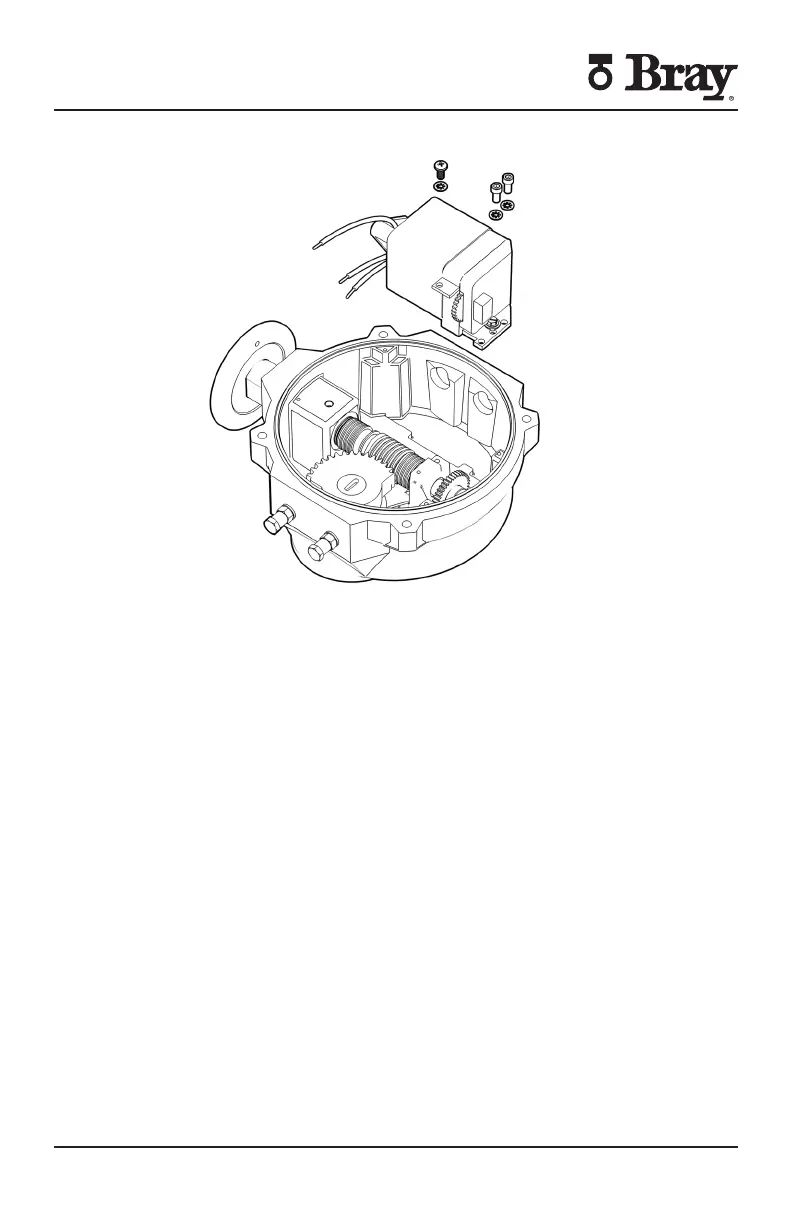

Figure S Actuator Size E E E – motor removed
11. To remove the worm shaft spur gear:
a Follow after removing the gear motor
b For Actuator Size E E and E
i Remove spring pin using a [ mm] punch
ii Slide the gear o the end of the worm shaft
c For Actuator Size E E and E
i Remove spiral retaining ring
ii Remove dowel pin with [ mm] punch
iii Slide the gear o the end of the worm shaft
d For Actuator Sizes -
i Remove bowed E-clip retaining ring
ii Slide the gear o the end of the worm shaft
iii Remove key
