3-6

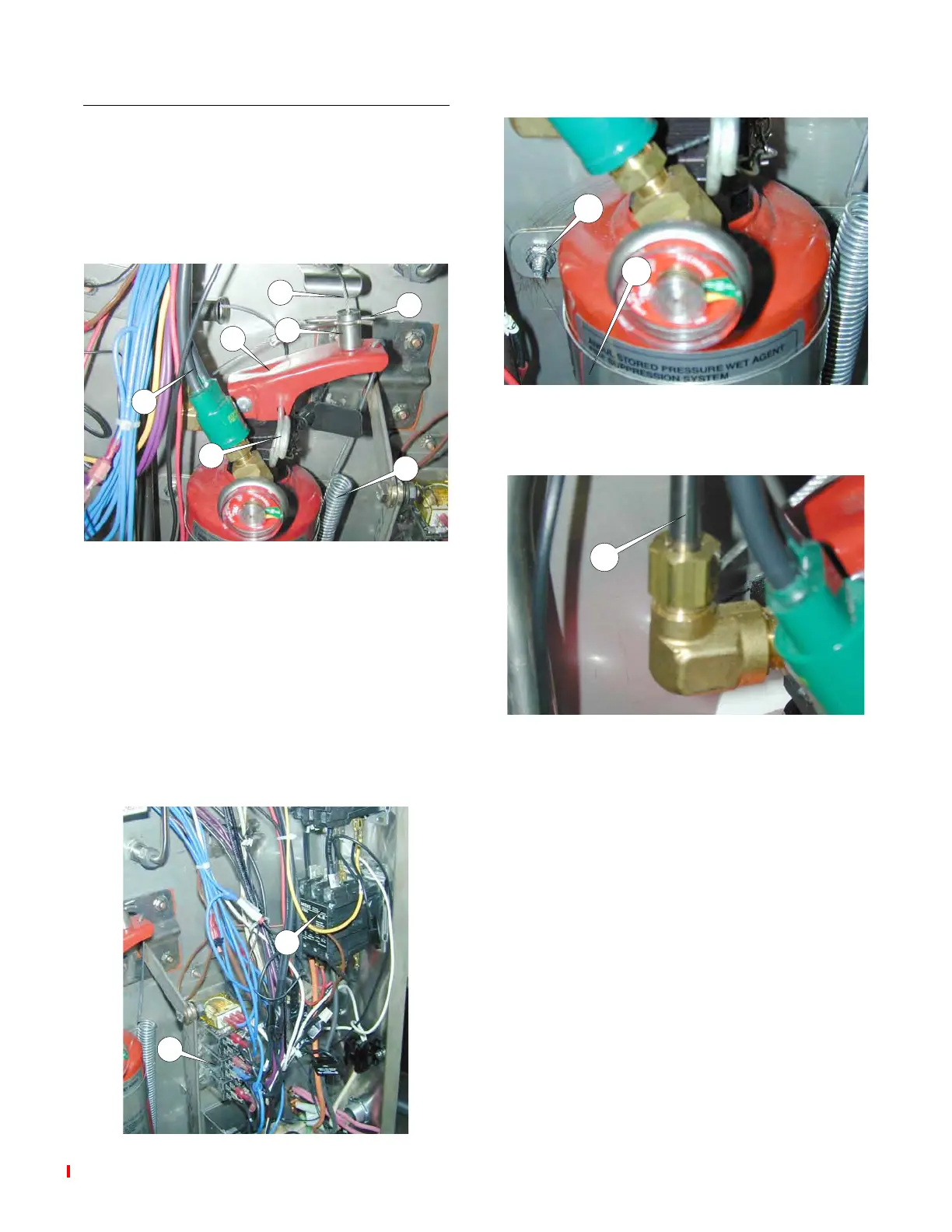

FIRE EXTINGUISHER
REPLACEMENT
1. See Access For Service.
2. Insert the safety pin (6) into the hole in
the actuating lever (7) of the fire extin-
guisher.
3. Release the extension spring (8) from
the actuating lever (7).
4. Remove hitch pin clip (9) and pull fuse-
link cable (10) out of cable receiver
(11).
5. Disconnect the heavy black pressure
switch wires (12) from the C1 ON/OFF
Relay (13) and C1 Contactor (14).
9
8
7
12
6
10
11
6. Remove the mounting strap (15) by
removing two nuts (16).
7. Disconnect the piping (17) from the fire
extinguisher.
8. Remove the fire extinguisher from the
fryer.
9. Clip off ball from fuse-link cable (10)
and remove fuse-link (19) and cable.
10. Install the new Fire Extinguisher.
11. Reconnect piping (17) to the fire extin-
guisher.
12. Reinstall the mounting strap (15) using
nuts (16).
13. Insert the ball end of the new “Fuse-
Link” cable (10) into cable receiver (11)
then insert hitch pin (9).
16
15
17
13
14
broaster.com Manual #16501 8/06 Rev 02-15
