4 - COOKING AREA
4-1

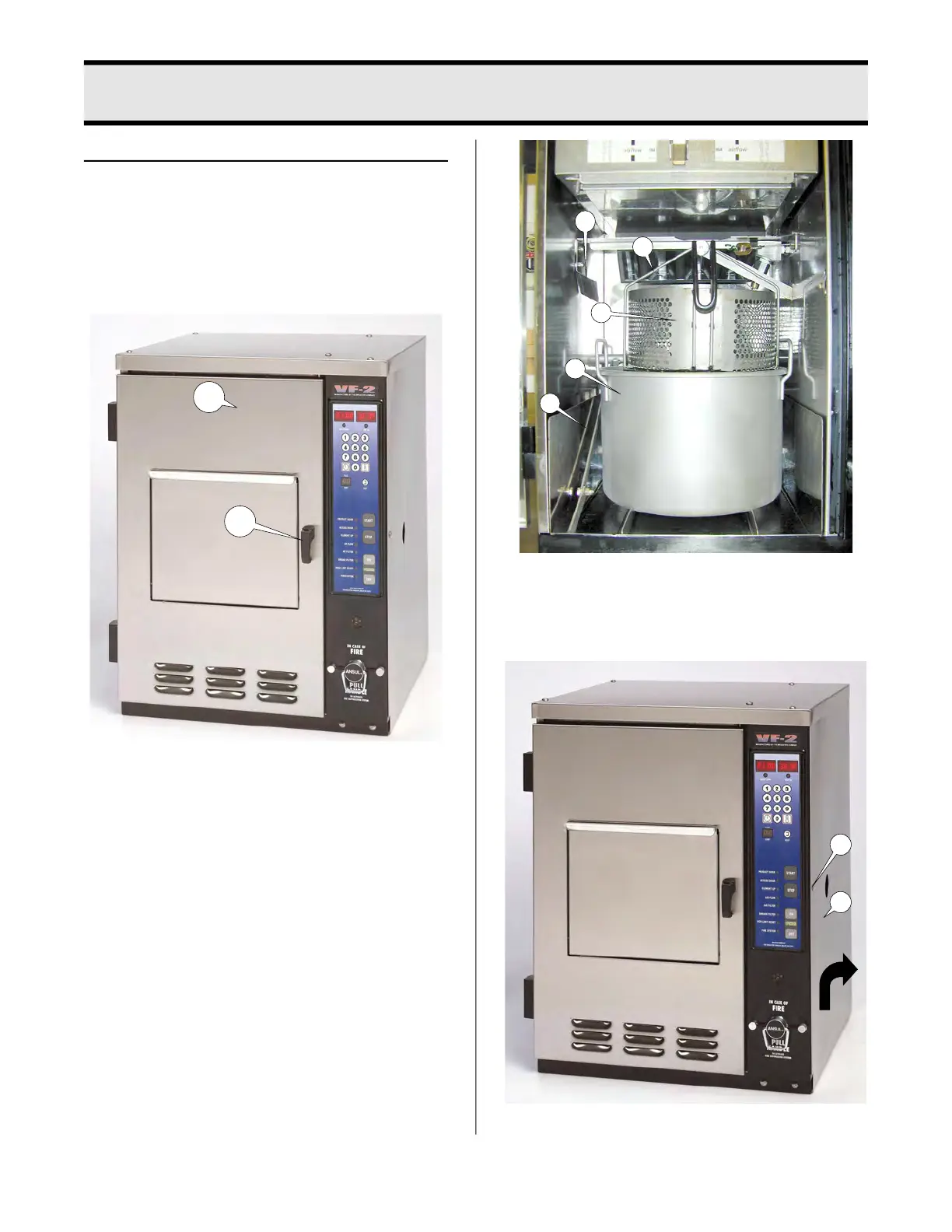

ELEMENT SHAFT REMOVAL
1. Disconnect main power supply.
2. OPEN Access Door (1) by lifting
Access Door Latch (2) and turning
CCW.
3. Remove food basket (3) and platform
(4).
4. Raise the element by raising the ele-
ment are (5) and placing it above the
elemenn retainer (6).
5. Remove Cooking Pot (7).
1
2
6. Remove Access Panel Retaining
Screw (8). Raise the Access Panel (9)
and pull outward.
6
4
3
7
5
8
9
