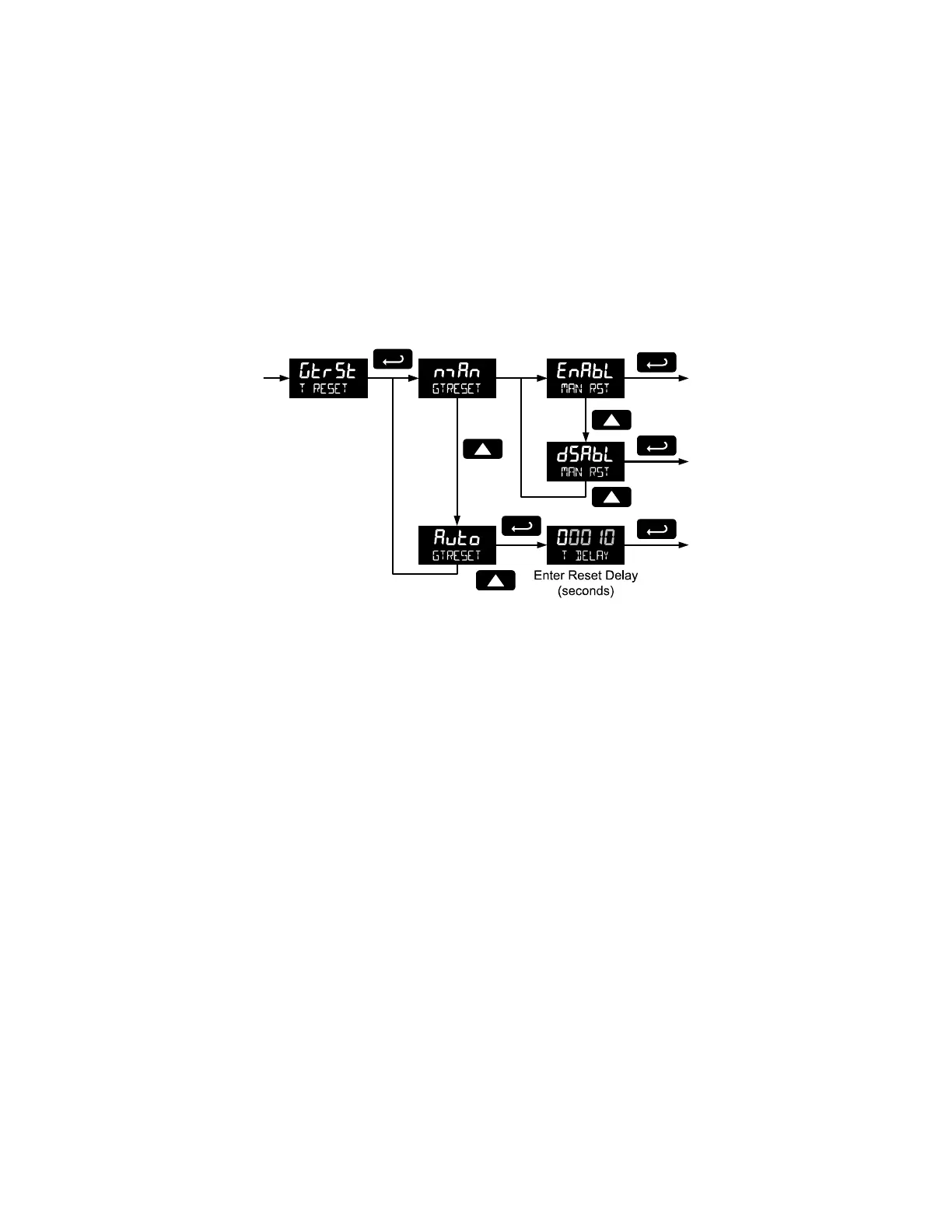

Manual or Automatic Grand Total Reset Function (GtrST)
For manual reset, select T RESET Gtrst man and then select whether manual reset will be
enabled (Enabl) or disabled (dsabl) using the Up arrow key. Press the Enter button to accept. Disabling
reset will avoid inadvertent resets of the total via the front reset button.
For automatic reset, select T RESET Gtrst Auto T DELAY and enter reset delay time in
seconds. Once the grand alarm output grand total set point is reached, the meter waits for a programmed
amount of time (T DELAY) and then resets the grand total to zero.
Press the Enter button, at any time, to accept a setting; otherwise press the Menu button to exit without
saving changes.
Grand Total Alarm Time
The T DELAY parameter is used by the NPN open collector outputs when they are programmed as
grand total alarms. If grand total reset (Gtrst) is programmed to Auto,the time delay (T DELAY) is the
length of the associated Out 1 or Out 2 grand total alarm prior to the grand total being reset to 0.
For information on programming the NPN open collector pulse outputs as grand total alarms, see Alarm
Output programming on page 48.
Press the Enter button, at any time, to accept a setting; otherwise press the Menu button to exit without
saving changes.
