8200 Compressor Maintenance Procedures
Installation, Operation, and Service Instructions Scheduled Maintenance
Brooks Automation 8040353
Revision AA
5-3

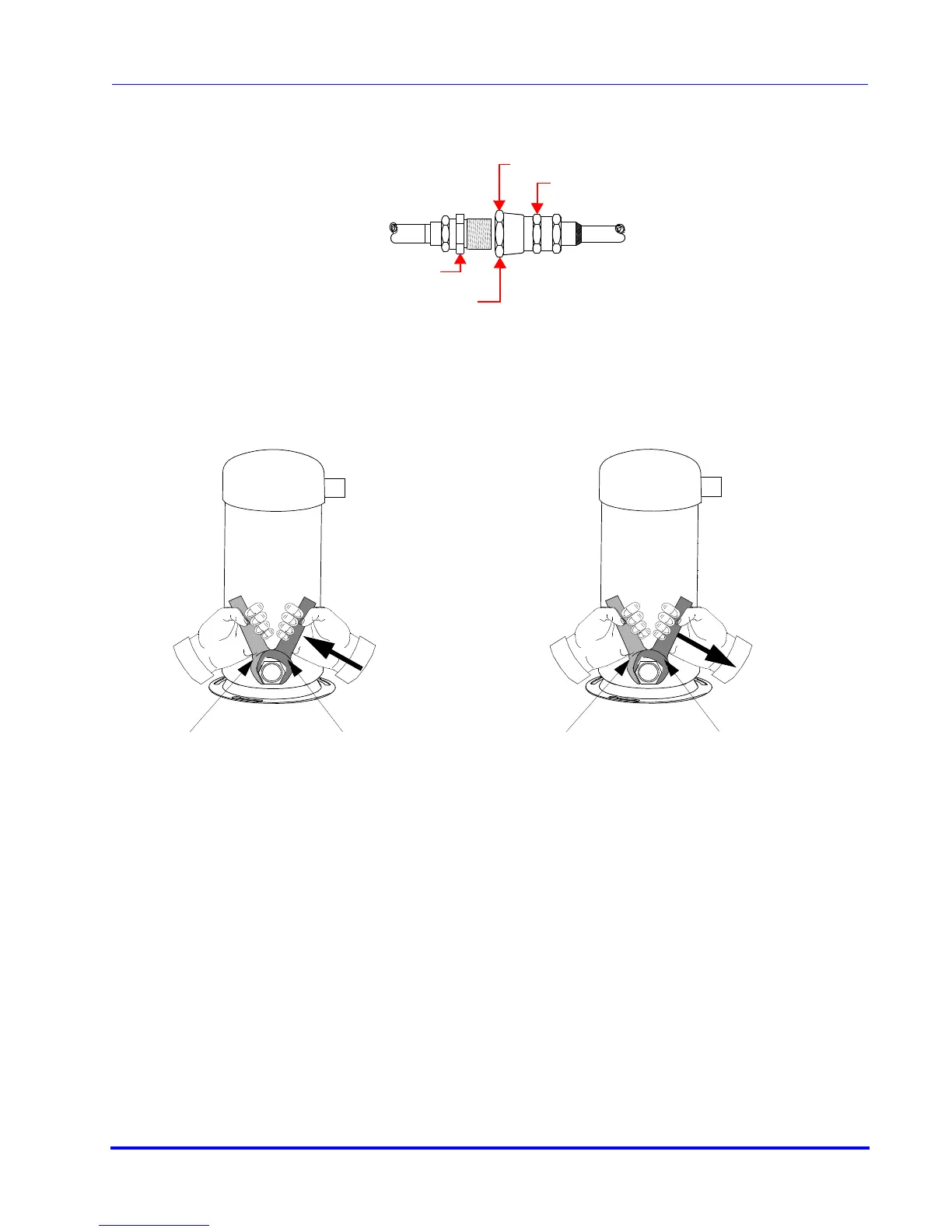

Figure 5-1: Adjusting the Self-Sealing Connectors
Figure 5-2: Disconnecting/Connecting the Adsorber Self-Sealing Coupling
TO TIGHTEN
TO LOOSEN
TURN WITH 1 3/16 INCH WRENCH
HOLD WITH 1 1/8 INCH WRENCH
HOLD WITH 1 1/8 INCH WRENCH
TURN WITH 1 3/16 INCH WRENCH
To Disconnect The Coupling
This 1 3/16 in. wrench is
used to loosen the self
sealing coupling connector.
Note the direction of the
large arrow.
This 1 1/8 in.
wrench holds the
coupling in a
stationary position.
Compressor
Rear Panel
This 1 3/16 in. wrench is
used to tighten the self
sealing coupling
connector. Note the
direction of the large
arrow.
This 1 1/8 in.
wrench holds the
coupling in a
stationary position.
To Connect The Coupling
