8200 Compressor Appendices
Installation, Operation, and Service Instructions Appendix E: Flow Diagrams for 8200
Brooks Automation 8040353
Revision AA
6-15

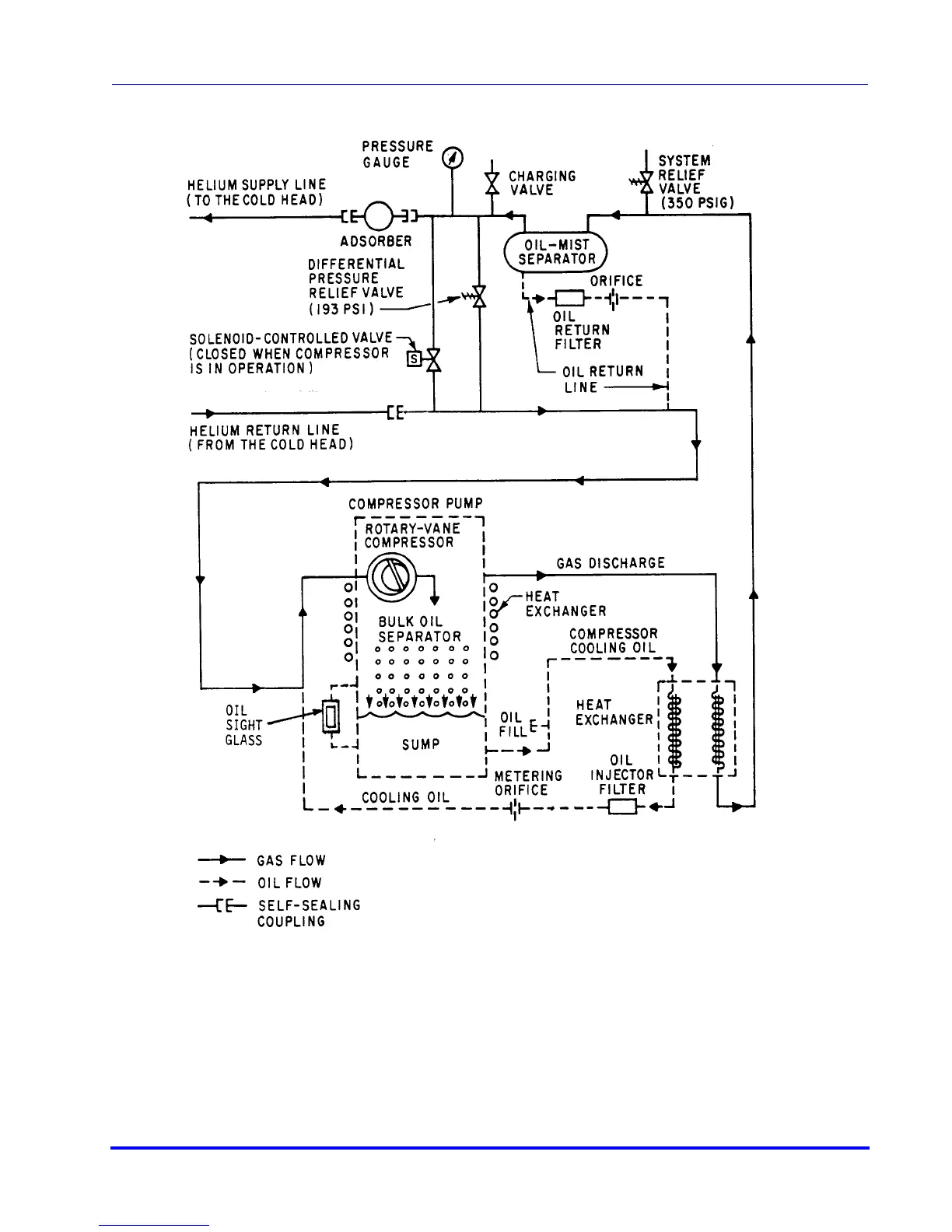

Figure 6-6: Flow Diagram of the 8200 (Water-Cooled) Compressor
