Brother HL-L2300d Series Service Manual

2-90
Confidential

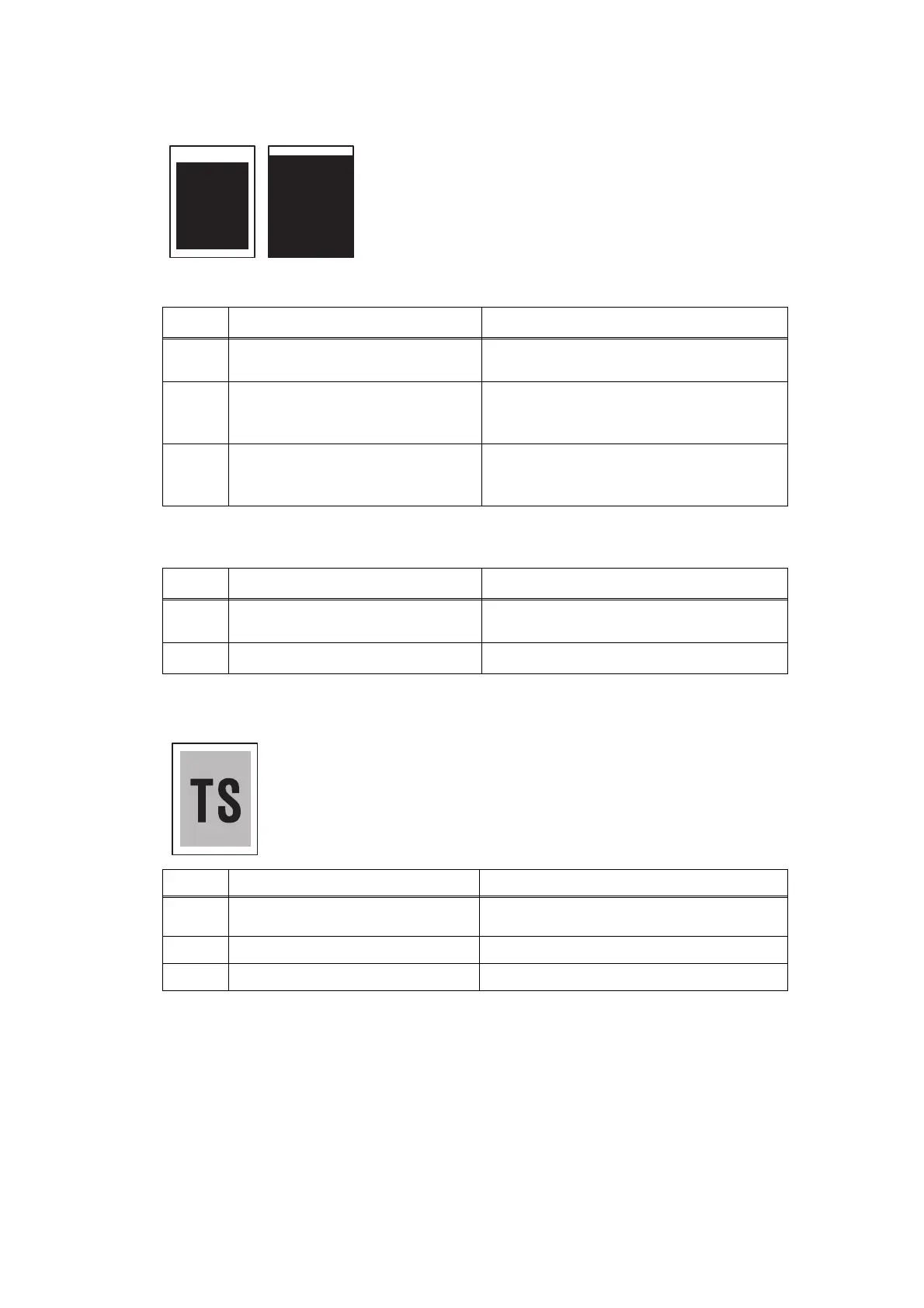

 Faulty registration
 Dark
(1) ADF
Step Cause Remedy
1
Deviation of the scanning start
position
Execute "Fine adjustment of scan start
position. (function code: 54)".
2
First side document scanning
position actuator caught in some
sections of the machine
Reattach the first side document scanning
position actuator.
3
Second side document scanning
position actuator caught in some
sections of the machine
Reattach the second side document
scanning position actuator.
(2) Document scanner unit
Step Cause Remedy
1
Deviation of the scanning start
position
Execute "Fine adjustment of scan start
position. (function code: 54)".
2 First side CIS unit failure Replace the first side CIS unit.
<User Check>
- Check that the contrast setting is not too dark.
- Clean the document hold.
Step Cause Remedy
1
Incorrect white level correction data Execute "Acquire white level data (function
code: 55)".
2
First or second side CIS unit failure Replace the first or second side CIS unit.
3
Main PCB failure Replace the main PCB ASSY.

Brother HL-L2300d Series Specifications

General

Functions	Print
Standard Paper Capacity (sheets)	250
Standard Interface(s)	USB 2.0
Print Resolution (maximum dpi)	2400 x 600 dpi
Recommended Monthly Print Volume	250 - 2, 000 pages
Operating System Compatibility	Windows, Mac, Linux
