3-26

Confidential

9.3 Back Cover

(1) Open the back cover.

(2) Push both ribs on the back cover outward, and remove the pins on the outer chute

ASSY.

(3) Pull out the right side of the back cover in the direction of the arrow A to remove it from

the boss, and remove the back cover in the direction of the arrow B.

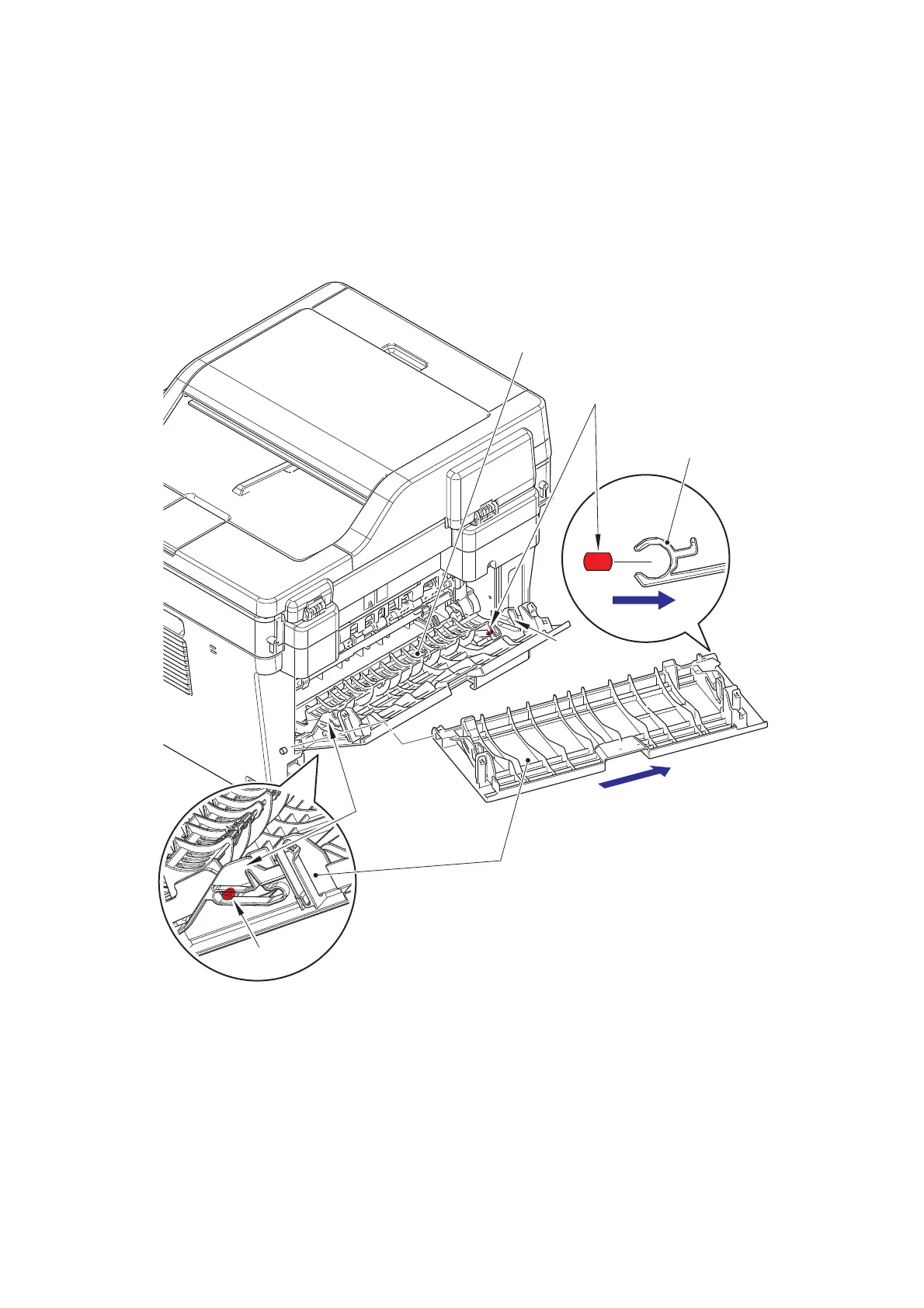

Fig. 3-11

Boss

Back cover

Back cover

Pin

Rib

A

Outer chute ASSY

Rib

B
