Brother HL-L2300d Series Service Manual

3-31
Confidential
9.8 Inner Chute ASSY
(1) Pull down the green envelope levers on both sides of the fuser unit.
(2) Remove the two taptite bind B M4x12 screws, and remove the inner chute ASSY.

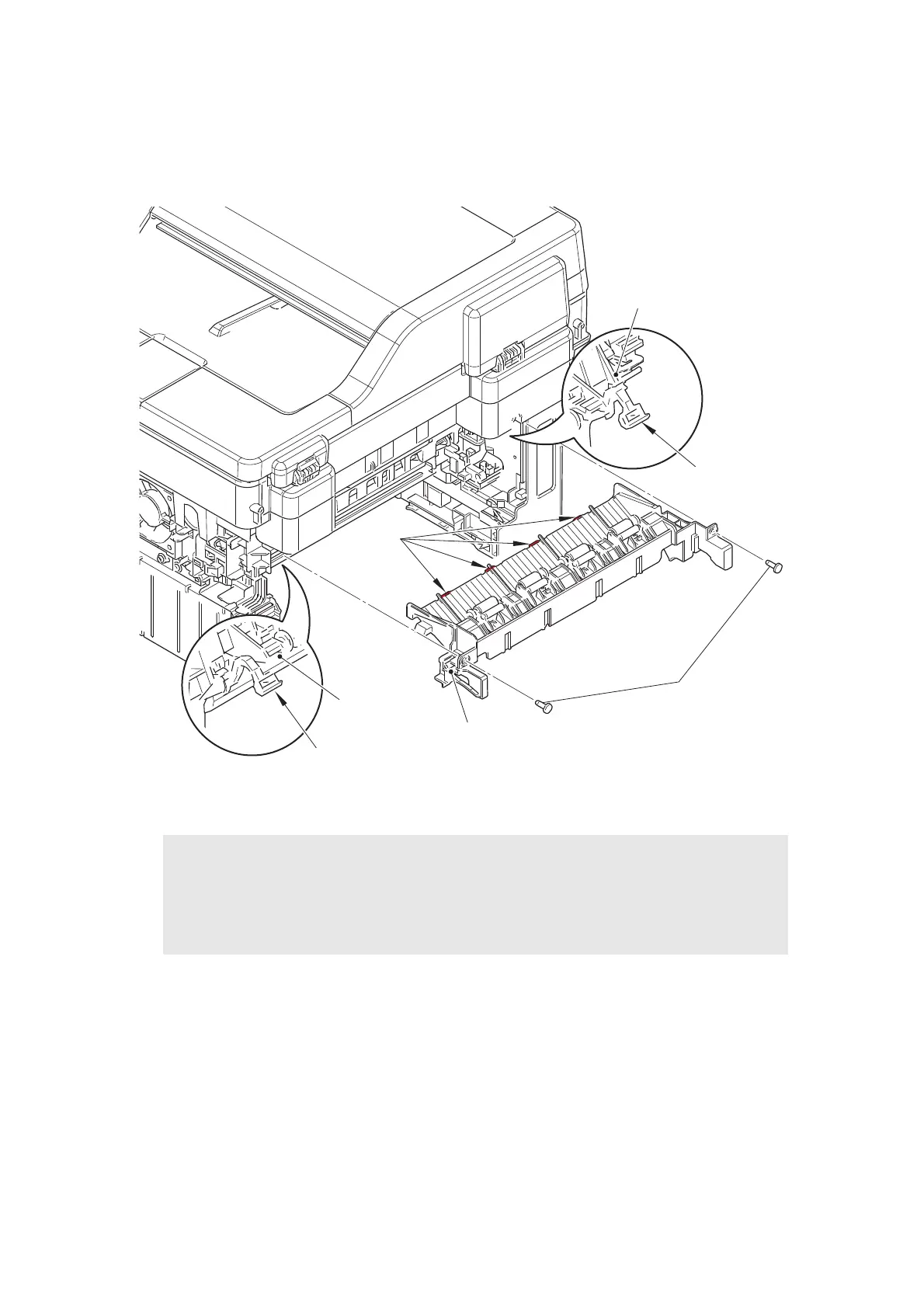

Fig. 3-17
Assembling Note:
• When attaching the inner chute ASSY, engage the hooks on the inner chute ASSY with
the positioning holes on the joint cover ASSY.
• After assembling the inner chute ASSY, pull up the green envelope levers on both sides
of the fuser unit.
Fuser unit
Hooks
Green
envelope lever
Taptite bind B
M4x12
Inner chute ASSY
Green envelope lever
Fuser unit

Brother HL-L2300d Series Specifications

General

Functions	Print
Standard Paper Capacity (sheets)	250
Standard Interface(s)	USB 2.0
Print Resolution (maximum dpi)	2400 x 600 dpi
Recommended Monthly Print Volume	250 - 2, 000 pages
Operating System Compatibility	Windows, Mac, Linux
