Brother HL-L2300d Series Service Manual

3-37
Confidential
9.12 ADF Unit (For models with ADF)
9.12.1 ADF Unit

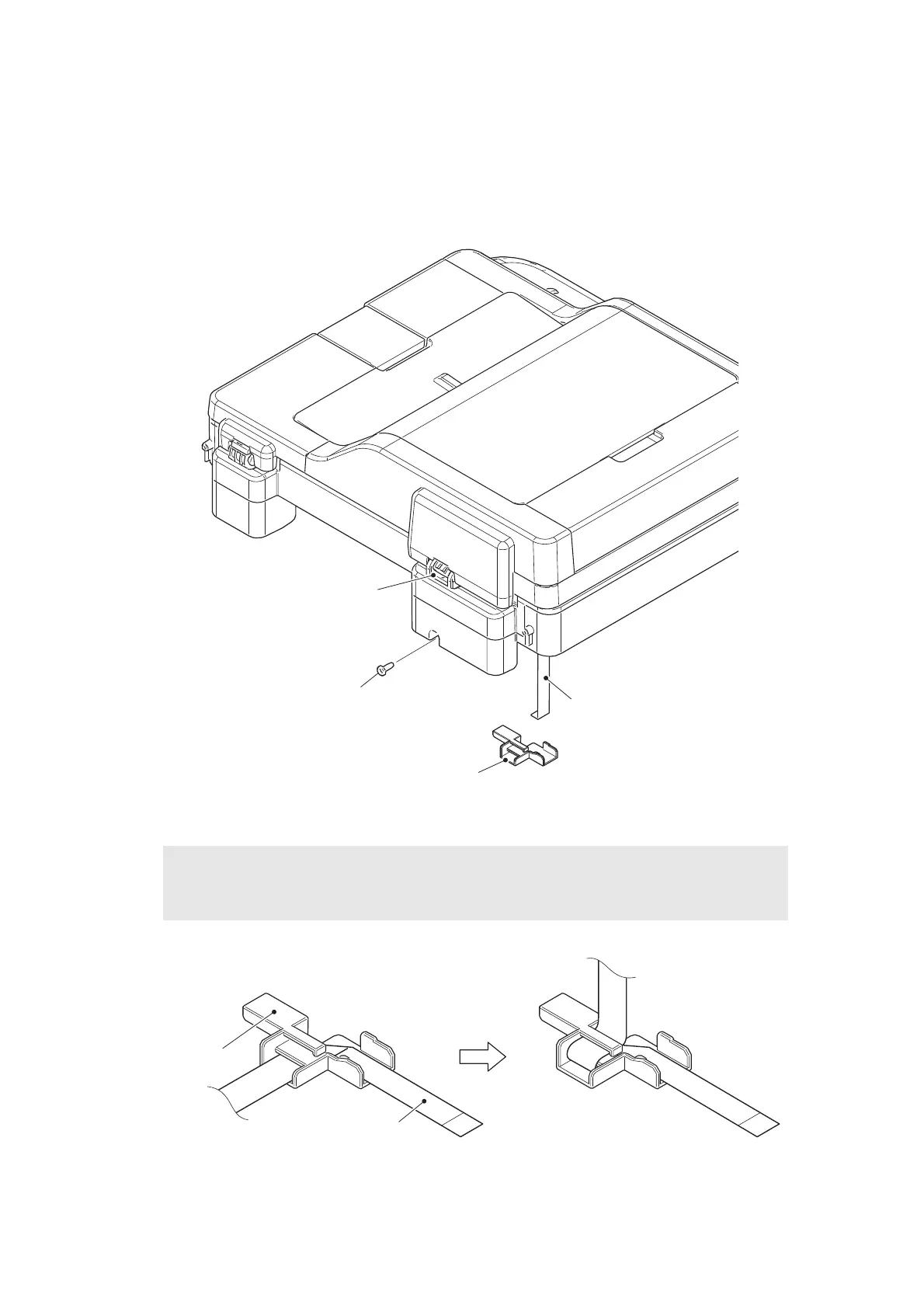

(1) Remove the ADF FFC holder from the second side CIS flat cable.
(2) Remove the taptite bind B M4x12 screw from the hinge ASSY L.
Fig. 3-24
Fig. 3-25
Assembling Note:
• Attach the ADF FFC holder to the second side CIS flat cable as shown in the figure
below.
Second side CIS flat cable
Hinge ASSY L
Taptite bind B M4x12
ADF FFC holder
ADF FFC holder
Second side CIS flat cable
