Brother HL-L2300d Series Service Manual

3-50
Confidential
9.12.9 FFC Holder ASSY, Second Side CIS Flat Cable, ADF Motor
(1) Release the ADF harness unit from the securing fixtures. Remove the three taptite cup B
M3x10 screws. Release the hook to remove the lower document chute ASSY from the
ADF unit.
(2) Remove the FFC holder ASSY from the second side CIS flat cable. Pull out the second
side CIS flat cable from the hole of the lower document chute ASSY.

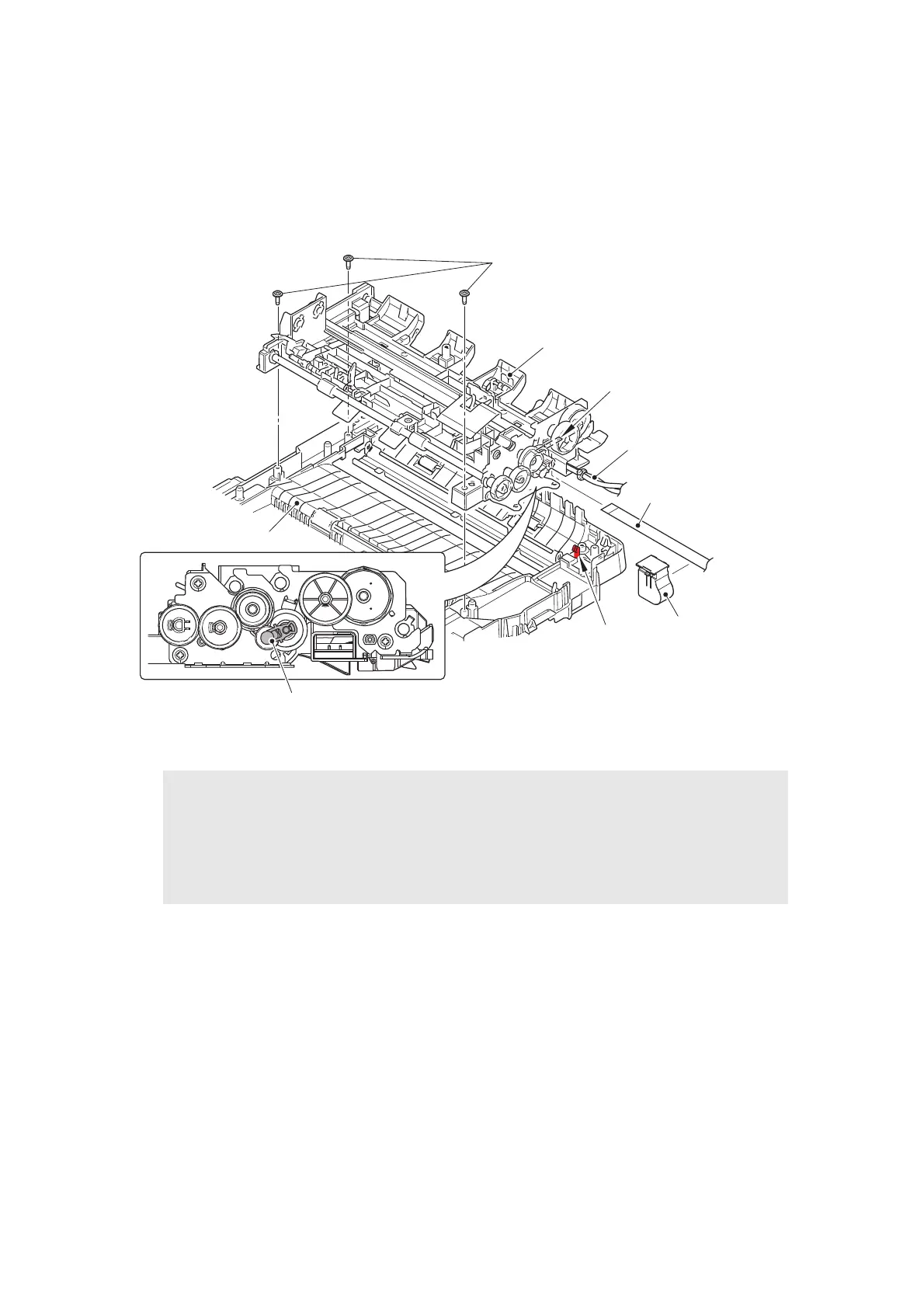

Fig. 3-40
Harness routing: Refer to “8. ADF unit”.
Assembling Note:
• When attaching the lower document chute ASSY, make sure that the planetary gear
shaded in gray is engaged with the position shown in the figure above.
• The second side CIS flat cable may have been damaged when it was removed from
the FFC holder ASSY. Be sure to replace the second side CIS flat cable with a new
one. Follow the procedure below to attach the new second side CIS flat cable.
Taptite cup B M3x10
Lower document chute ASSY
ADF unit
Hook
Planetary gear
Hole
ADF harness unit
Second side CIS flat cable
FFC holder ASSY

Brother HL-L2300d Series Specifications

General

Functions	Print
Standard Paper Capacity (sheets)	250
Standard Interface(s)	USB 2.0
Print Resolution (maximum dpi)	2400 x 600 dpi
Recommended Monthly Print Volume	250 - 2, 000 pages
Operating System Compatibility	Windows, Mac, Linux
