Brother HL-L2300d Series Service Manual

3-39
Confidential

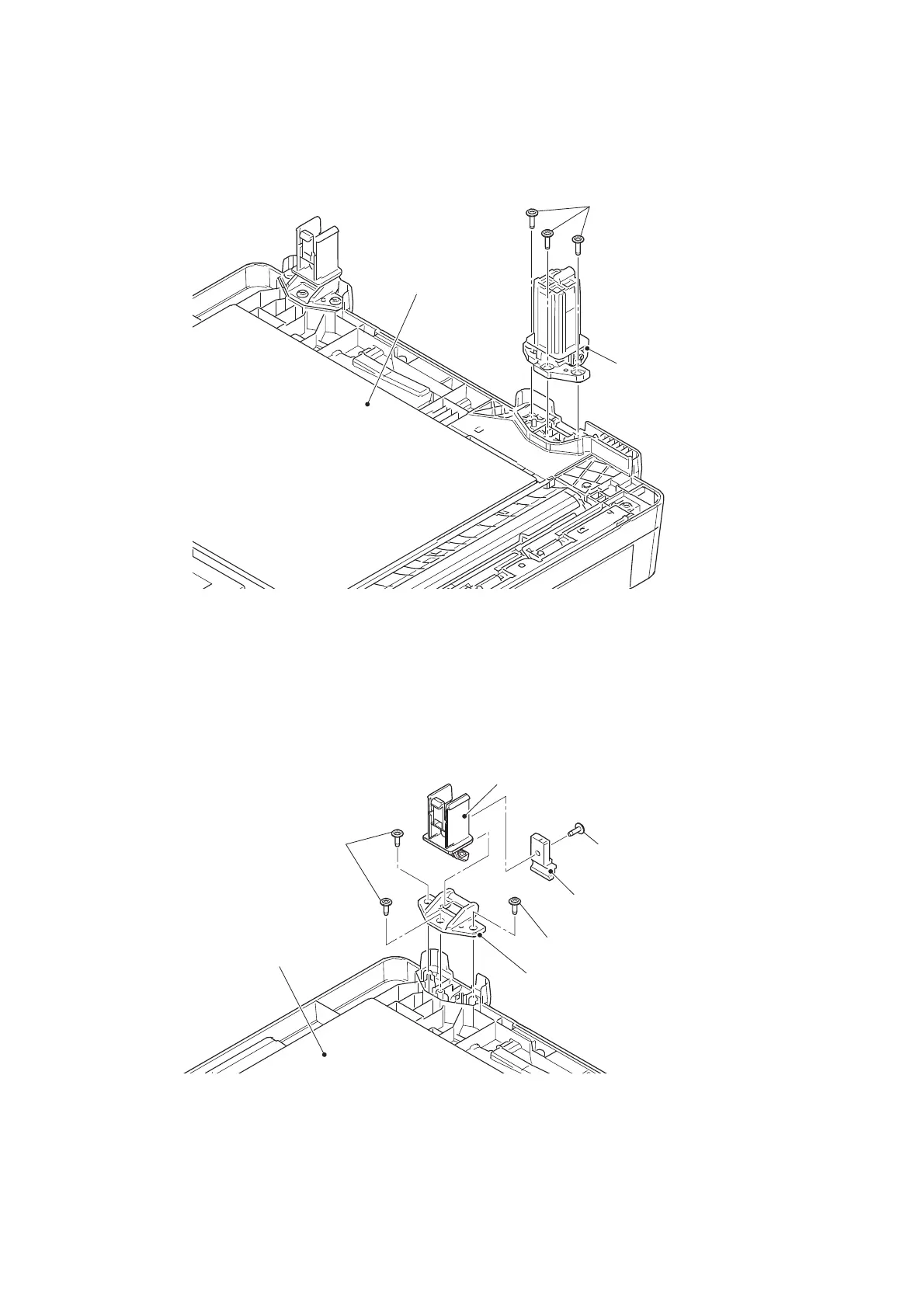

9.12.2 Hinge ASSY L, Hinge R, Hinge R Support, Hinge Arm R
(1) Remove the three taptite cup S M3x12 screws to remove the hinge ASSY L from the
document scanner unit.
Fig. 3-27
(2) Remove the taptite cup B M3x10 screw to remove the hinge R support and the hinge R
from the hinge arm R.
(3) Remove the three taptite cup B M3x10 screws to remove the hinge arm R from the
document scanner unit.
Fig. 3-28
Hinge ASSY L
Taptite cup S M3x12
Document scanner unit
Hinge R
Taptite cup B M3x10
Taptite cup B M3x10
Hinge R support
Taptite cup B M3x10
Hinge arm R
Document scanner unit

Brother HL-L2300d Series Specifications

General

Functions	Print
Standard Paper Capacity (sheets)	250
Standard Interface(s)	USB 2.0
Print Resolution (maximum dpi)	2400 x 600 dpi
Recommended Monthly Print Volume	250 - 2, 000 pages
Operating System Compatibility	Windows, Mac, Linux
