Brother HL-L2300d Series Service Manual

3-89
Confidential
9.31 New Toner Sensor PCB ASSY
(1) Release the new toner sensor PCB flat cable from the securing fixture.
(2) Release the hook, and remove the new toner sensor PCB ASSY. Disconnect the paper
feed sensor harness ASSY from the new toner sensor PCB ASSY, and release it from
the securing fixtures.

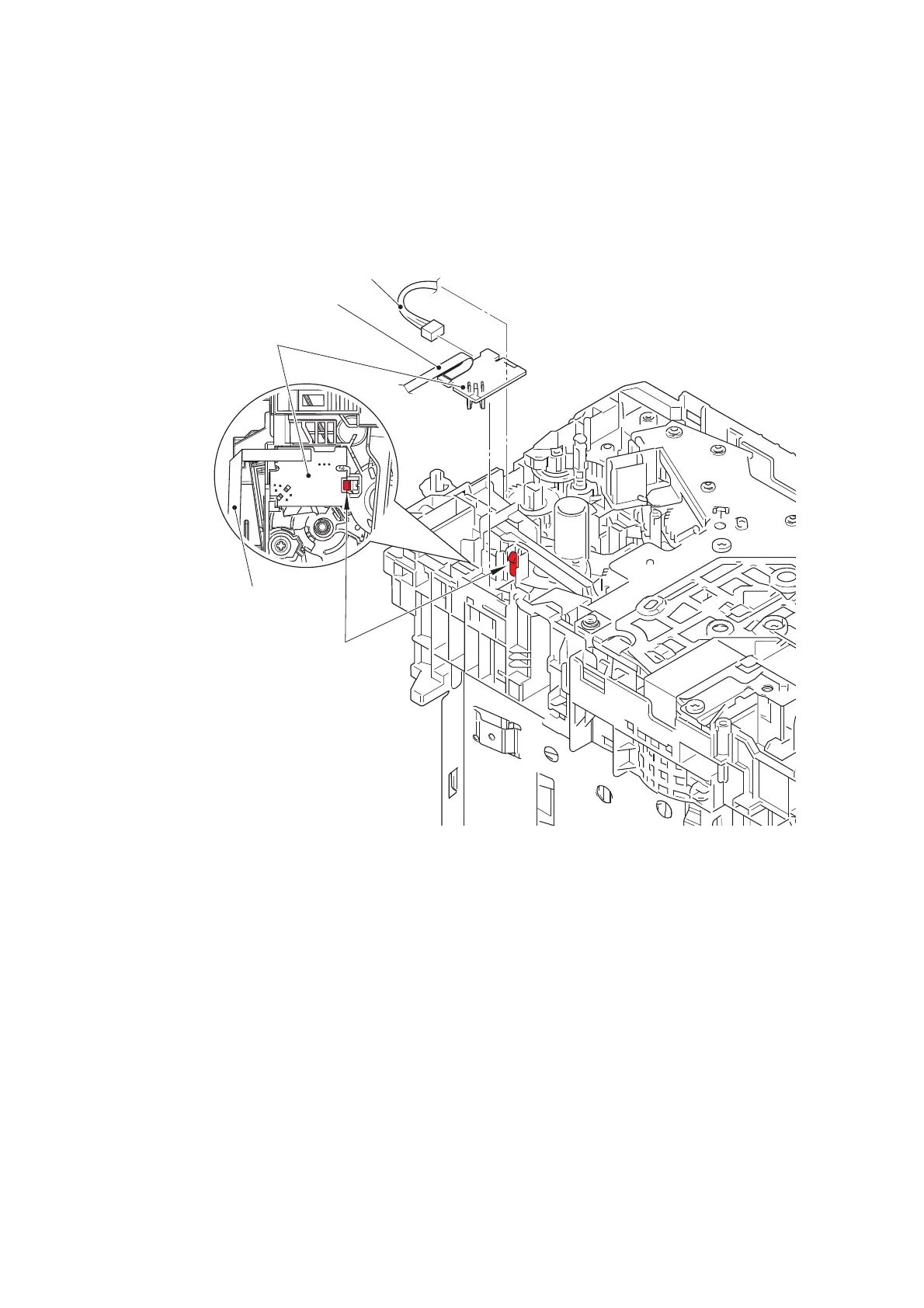

Fig. 3-93
Harness routing: Refer to “3. Left side of the machine”, “5. New toner sensor PCB ASSY”.
New toner sensor PCB ASSY
Hook
Paper feed sensor harness ASSY
<Front side>
<Upper side of frame L>
New toner sensor PCB flat cable
New toner sensor PCB flat cable
