Brother HL-L2300d Series Service Manual

3-11
Confidential

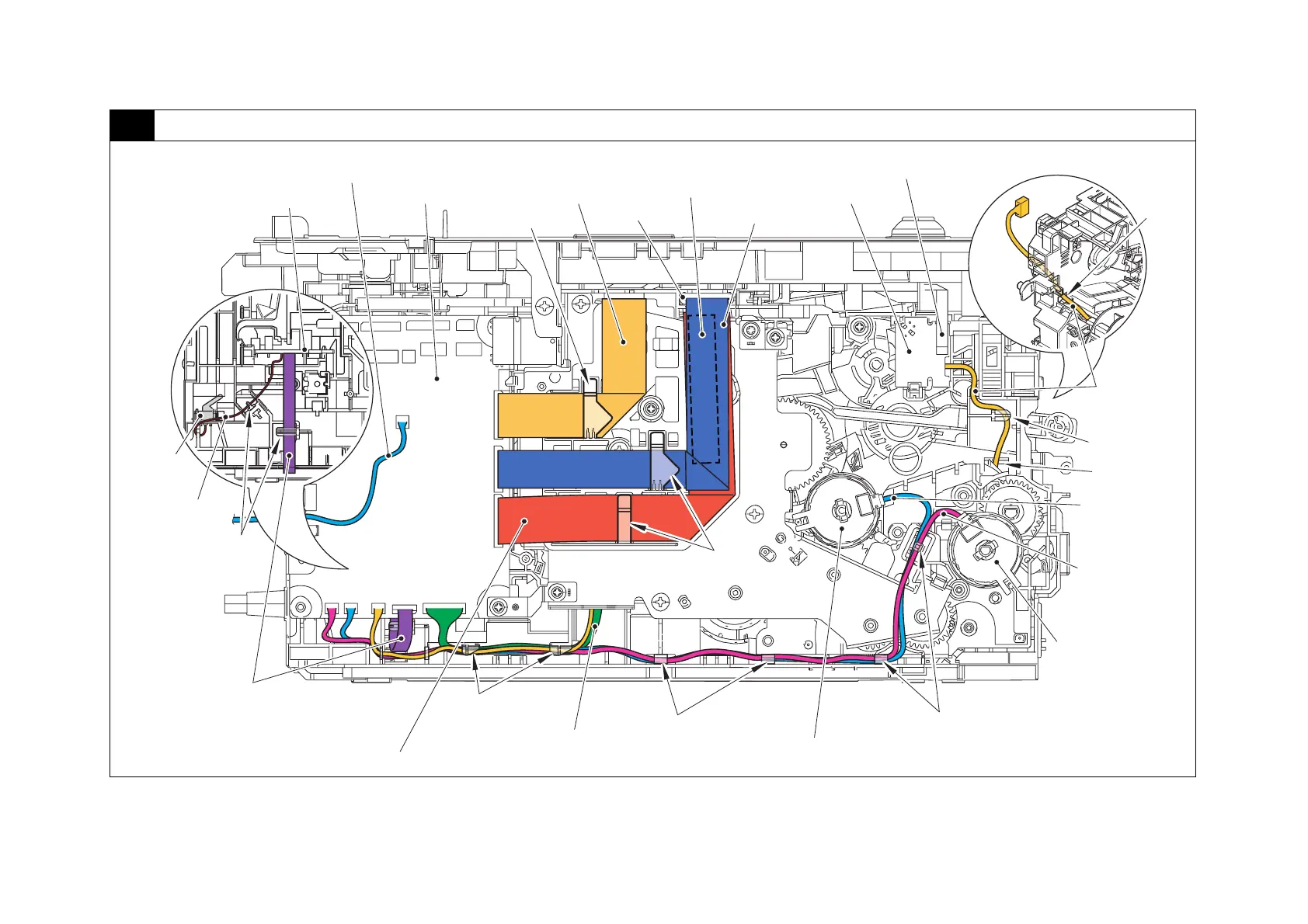

3 Left side of the machine
Harness colors are subject to change for some reason.
Flat cable sponge
Flat core
Laser unit flat cable
New toner sensor PCB ASSY
New toner sensor PCB flat cable
Paper feed
sensor harness
ASSY
(WH, BL, RD)
Guide
Registration
clutch harness
(WH)
T1 clutch
harness (BL)
T1 clutch
Guides
Registration clutch
Guide
Main motor flat cableMain PCB ASSY
HVPS flat cable
Guides
LVPS harness (WH, BR)
Guides
Guides
Hole
Guides
Eject sensor PCB flat cable
Eject sensor PCB ASSY
<Rear side of
the main PCB>
Hole
<Inside of the frame L>
Hook harness (BK)
Back cover/duplex
tray sensor harness
(RD, BL)
Back cover/
duplex tray
sensor
