Brother HL-L2300d Series Service Manual

3-83
Confidential
9.26 Laser Unit
(1) Disconnect the laser unit flat cable from the main PCB ASSY and the laser unit, and
release it from the securing fixtures.
(2) Remove the four taptite cup S M3x8 SR screws, and remove the laser unit.

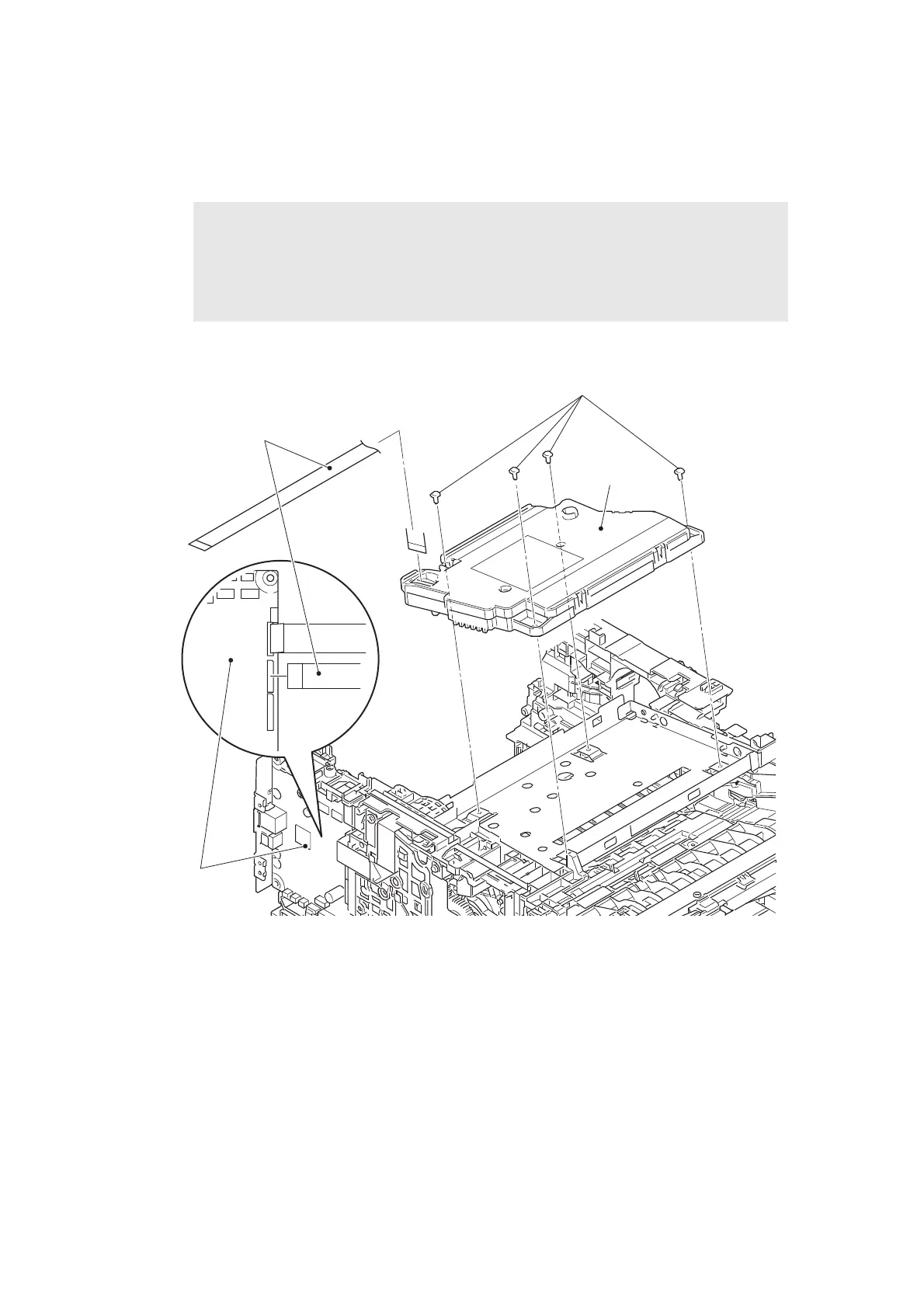

Fig. 3-83
Harness routing: Refer to “3. Left side of the machine”, “4. Rear side of the machine”.
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Taptite cup S M3x8 SR
Laser unit flat cable
Main PCB ASSY
Laser unit
<Back side>

Brother HL-L2300d Series Specifications

General

Functions	Print
Standard Paper Capacity (sheets)	250
Standard Interface(s)	USB 2.0
Print Resolution (maximum dpi)	2400 x 600 dpi
Recommended Monthly Print Volume	250 - 2, 000 pages
Operating System Compatibility	Windows, Mac, Linux
