Brother HL-L2300d Series Service Manual

5-11
Confidential
[2] Print worker switch (WSW) setting data (function code: 11)
<Function>
This function is used to print the setting items of the worker switches and the set details.
<Operating Procedure>
Fig. 5-3
For models without keypad
(1) Press the [▲] or [▼] key in the initial
state of maintenance mode to display
"MAINTENANCE 11" on the LCD, and
press the [OK] key. "PRINTING" is
displayed on the LCD, and printing the

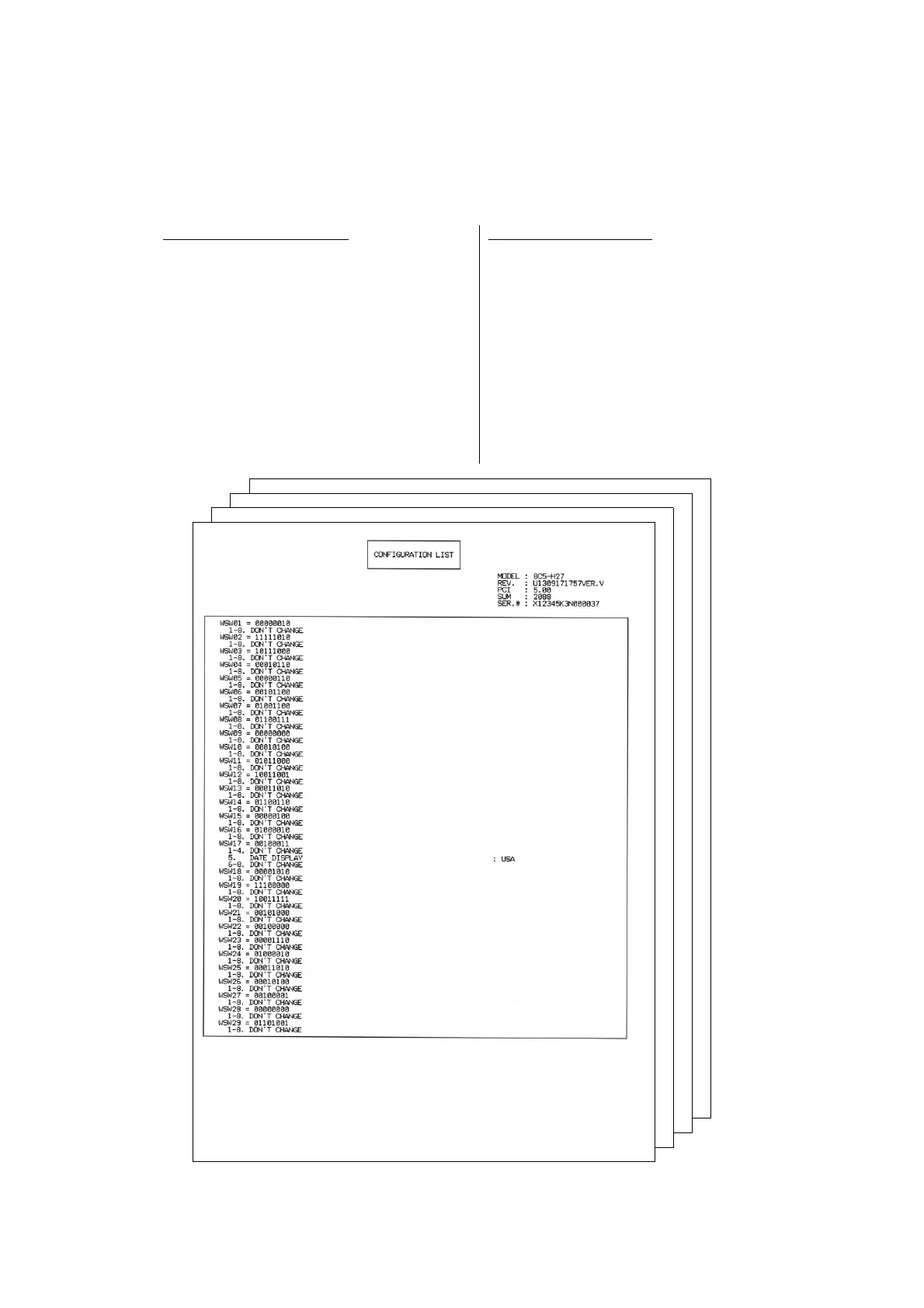

CONFIGURATION LIST (refer to the
figure below) starts.
(2) When printing is completed, the
machine returns to the initial state of
maintenance mode.
For models with keypad
(1) Press the [1] key twice in the initial state
of maintenance mode. "PRINTING" is
displayed on the LCD, and printing the
CONFIGURATION LIST (refer to the
figure below) starts.
(2) When printing is completed, the
machine returns to the initial state of
maintenance mode.
