Brother MFC-7380

3-8
Confidential

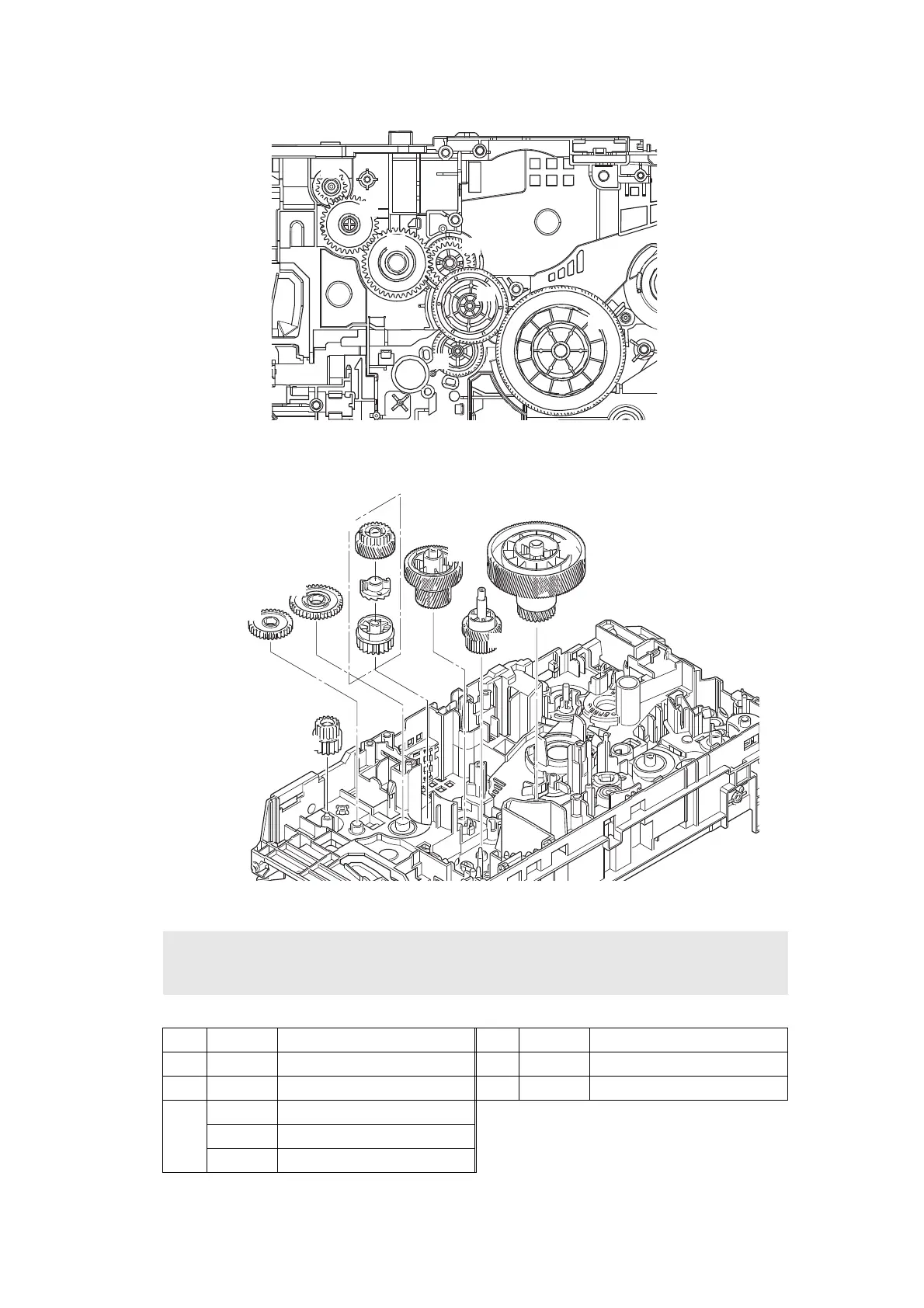

<Layout view>
Fig. 3-7
<Development view>
Fig. 3-8
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
7 LY9006 Ejector gear 33 11 LY9005 Ejector gear 40
8 LY9008 DX gear 44/32 12 LY9007 Ejector gear 17/16
9 LY9026 Drum gear 115L/26L 13 LY9029 Fuser gear 67R/40R
10
LY9030 Fuser gear oneway 45L/23
LY9032 Fuser clutch
LY9031 Fuser gear oneway
21
12
7
11
10
13
8
9
12
7
11
10
13
8
9
