Brother MFC-7380

3-58
Confidential
9.14 Panel Unit (For models with touch panel)
9.14.1 Panel Unit
(1) Remove the four taptite cup B M3x10 screws.
(2) Release the claws to remove the panel unit. Disconnect the panel harness from the
panel PCB ASSY.

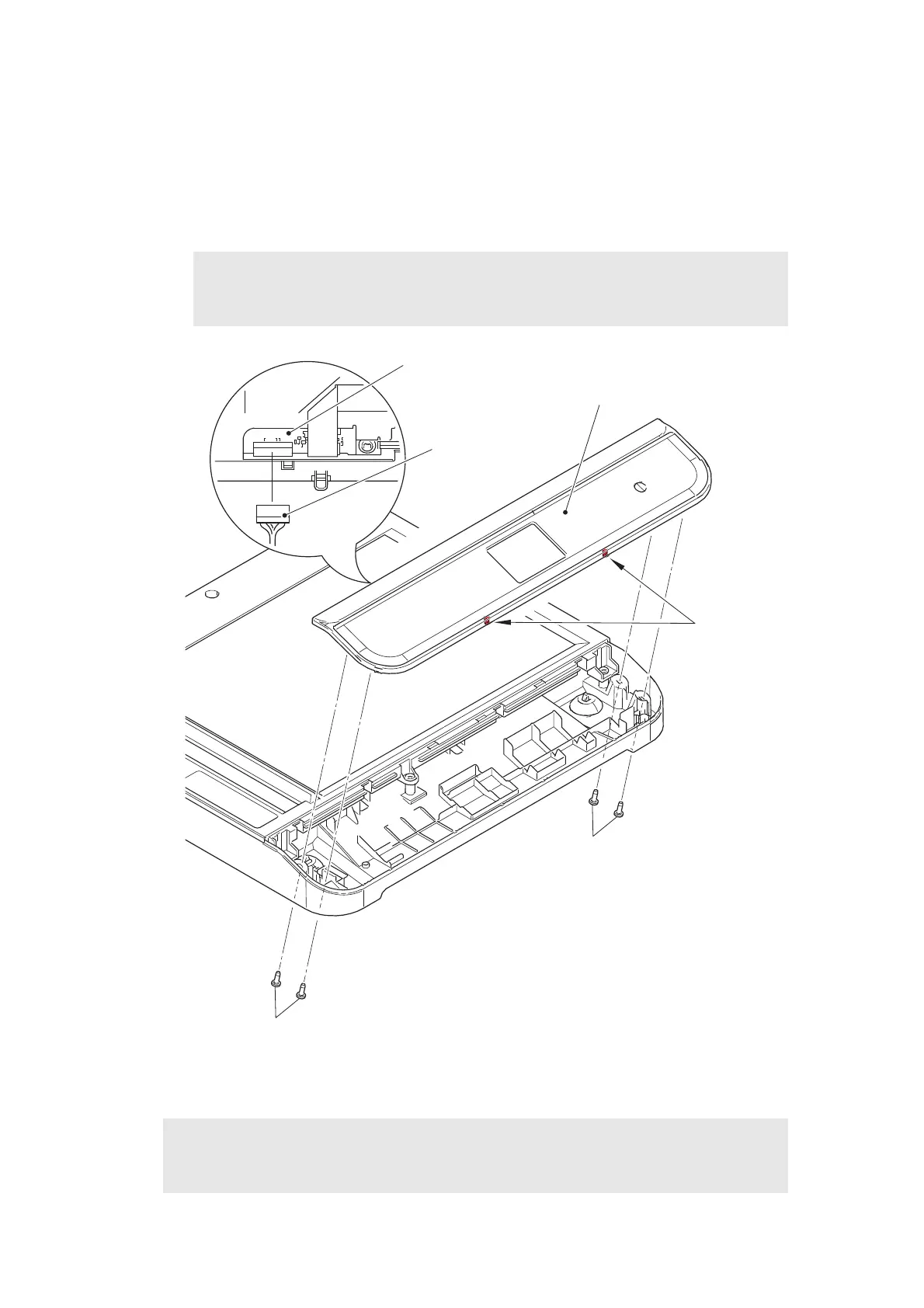

Fig. 3-53
Harness routing: Refer to “9. Scanner unit”.
Note:
• When removing the panel unit, DO NOT pull the panel unit strongly because it is
connected to the panel harness.
Assembling Note:
• If you replaced the panel unit, refer to “4. IF YOU REPLACE THE PANEL UNIT OR
PANEL PCB UNIT” in Chapter 4 to configure settings.
Panel PCB ASSY
Panel unit
Claws
Taptite cup B M3x10
Taptite cup B M3x10
Panel harness
