3-29

Confidential

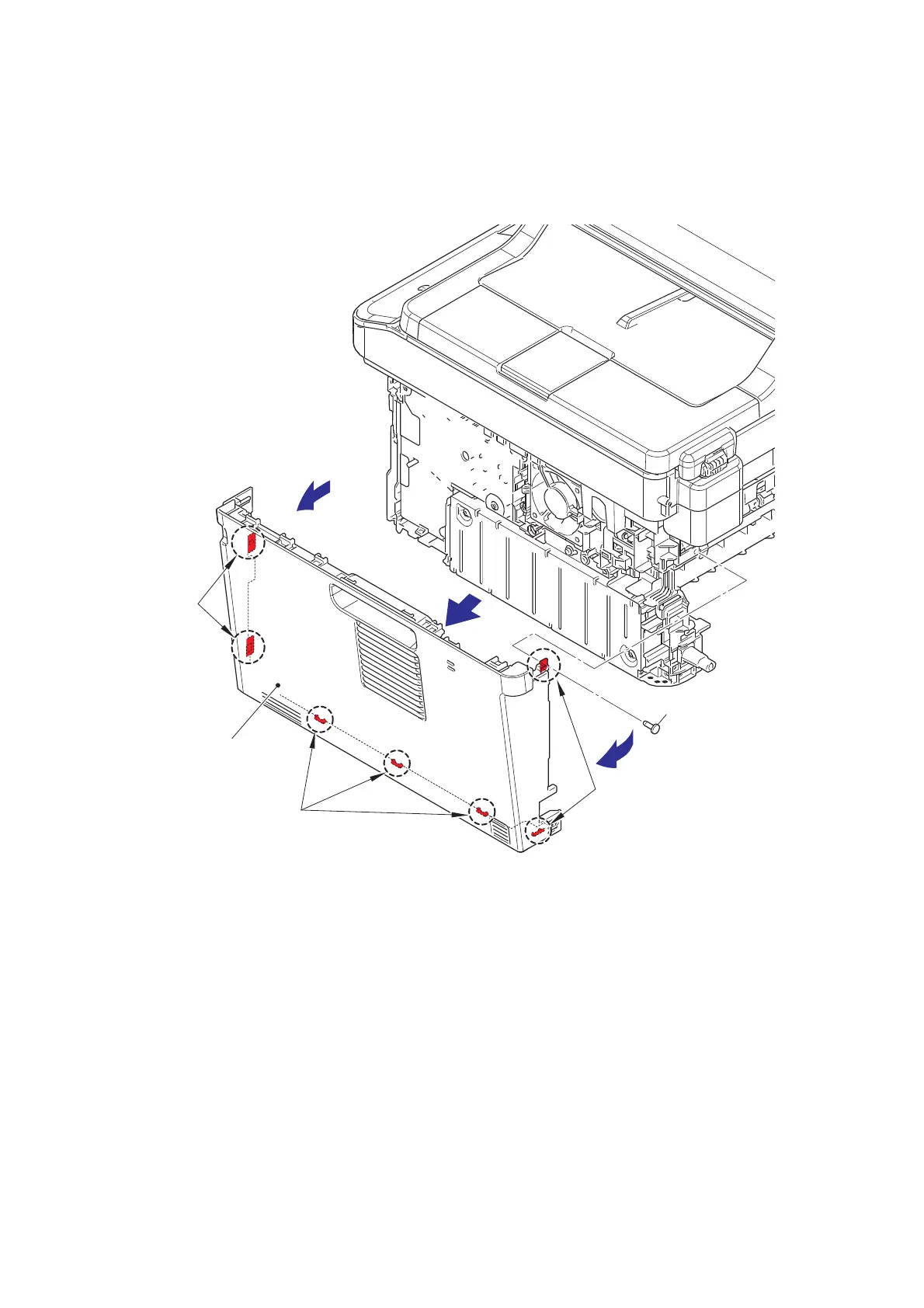

9.6 Side Cover R

(1) Remove the taptite bind B M4x12 screw.

(2) Release the each hook on the side cover R in order of the arrow A to C, and remove the

side cover R from the main body.

Fig. 3-15

Hooks

Side cover R

Hooks

Taptite bind B M4x12
