3-42

Confidential

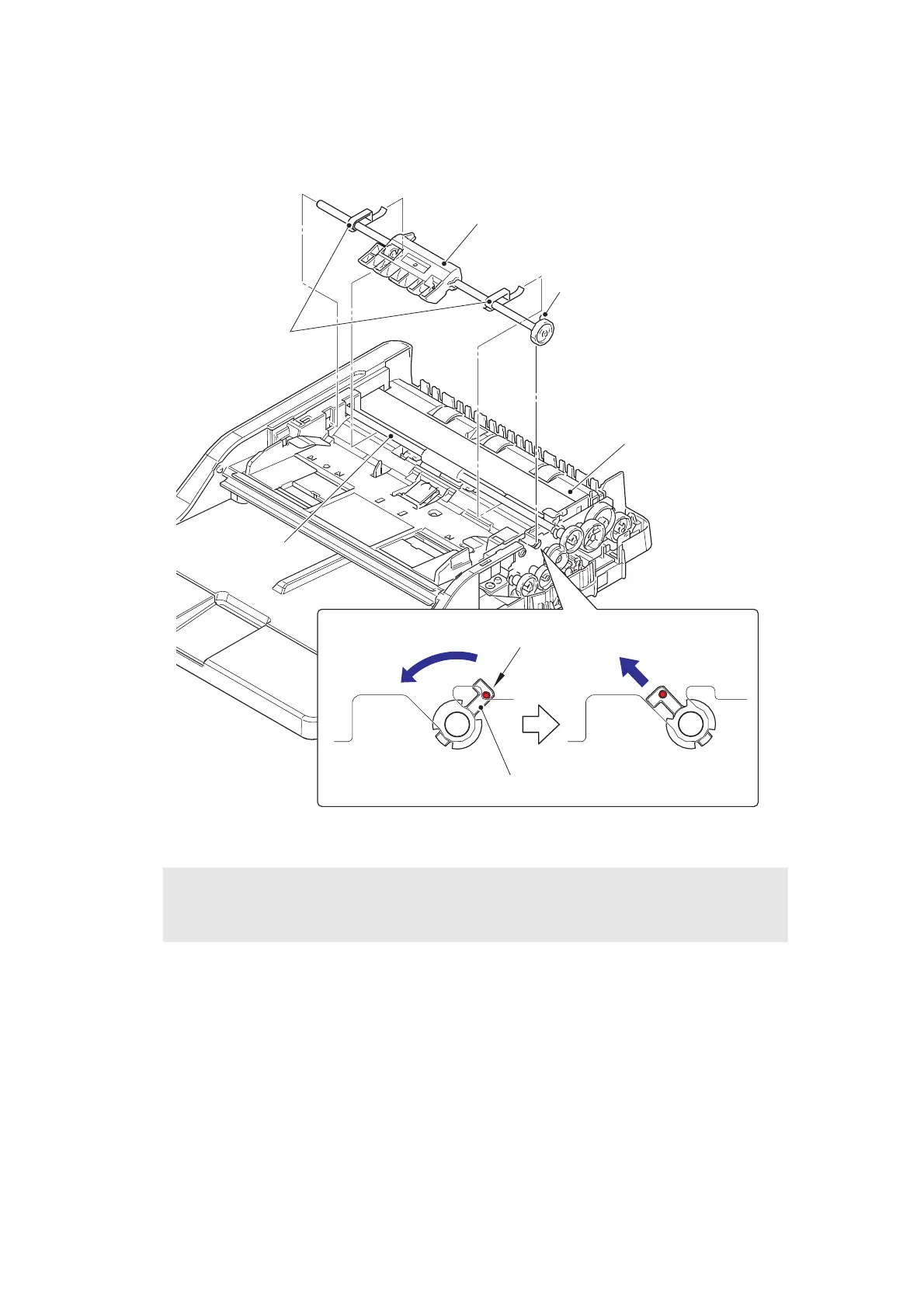

9.12.5 Document Separate Roller ASSY

(1) Release the lock of the conductive bushing to remove the document separate roller

ASSY from the ADF unit.

Fig. 3-31

Assembling Note:

• When attaching the document separate roller ASSY, make sure that the ADF flaps are

set under the document feed roller ASSY 2. (Duplex scanning models only)

Conductive bushing

Document separate roller ASSY

Conductive bushing

Lock

ADF unit

ADF flaps

Document feed

roller ASSY 2
