3-61

Confidential

9.15 Panel Unit (For models without touch panel)

9.15.1 Panel Unit

(1) Remove the four taptite cup B M3x10 screws.

(2) Release the claws to remove the panel unit. Disconnect the panel harness from the

panel PCB ASSY.

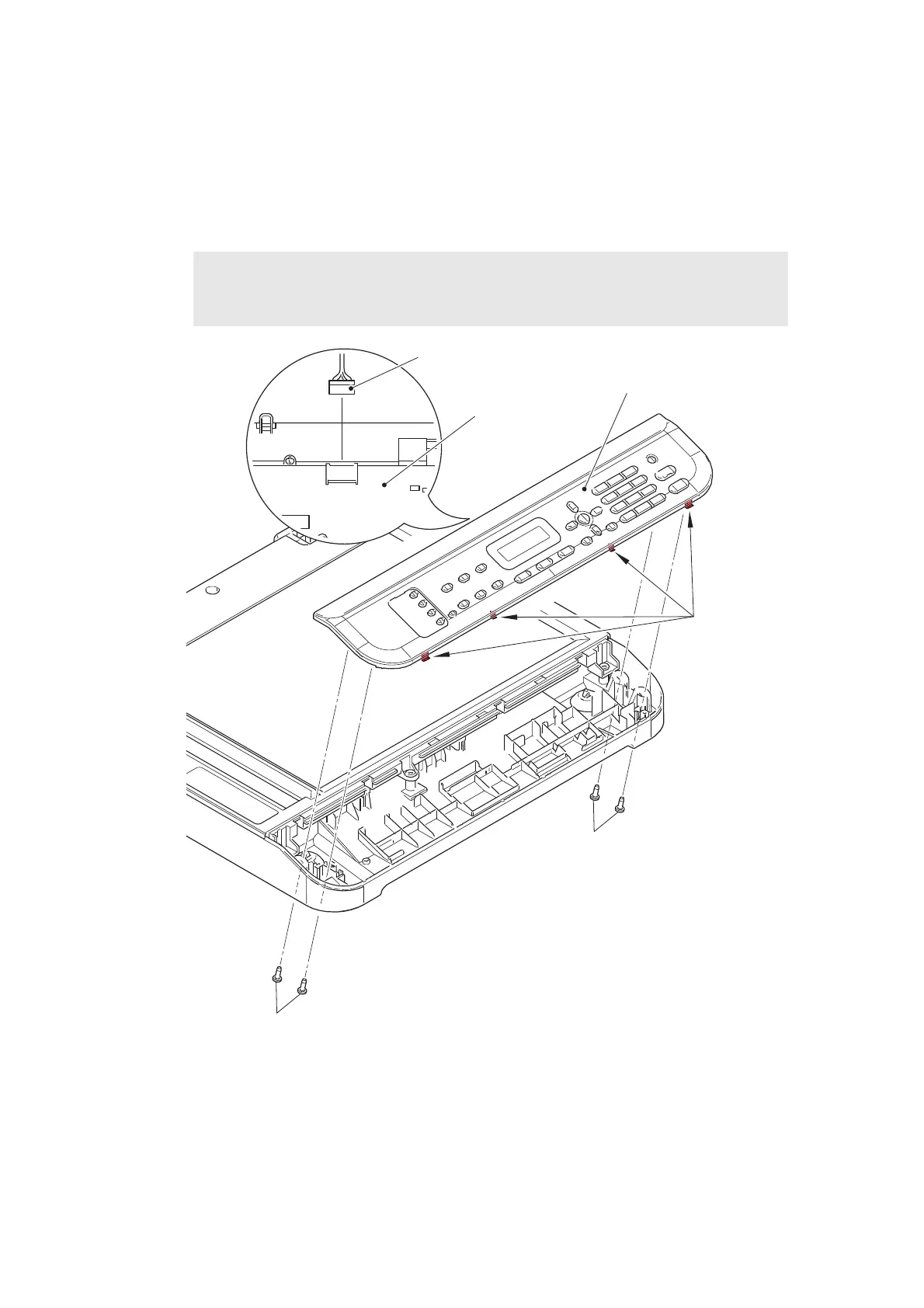

Fig. 3-56

Harness routing: Refer to “9. Scanner unit”.

Note:

• When removing the panel unit, DO NOT pull the panel unit strongly because it is

connected to the panel harness.

Taptite cup B M3x10

Claws

Panel unit

Panel PCB ASSY

Panel harness
