Brother MFC-7380

3-74
Confidential
9.20 Joint Cover ASSY
(1) Remove the four taptite bind B M4x12 screws.
(2) Release the hooks on the joint cover ASSY in order of the hook A to F, and remove the
joint cover ASSY in the direction of the arrow.

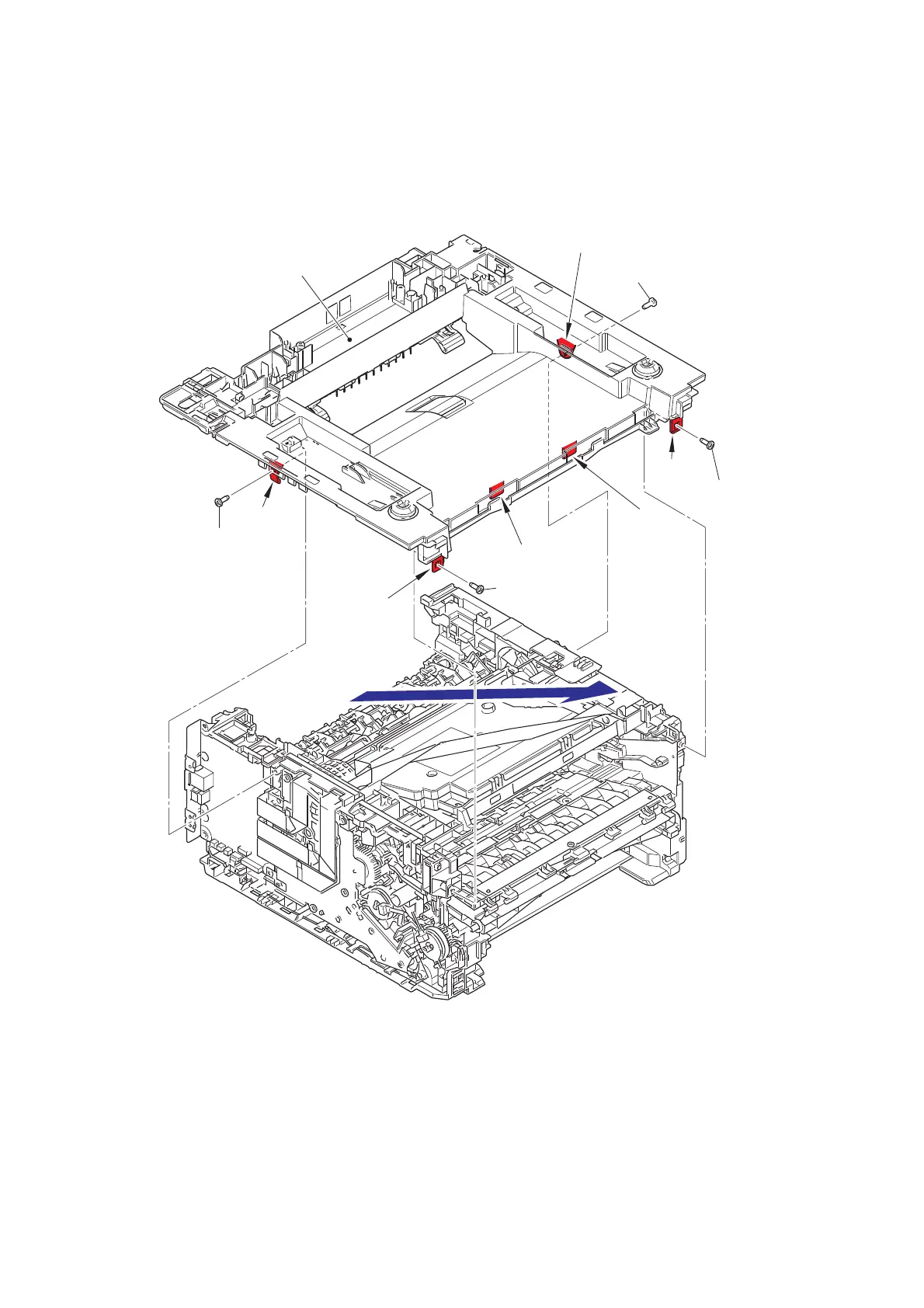

Fig. 3-71
Joint cover ASSY
Hook A
Hook E
Hook F
Taptite bind B M4x12
Taptite bind
B M4x12
Taptite bind
B M4x12
Hook C
Hook D
Hook B
Taptite bind
B M4x12
