3-40

Confidential

9.12.3 ADF Document Output Support Flap, ADF Document Support

(1) Release the bosses to remove the ADF document output support flap from the ADF unit.

(2) Bend the ADF document support inward to remove it from the bosses of the ADF unit.

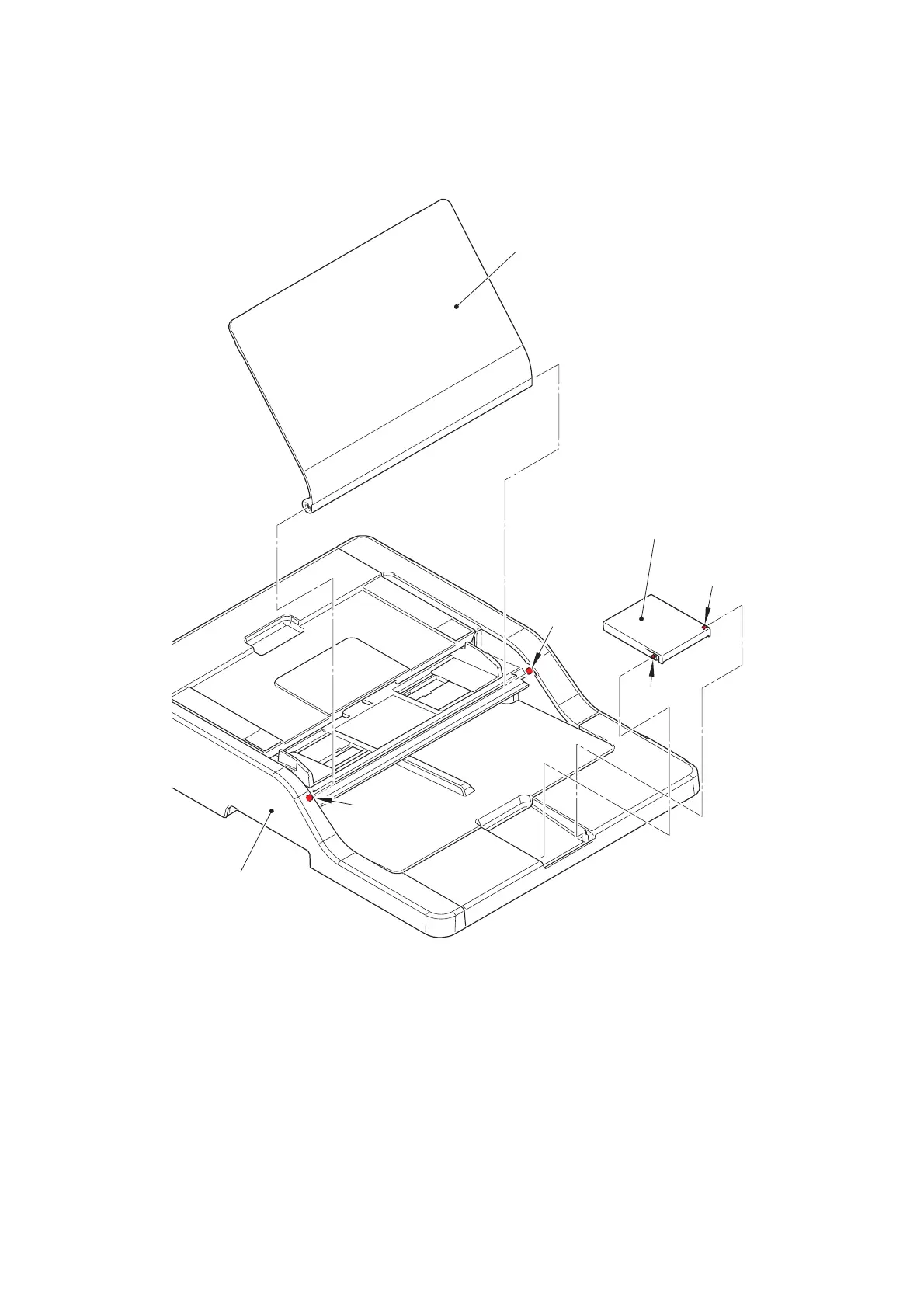

Fig. 3-29

ADF document support

ADF document

output support flap

Boss

Boss

Boss

Boss

ADF unit
