3-44

Confidential

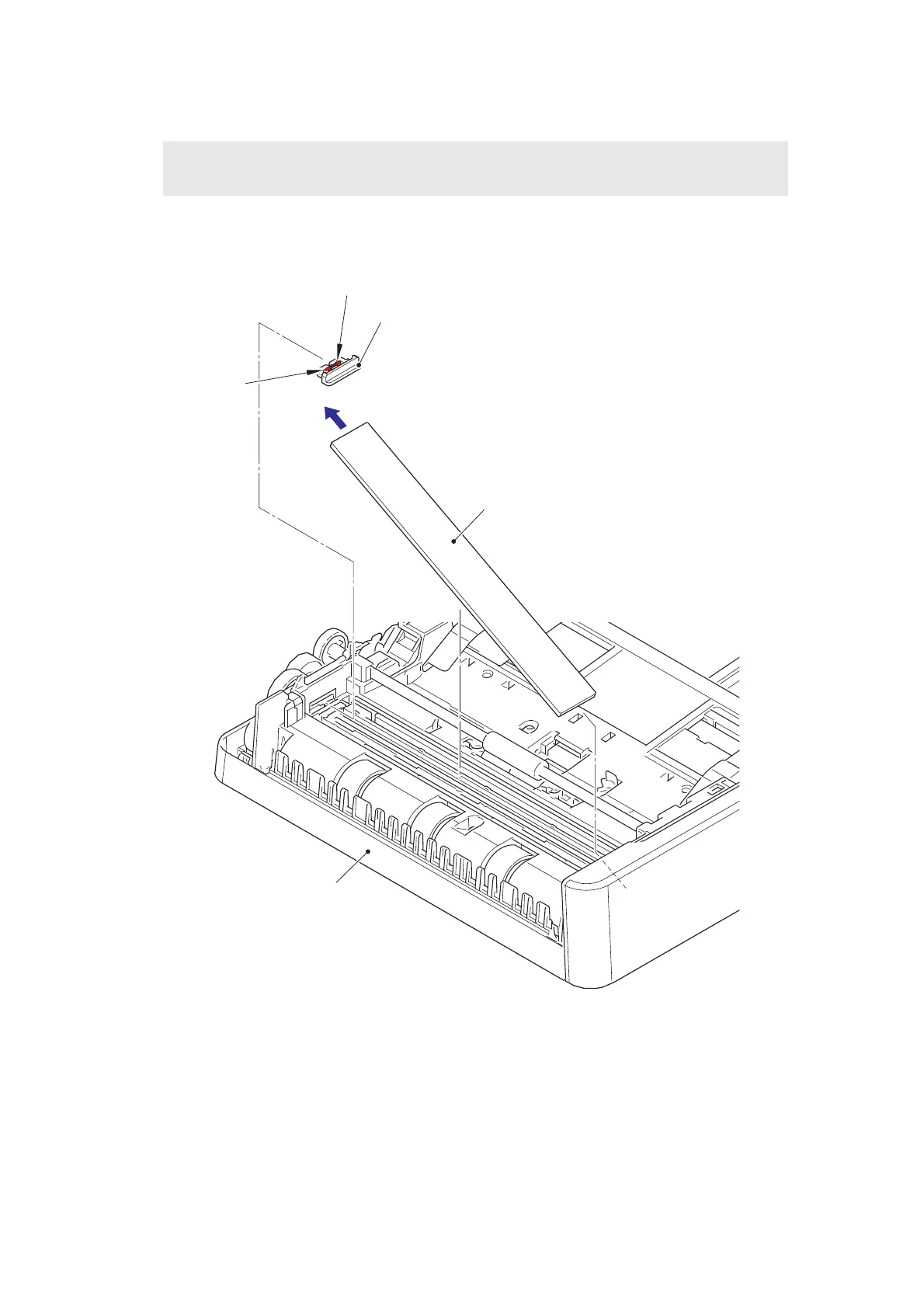

9.12.7 CIS Spacer, Second Side CIS Unit (Duplex scanning models only)

(1) Release the hooks to remove the CIS glass stopper from the ADF unit.

(2) Remove the scanner glass strip from the ADF unit.

Fig. 3-34

Note:

• Disassemble in a dust-free location.

Scanner glass strip

Hook

CIS glass stopper

ADF unit

Hook
