Brother MFC-7380

307 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

3-27

Confidential

9.4 Outer Chute ASSY

(1) Pull out the right side of the outer chute ASSY in the direction of the arrow A to remove

the boss of the outer chute ASSY, and remove the outer chute ASSY in the direction of

the arrow B.

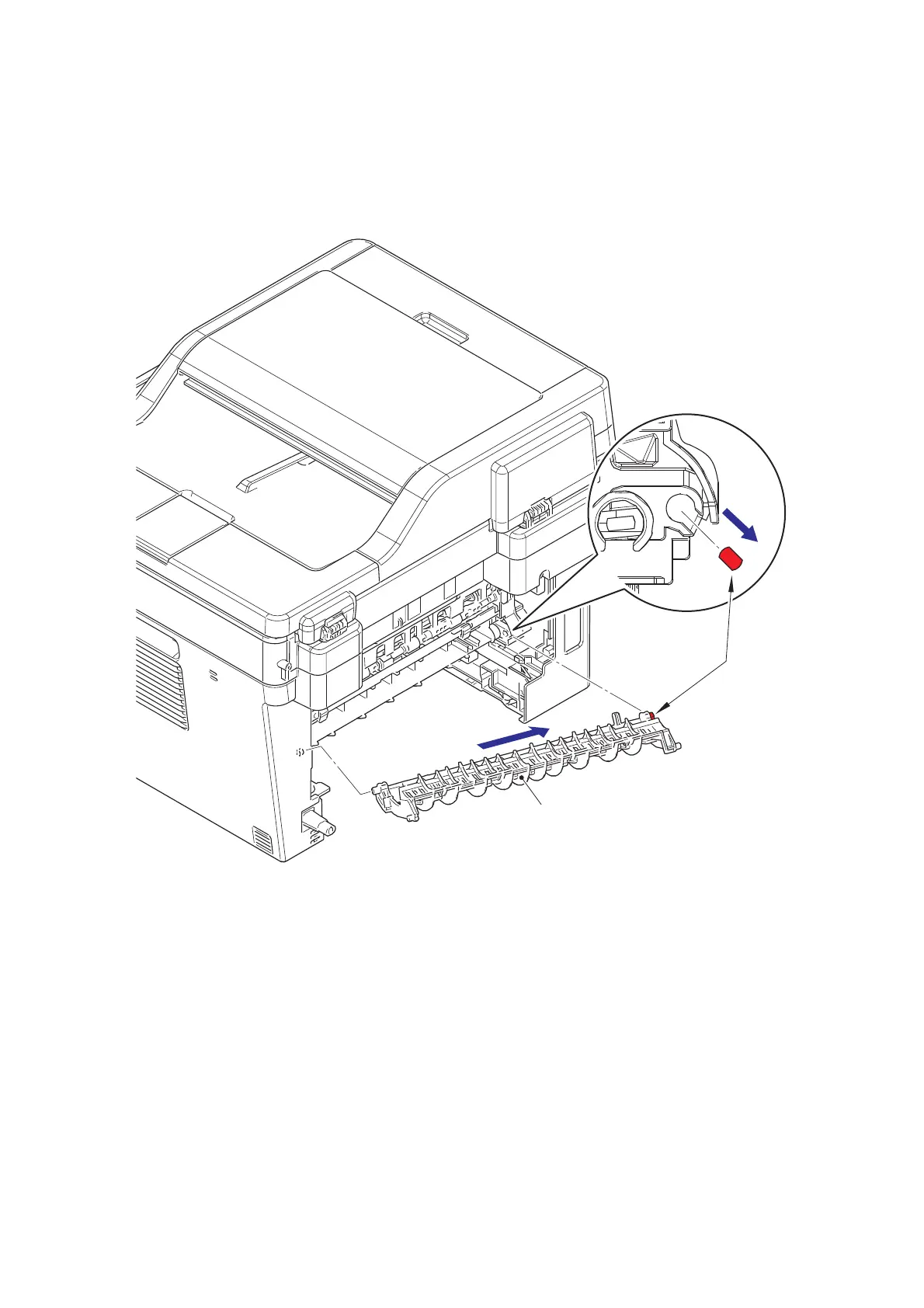

Fig. 3-12

Boss

Outer chute ASSY

A

B
