3-11

Confidential

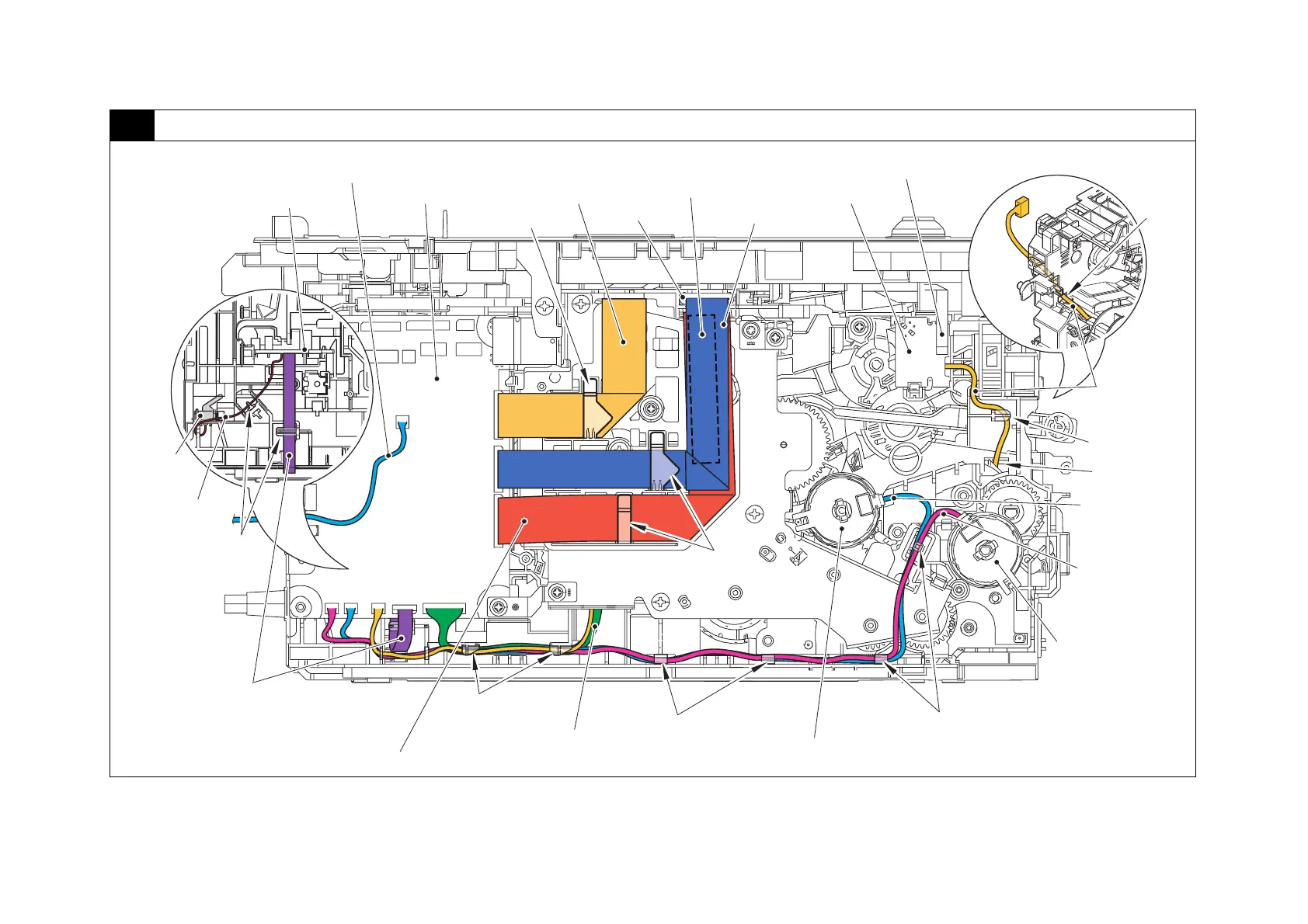

3 Left side of the machine

Harness colors are subject to change for some reason.

Flat cable sponge

Flat core

Laser unit flat cable

New toner sensor PCB ASSY

New toner sensor PCB flat cable

Paper feed

sensor harness

ASSY

(WH, BL, RD)

Guide

Registration

clutch harness

(WH)

T1 clutch

harness (BL)

T1 clutch

Guides

Registration clutch

Guide

Main motor flat cableMain PCB ASSY

HVPS flat cable

Guides

LVPS harness (WH, BR)

Guides

Hole

Guides

Eject sensor PCB flat cable

Eject sensor PCB ASSY

<Rear side of

the main PCB>

Hole

Hook harness (BK)

Back cover/duplex

tray sensor harness

(RD, BL)

Back cover/

duplex tray

sensor
