Brother MFC-7380

To Next Page

To Previous Page

3-14

Confidential

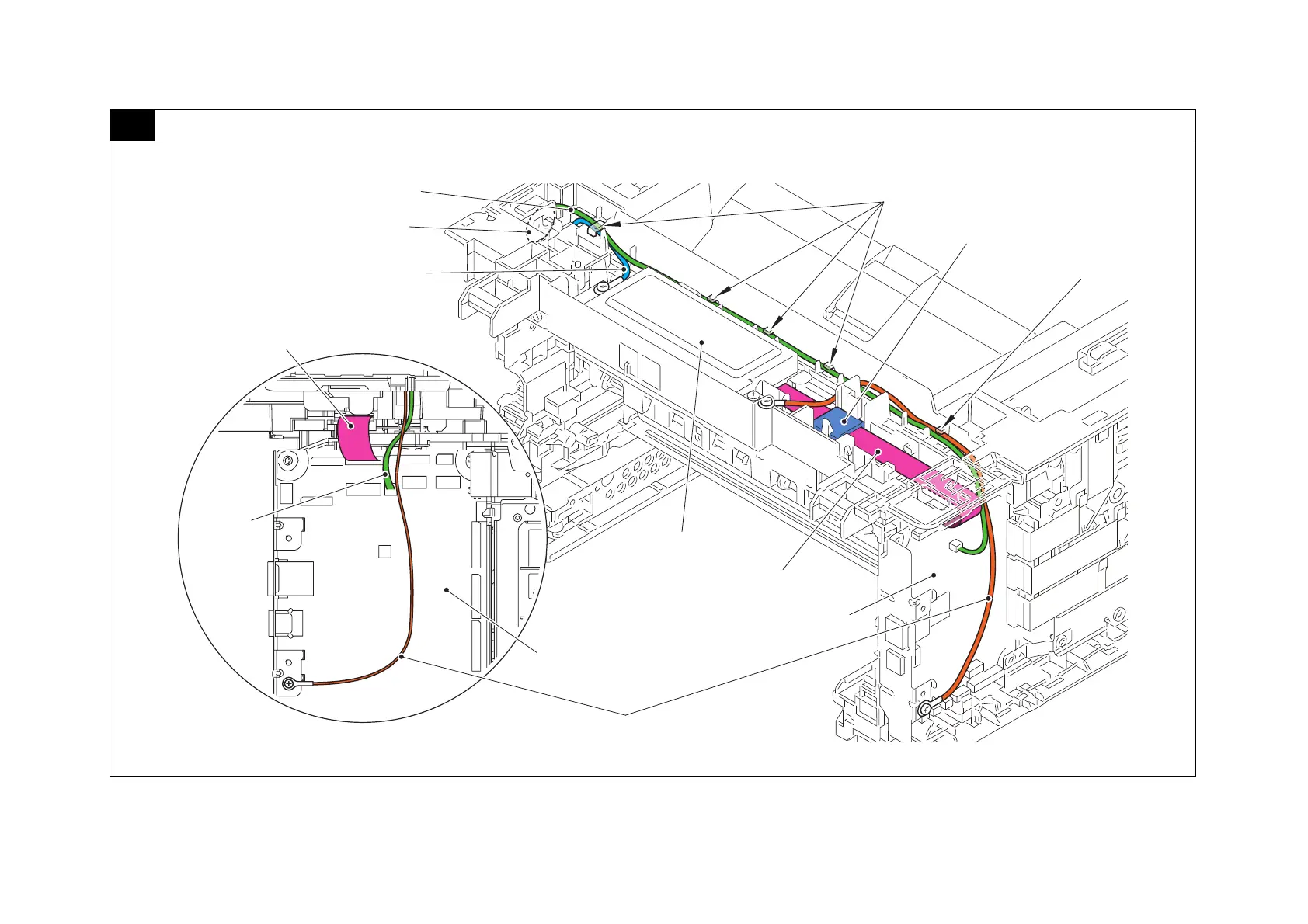

6 Speaker unit, Modem (Main PCB side)

Harness colors are subject to change for some reason.

Modem FG harness main (YW)

Main PCB ASSY

Modem

Modem flat cable

Main PCB ASSY

Speaker

harness

(RD, BK)

Modem flat cable

Modem FG harness LVPS (GN)

Speaker unit

Speaker harness (RD, BK)

Guides

Flat core

Guide
